Запчасти Case IH BR160 (231) - BRX160 ROTARY BROOM - EXPLODED VIEW

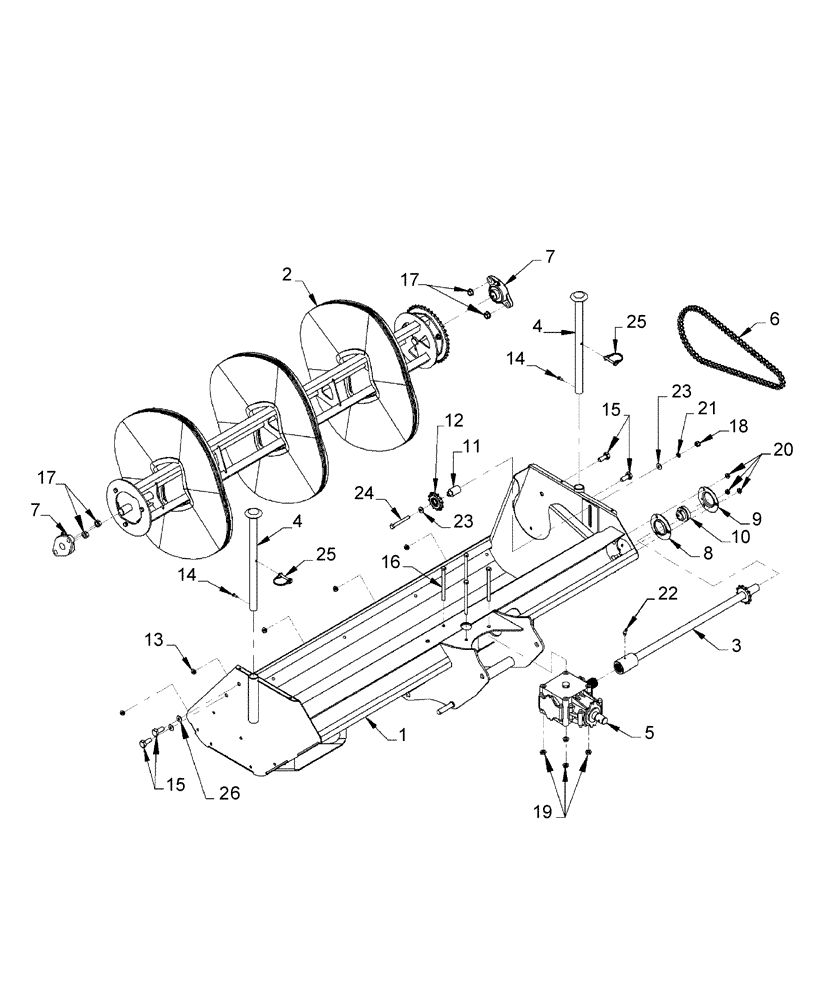

Схема запчастей Case IH BR160 - (231) - BRX160 ROTARY BROOM - EXPLODED VIEW
3
16
23
2
25
8
15
13
26
4
7
22
10
14
9
25
18
24
21
14
12
11
7
23
19
20
4
17
5
15
6
1
17

Артикул

Название

Примечание

Количество

1

CSE667806

HOUSING

Broom Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Support & Brush Assembly Refer to Fig. 232 for Breakdown

1шт.

3

BER667807

DRIVE SHAFT

Drive Shaft

1шт.

4

BER667212

STAND

Parking Stand

2шт.

5

BER4500053

GEARBOX

Gearbox CCW

1шт.

5

BER4500085

GEARBOX

Gearbox CCW

1шт.

Used On & ASN RAD014052

1шт.

6

BER661666

CHAIN

#50 HD & 72 Links (includes connecting link)

1шт.

7

BER4300025

BALL BEARING

2шт.

8

BER4300030

FLANGE

3 bores with grease groove

1шт.

9

BER4300031

FLANGE

3 bores with grease fitting & groove

1шт.

10

BER4300038

BEARING

1" with setscrew

1шт.

11

BER667787

SPACER

Idler Spacer

1шт.

12

BER655426

DRIVING SPROCKET

Idler Sprocket H50A12

1шт.

13

BER3400009

CAP

Cap 3/8" for 1/16" to 1/8" thick material

5шт.

14

PL

PROCURE LOCALLY

Sheet Metal Screw 10NC pan head square socket #2

2шт.

15

PL

PROCURE LOCALLY

Bolt, Hex 1/2" x 1 1/4"

4шт.

16

PL

PROCURE LOCALLY

Bolt, Hex., 3/8" x 5"

4шт.

17

PL

PROCURE LOCALLY

Nut, Serrated Flange 1/2"

4шт.

18

PL

PROCURE LOCALLY

Nut, Nylon Insert 3/8"

1шт.

19

PL

PROCURE LOCALLY

Nut Serrated Flange 3/8"

4шт.

20

PL

PROCURE LOCALLY

Nut Serrated Flange 5/16"

3шт.

21

PL

PROCURE LOCALLY

Lockwasher 3/8"

1шт.

22

BER657749

LUBE NIPPLE

Grease Fitting 1/4" 45"

1шт.

23

PL

PROCURE LOCALLY

Flat Washer 5/16"

2шт.

24

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 3"

1шт.

25

BER1900006

PIN, SPLIT (COTTER)

PIN, COTTER 1/4"

2шт.

26

PL

PROCURE LOCALLY

Flat Washer, 1/2"

4шт.
