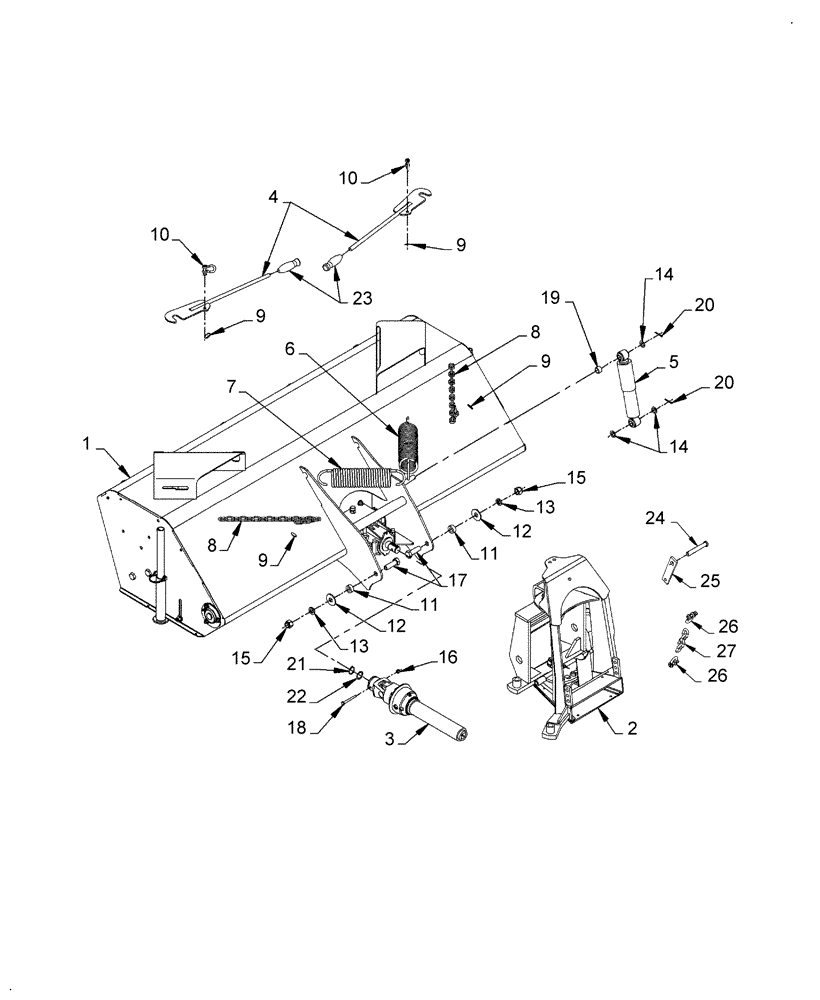

Запчасти Case IH BR160 (230) - BRX160 ROTARY BROOM

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Female Hitch & Pivot Assembly With Manual Angling

1шт.

3

BER4700118

PTO SHAFT

Female Driveline S6 x 12 5/8" Connection 1"

1шт.

4

BER667153

ADJUSTING PLATE

Engagement Lever

2шт.

5

BER4200019

SHOCK ABSORBER

Shock Absorber 8 5/8" compressed x 4 1/8" stroke

1шт.

6

BER2200008

TENSION SPRING

Tension Spring

1шт.

7

BER2200007

TENSION SPRING

Tension Spring

1шт.

8

BER2300016

CHAIN

Chain 3/16"

2шт.

9

BER1900009

PIN, SPLIT (COTTER)

PIN, COTTER

4шт.

10

BERA10368

SHACKLE

Pin, Clevis 1/4" x 5/16"

2шт.

11

BER667172

BUSHING

Bushing, Pivot

2шт.

12

PL

PROCURE LOCALLY

Flat Washer 5/8"

2шт.

13

PL

PROCURE LOCALLY

Lockwasher, 5/8"

2шт.

14

PL

PROCURE LOCALLY

Flat Washer 5/8"

3шт.

15

PL

PROCURE LOCALLY

Nut, Nylon Insert 5/8"

2шт.

16

PL

PROCURE LOCALLY

Nut, Nylon Insert 1/4"

1шт.

17

PL

PROCURE LOCALLY

Bolt, Hex 5/8" x 2" GR 5

2шт.

18

BER0100248

BOLT

Bolt, Hex 1/4" x 2 1/2" GR 8

1шт.

19

BER667732

SPACER

Spacer .685 ID x 9/16 Long x .875 OD

1шт.

20

PL

PROCURE LOCALLY

Cotter Pin 1/8" x 1"

2шт.

21

BER655087

RING

Snap

1шт.

22

BER4300065

SNAP RING

Snap Ring, Interior 23.5mm dia Int. x 1.08 mm

1шт.

23

BER656797

HANDLE GRIP

Plastic 1/2" x 3" Long

2шт.

24

BER666598

PIN

3/4"X5" Long

1шт.

Used On & ASN RAD014037

1шт.

25

BER666597

RETAINING PLATE

for Chain

1шт.

Used On & ASN RAD014037

1шт.

26

BERA10381

Clevis 3/8"x7/16" pin

2шт.

Used On & ASN RAD014037

1шт.

27

BER2300018

Chain, 3/8"x5-13/16" Long

1шт.

Used On & ASN RAD014037

1шт.
