(515) - MID PTO DRIVE KIT (FRONT MOUNT) - 717761006

Запчасти Case IH BR160 (515) - MID PTO DRIVE KIT (FRONT MOUNT) - 717761006

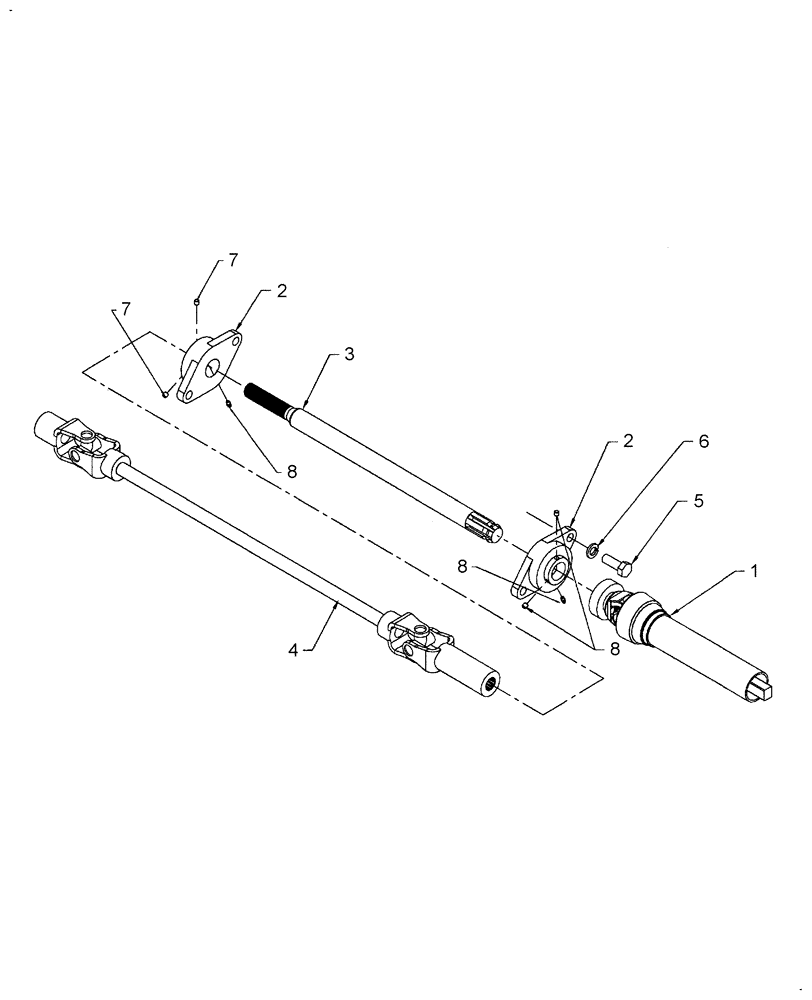

Схема запчастей Case IH BR160 - (515) - MID PTO DRIVE KIT (FRONT MOUNT) - 717761006
8
7
5
2
2
8
1
4
7
6
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

BER4300019

BALL BEARING

1 -3/8"

2шт.

1

BER4700030

DRIVE ASSY.

Male Half

1шт.

3

BER4700200

PTO SHAFT

Output, 1 -3/8"

1шт.

4

BER4700031

DRIVE ASSY.

Fixed

1шт.

5

BER0200040

BOLT

Bolt, Hex, 14mm x 1.55mm x 40mm

4шт.

6

BER1200014

WASHER

Washer, Lock, 14mm

4шт.

8

BER0500024

SCREW

Screw, Set, 5/16" x 5/16"

4шт.

9

BER654106

FITTING

Grease, 1/4"

2шт.
