Запчасти Case IH BR160 (420) - MALE QUICK HITCH & SUBFRAME - 715423056, 716437056

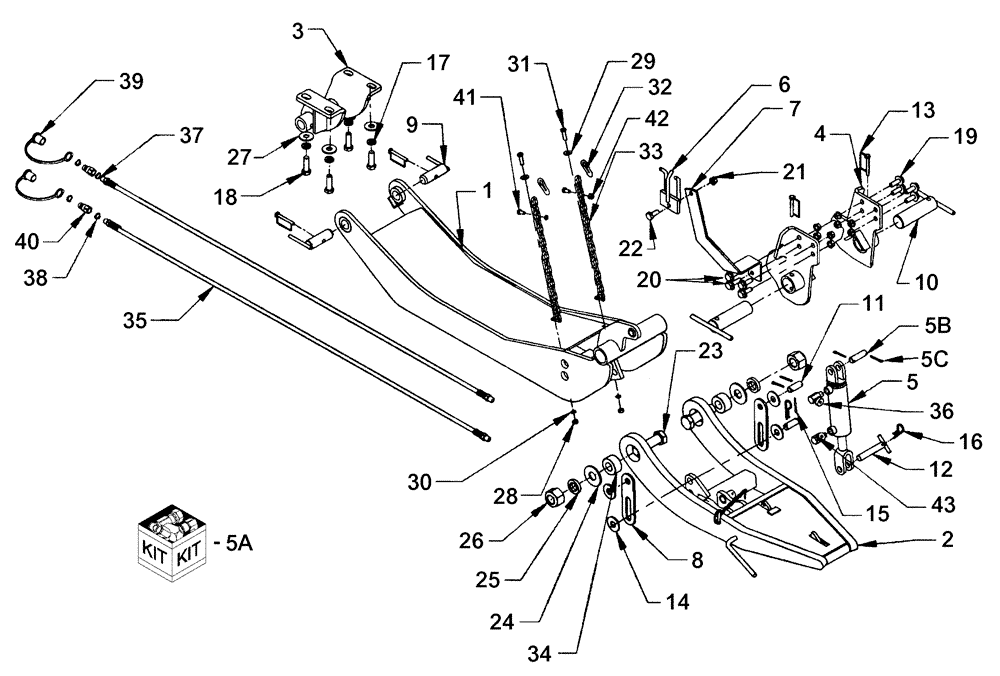

Схема запчастей Case IH BR160 - (420) - MALE QUICK HITCH & SUBFRAME - 715423056, 716437056
5c
23
12
31
17
3
25
5a
42
33
34
10
30
36
39
26
37
11
22
4
21
19
40
7
6
38
1
41
28
9
8
29
5b
32
14
16
24
43
2
13
15
5
27
20
35
18

Артикул

Название

Примечание

Количество

1

BER666947

BRACKET

FRAME

1шт.

2

BER666954

HITCH

Quick, Male Refer to Fig. 420.01 for Breakdown

1шт.

3

BER666949

BRACKET

SUPPORT, Rear

1шт.

4

BER666950

BRACKET

SUPPORT, Front

1шт.

5

BER665433

HYDRAULIC CYLINDER,Double Acting, 127mm Stroke

2" x 5"

1шт.

5a

BER665434

SEAL KIT

Kit, Seal

1шт.

5b

BER665235

PIN

Pins, Attaching 3/4x2-1/2

2шт.

5c

PL

PROCURE LOCALLY

Pin, Cotter 3/16"X1-1/2"

6шт.

6

BER666925

SUPPORT

SUPPORT, Hose

1шт.

7

BER666955

SUPPORT

PLATE, Hose Support

1шт.

8

BER666953

SUPPORT

STOP

2шт.

9

BER666952

SUPPORT

PIN, Support

2шт.

10

BER666456

HITCH PIN

PIN, "T", 1 -3/4"

2шт.

11

BER666956

BRACKET

PIN, Stop

2шт.

12

BER666457

HITCH PIN

PIN, "T", 3/4"

1шт.

13

BER1900008

PIN

Sq. Lock, 3/8" x 2 -1/2"

4шт.

14

PL

PROCURE LOCALLY

Washer, Flat, 13/16"

4шт.

15

BER1800004

COTTER PIN

Pin, Spring, 3/16" x 2"

1шт.

16

PL

PROCURE LOCALLY

Pin, Hair, 3mm x 65mm

2шт.

17

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

4шт.

18

BER0200050

BOLT

Bolt, Hex, 16mm x 50mm x 2mm

4шт.

19

BER0200110

BOLT

Bolt, Serrated Flange, 1/2" x 1 -1/2"

6шт.

20

BER0200101

BOLT

Bolt, Serrated Flange, 1/2" x 1 -3/4"

2шт.

21

BER0900046

NUT

Nut, Serrated Flange, 1/2"

9шт.

22

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/4"

1шт.

23

PL

PROCURE LOCALLY

Bolt, Hex, 1 -1/8" x 4"

2шт.

24

PL

PROCURE LOCALLY

Washer, Flat, 1 -1/4"

2шт.

25

PL

PROCURE LOCALLY

Washer, Lock, 1 -1/8"

2шт.

26

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1 -1/8"

2шт.

27

PL

PROCURE LOCALLY

Washer, Flat, 11/16"

4шт.

28

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

2шт.

29

PL

PROCURE LOCALLY

Washer, Flat, 7/16"

2шт.

30

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

2шт.

31

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1 -1/2"

2шт.

32

BER2000007

SPRING

HOOK, Spring, 1/4"

2шт.

33

BER666986

ROD

CHAIN, 3/16"

2шт.

34

BER666458

WASHER

BUSHING, Pivot

2шт.

35

BER3700054

HYDRAULIC HOSE

HOSE

2шт.

36

BER654557

ELBOW

90° - 3/8"X3/8"

2шт.

37

BER658205

RING

Identification - Blue

2шт.

38

BER658204

RING

Identification - Red

2шт.

39

BER658203

DUST CAP

3/8"

2шт.

40

BER658118

QUICK MALE COUPLING

3/8"

2шт.

41

PL

PROCURE LOCALLY

Bolt, Hex 3/8"X3/4"

2шт.

42

PL

PROCURE LOCALLY

Lock Nut, Nylon Insert 3/8"

2шт.

43

BER3900204

ELBOW

Restrictor, Flow .063 Hole, 90°

1шт.

Выбрано товаров: 46
