Запчасти Case IH BR160 (201) - FRONT WHEEL

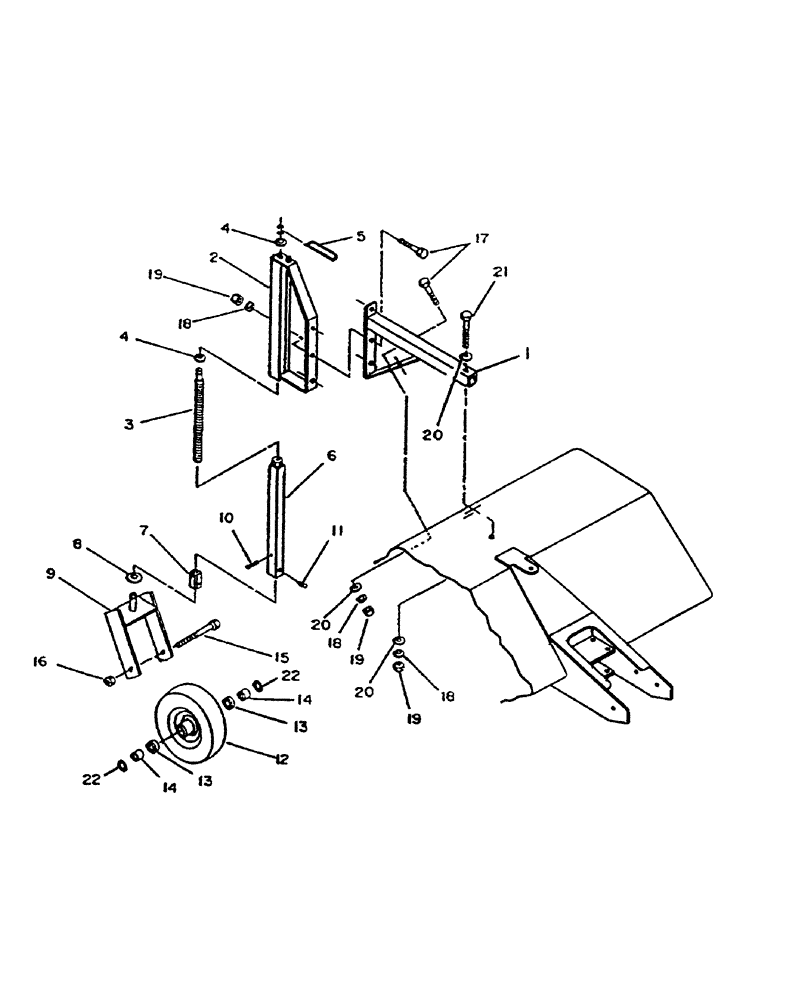

Схема запчастей Case IH BR160 - (201) - FRONT WHEEL
8
3
6
5
21
9
22
4
7
16
22
11
4
20
13
13
18
20
14
20
2
14
17
19
19
15
12
1
19
10
18
18

Артикул

Название

Примечание

Количество

1

CSE661755

SUPPORT

Front Wheel

1шт.

2

CSE660962

JACK

Adjustable

1шт.

3

BER660954

THREADED ROD

1шт.

4

PL

PROCURE LOCALLY

Washer, Flat, 9/16"

2шт.

5

BER660955

HANDLE

1шт.

6

BER660949

HOUSING

1шт.

7

BER660948

BUSHING

1шт.

8

PL

PROCURE LOCALLY

Washer, Flat, 13/16"

1шт.

9

CSE660951

BRACKET

1шт.

10

PL

PROCURE LOCALLY

Pin, Spring, 1/4" x 1 -1/2"

2шт.

11

BER654106

FITTING

Grease, 1/4"

1шт.

12

BER660953

WHEEL ASSY.

& Tire

1шт.

13

BER660975

BEARING

2шт.

14

BER660952

SHIM

1шт.

15

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 5 -1/2" GR5

1шт.

16

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 5/8"

1шт.

17

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1" GR5

5шт.

18

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

3шт.

19

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

3шт.

20

PL

PROCURE LOCALLY

Washer, Flat, 7/16"

6шт.

21

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 2 -1/4" GR5

1шт.

22

PL

PROCURE LOCALLY

Washer, Flat, 11/16"

3шт.

Выбрано товаров: 22
