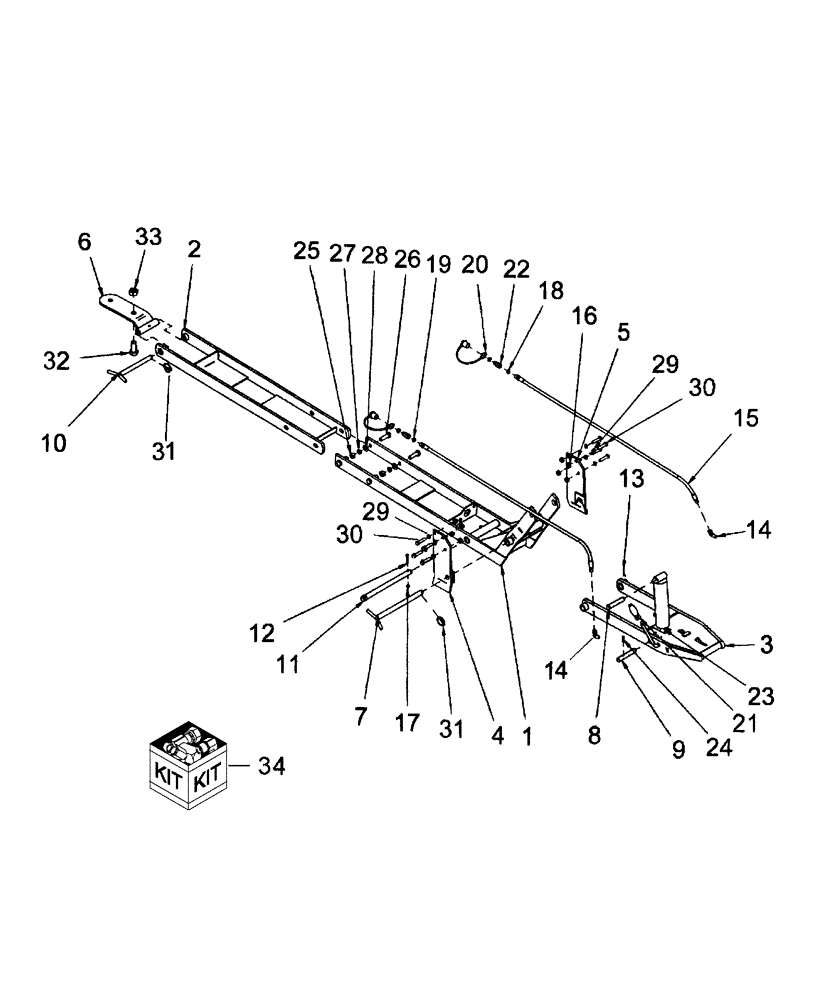

Запчасти Case IH BR160 (405) - MALE QUICK HITCH & SUBFRAME - 715423026

1

BER666515

FRAME

Front

1шт.

2

BER666516

FRAME

Rear

1шт.

3

BER666523

HITCH ASSY

QUICK, Male

1шт.

4

BER666518

PLATE

Lateral, RH

1шт.

5

BER666519

PLATE

Lateral, LH

1шт.

6

BER666517

FRAME

Drawbar

1шт.

7

BER666521

PIN

7/8" x 12 -1/2" L

1шт.

8

BER665009

PIN,19.05mm OD x 101.6mm L

3/4" x 4"

1шт.

9

BER658383

PIN

Cylinder

1шт.

10

BER666525

PIN

3/4" x 8 -3/4" L

1шт.

11

BER666522

PIN

7/8" x 13" L

1шт.

12

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 1 -3/4" GR5

1шт.

13

PL

PROCURE LOCALLY

Pin, Spring, 5/32" x 1 -1/4"

1шт.

14

BER655211

ELBOW

90°

2шт.

15

BER658325

FLEXIBLE HOSE

1/4" x 3/8" x 33" L

2шт.

16

BER0900033

NUT

Serrated Flange, M12 x 1.75

8шт.

17

PL

PROCURE LOCALLY

Nut, Lock Nylon Insert, 1/4"

1шт.

18

BER658204

RING

Identification - Red

2шт.

19

BER658205

RING

Identification - Blue

2шт.

20

BER658397

DUST CAP

3/8"

2шт.

21

BER656797

HANDLE GRIP

Plastic, 1/2" x 3"

1шт.

22

BER658118

QUICK MALE COUPLING

3/8"

2шт.

23

BER662363

CYLINDER,Double Acting, 158.75mm Stroke

2" x 6 -1/4"

1шт.

24

PL

PROCURE LOCALLY

Pin, Spring, 1/4" x 1 -1/4"

1шт.

25

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

4шт.

26

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 2" GR5

4шт.

27

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

4шт.

28

PL

PROCURE LOCALLY

Washer, Flat, 5/8"

4шт.

29

BER1200019

WASHER

Lock, 12mm

8шт.

30

PL

PROCURE LOCALLY

Bolt, Hex, M12 x 1.75 x 55mm GR8.8

8шт.

0200034

1шт.

31

PL

PROCURE LOCALLY

Pin, Linch, 3/16"

2шт.

32

PL

PROCURE LOCALLY

Bolt, Hex, 7/8" x 2" GR5

1шт.

33

PL

PROCURE LOCALLY

Locknut, Nylon Insert, 7/8"

1шт.

34

BER665027

SEAL KIT

Kit, Seals

1шт.
