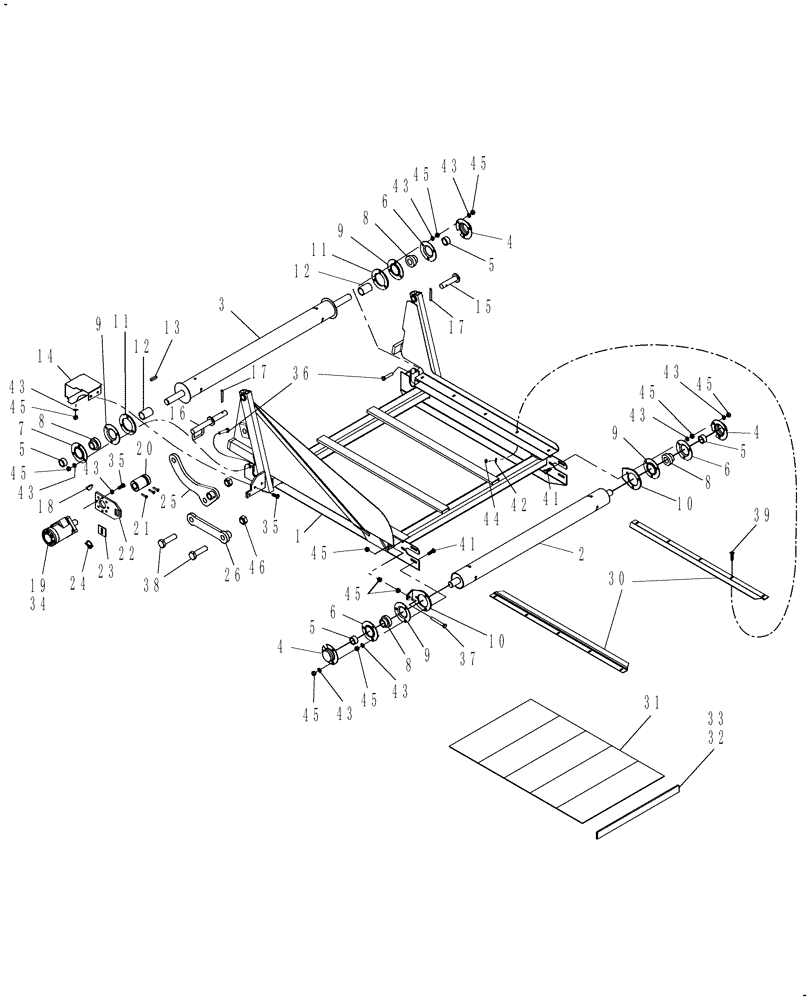

Запчасти Case IH CM212 (90.105.03[01]) - EXTENSION CONVEYOR, 2 FT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84243050

FRAME

2 FT

1шт.

2

84243054

ROLLER

Tightener

1шт.

3

84243055

ROLLER

Drive

1шт.

4

84243056

BEARING COVER

3шт.

5

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

4шт.

6

84243059

FLANGE

With Straight Zerk

3шт.

7

84230907

FLANGE

With 45 Deg Zerk

1шт.

8

134686

BALL BEARING,31.8 mm ID x 62 mm OD x 23.8 mm

4шт.

9

84243062

FLANGE

4шт.

10

84243064

TIGHTENER

2шт.

11

84241194

SPACER

2шт.

12

84243065

SHIELD

2шт.

13

Q1482

KEY,5/16" Sq x 1", Par

1шт.

14

84243067

PROTECTION PLATE

1шт.

15

84243068

PIN

1шт.

16

84243069

PIN

1шт.

17

38-12044

LOCK PIN,5/16" x 2 3/4", Slotted

2шт.

18

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

19

84230702

HYDRAULIC MOTOR

1шт.

20

84230705

COUPLING

1шт.

21

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

4шт.

22

84230701

ARM

1шт.

23

84230707

SPACER

1шт.

24

270184

LINCH PIN,6.35mm OD

1шт.

25

84243070

LINK

Long

1шт.

26

84243071

LINK

Short

1шт.

30

84243074

GUARD

1шт.

31

84243077

CONVEYOR BELT

1шт.

32

84230718

PIN

1шт.

33

84230719

CLIP

Clip. Conveyor Belt Lacing

1шт.

34

84230703

HYD PUMP REPAIR KIT

1шт.

35

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

36

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

6шт.

37

280626

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

38

88962

BOLT,Hex, 1" - 8 x 3 1/2", Gr 5

2шт.

39

84243252

SCREW,Oval, 1/4" - 20

Oval Head, 1/4-20 x 1-1/4"

10шт.

41

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

6шт.

42

80682

LOCK WASHER,1/4"

10шт.

43

80680

LOCK WASHER,3/8 0.381 CST ZND

27шт.

44

7770

NUT,Hex, 1/4 - 20, Cl 5

10шт.

45

9628503

NUT,3/8"-16, G5

29шт.

46

280286

NUT,1"-8, GB

2шт.
