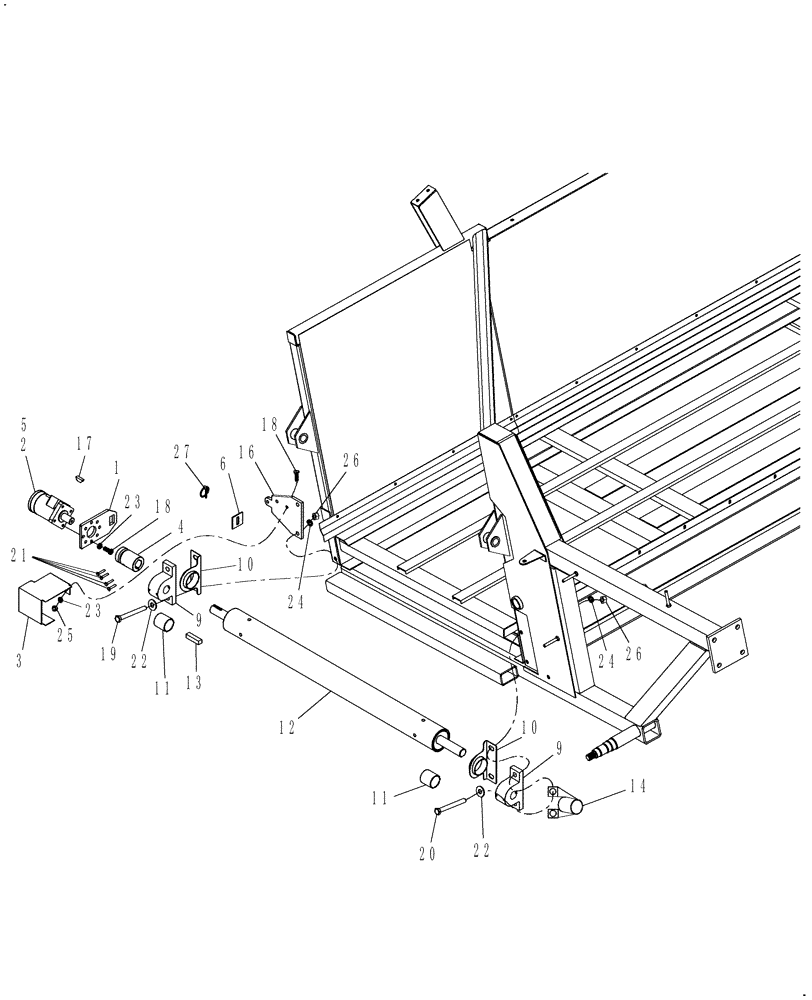

Запчасти Case IH CM212 (60.500.01) - CONVEYOR, RH, MAIN FRAME (60) - PRODUCT FEEDING

1

84230701

ARM

Torque

1шт.

2

84230702

HYDRAULIC MOTOR

1шт.

3

84233603

PROTECTION PLATE

Motor

1шт.

4

84230705

COUPLING

1шт.

5

84230703

HYD PUMP REPAIR KIT

Services Ref. 2

1шт.

6

84230707

SPACER

1шт.

9

84230711

PILLOW BLOCK

2шт.

10

84230712

GUARD

Anti Wrap

2шт.

11

84230713

SPACER

2шт.

12

84230714

ROLLER

1шт.

13

Q42

KEY,5/16" Sq x 1 3/8", Par

1шт.

14

84230716

PROTECTION PLATE

1шт.

16

84230755

ARM

Male Torque

1шт.

17

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

19

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

20

280376

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

2шт.

21

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

4шт.

22

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

25

9628503

NUT,3/8"-16, G5

2шт.

26

280431

NUT,1/2"-13, G5

4шт.

27

270184

LINCH PIN,6.35mm OD

1шт.
