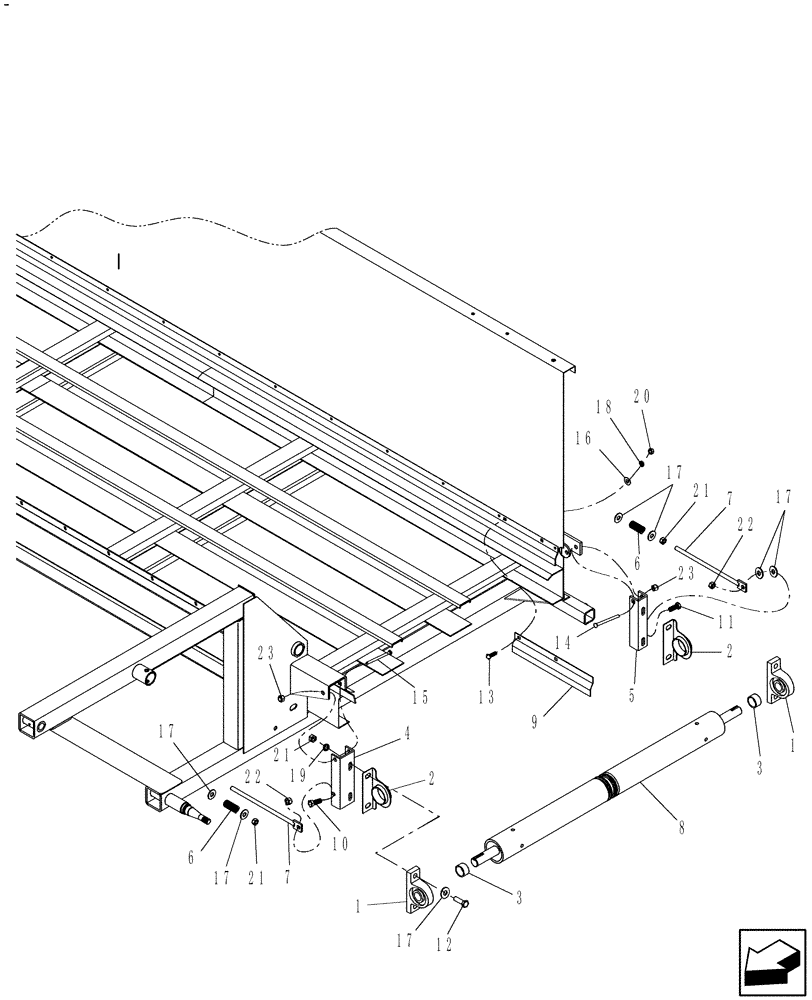

Запчасти Case IH CM212 (60.500.01[02]) - CONVEYOR, LH, MAINFRAME (60) - PRODUCT FEEDING

1

84230711

PILLOW BLOCK

2шт.

2

84230712

GUARD

Anti Wrap

2шт.

3

84230713

SPACER

Head

2шт.

4

84230747

ARM

Tightener

1шт.

5

84230748

ARM

Back Tightener

1шт.

6

84230750

SPRING

Compression, Blue

2шт.

7

84230751

THREADED ROD

2шт.

8

84230753

CONVEYOR ROLLER

1шт.

9

84230772

EXTENSION

Skirt

1шт.

10

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

11

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

12

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

13

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

14

280818

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

1шт.

15

87495288

CARRIAGE BOLT

1/2" x 4", GR 5

1шт.

16

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

10шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

20

9628503

NUT,3/8"-16, G5

2шт.

21

280431

NUT,1/2"-13, G5

6шт.

22

86632537

THIN NUT,1/2"-13, GB, Thin

2шт.

23

88871

NUT,1/2"-13, GC

2шт.
