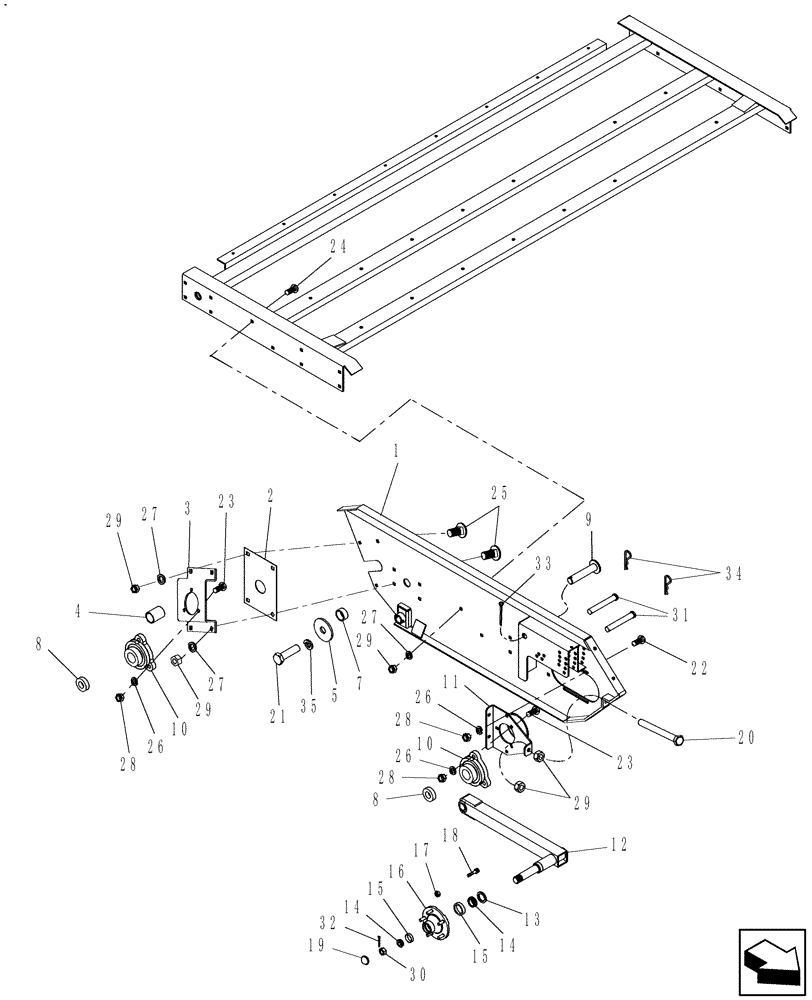

Запчасти Case IH CM212 (60.220.02[02]) - PICKUP FRAME, RH AND GAUGE WHEEL 12FT (60) - PRODUCT FEEDING

1

84236560

PANEL

RH

1шт.

2

84230900

PANEL

Side Slot Plate

1шт.

3

84236580

BRACKET

Bearing, RH

1шт.

4

84236581

SPACER

1шт.

5

84230953

WASHER

1шт.

7

84230952

BUSHING

Pivot

1шт.

8

84230908

COLLAR

2шт.

9

84230909

PIVOT PIN

1шт.

10

84230913

BEARING HOUSING

And 3 Bolt Housing

2шт.

11

84230921

BRACKET

RH, Front Roller

1шт.

12

84230938

ARM

Gauge Wheel

2шт.

13

97859C1

SEAL

2шт.

14

536264

BEARING CONE,26.98mm ID x 14.73mm W

4шт.

15

132709

BEARING CUP,50.29mm OD x 10.67mm W

4шт.

16

84230942

HUB

2шт.

17

29790

NUT,1/2" - 20

10шт.

18

109087A1

WHEEL BOLT

Wheel

10шт.

19

74771C1

CAP

Hub

2шт.

20

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

21

16505

BOLT,Hex, 1" - 8 x 2 1/2", Gr 5, Full Thd

1шт.

22

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

2шт.

23

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

6шт.

24

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

9шт.

25

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

26

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

13шт.

28

9628503

NUT,3/8"-16, G5

8шт.

29

280431

NUT,1/2"-13, G5

15шт.

30

427652

SLOTTED NUT,1"-14, G5

2шт.

31

56764

GUIDE PIN

2шт.

32

88350

COTTER PIN,5/32" x 1-1/2"

2шт.

33

87400

COTTER PIN,3/16" x 2"

1шт.

34

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

35

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.
