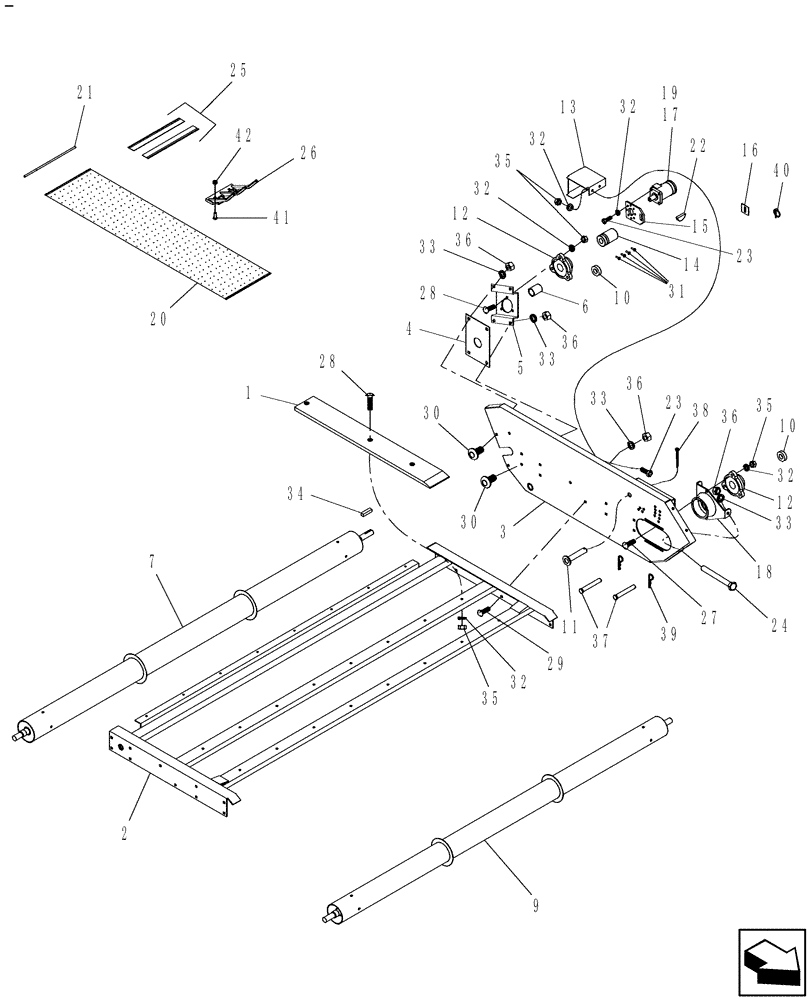

Запчасти Case IH CM212 (60.220.02[01]) - PICKUP FRAME, LH 12FT (60) - PRODUCT FEEDING

1

84230894

SLIDE

8шт.

2

84236563

FRAME

Pickup, 12 FT

1шт.

3

84236565

SIDE PANEL

LH

1шт.

4

84230900

PANEL

Side Slot Plate

1шт.

5

84236583

BRACKET

Bearing, LH

1шт.

6

84236581

SPACER

1шт.

7

84236566

ROLLER

Head Drive, 12FT

1шт.

9

84236573

ROLLER

Front Idler

1шт.

10

84230908

COLLAR

2шт.

11

84230909

PIVOT PIN

1шт.

12

84230913

BEARING HOUSING

And 3 Bolt Housing

2шт.

13

84236582

PROTECTION PLATE

1шт.

14

84230705

COUPLING

1шт.

15

84230701

ARM

1шт.

16

84230707

SPACER

1шт.

17

84231013

HYDRAULIC MOTOR

Pickup

1шт.

18

84230923

BRACKET

LH, Front Roller

1шт.

19

84230703

HYD PUMP REPAIR KIT

Services Ref. 17

1шт.

20

84230929

CONVEYOR BELT

4шт.

21

84230936

PIN

4шт.

22

47471

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

24

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

25

84230932

KIT

Dutchman Repair, Services Ref. 20

1шт.

26

84230933

TOOTH

Pickup, Plastic

390шт.

27

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

2шт.

28

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

30шт.

29

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

9шт.

30

280240

SCREW,Sl Fil Hd, 5/16" - 18 x 3/4"

4шт.

31

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

4шт.

32

80680

LOCK WASHER,3/8 0.381 CST ZND

38шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

34

Q42

KEY,5/16" Sq x 1 3/8", Par

1шт.

35

9628503

NUT,3/8"-16, G5

34шт.

36

280431

NUT,1/2"-13, G5

14шт.

37

56764

GUIDE PIN

2шт.

38

87400

COTTER PIN,3/16" x 2"

1шт.

39

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

40

270184

LINCH PIN,6.35mm OD

1шт.

41

84230934

BOLT

780шт.

42

86562216

NUT,Keps, w/LW,1/4"-20

780шт.
