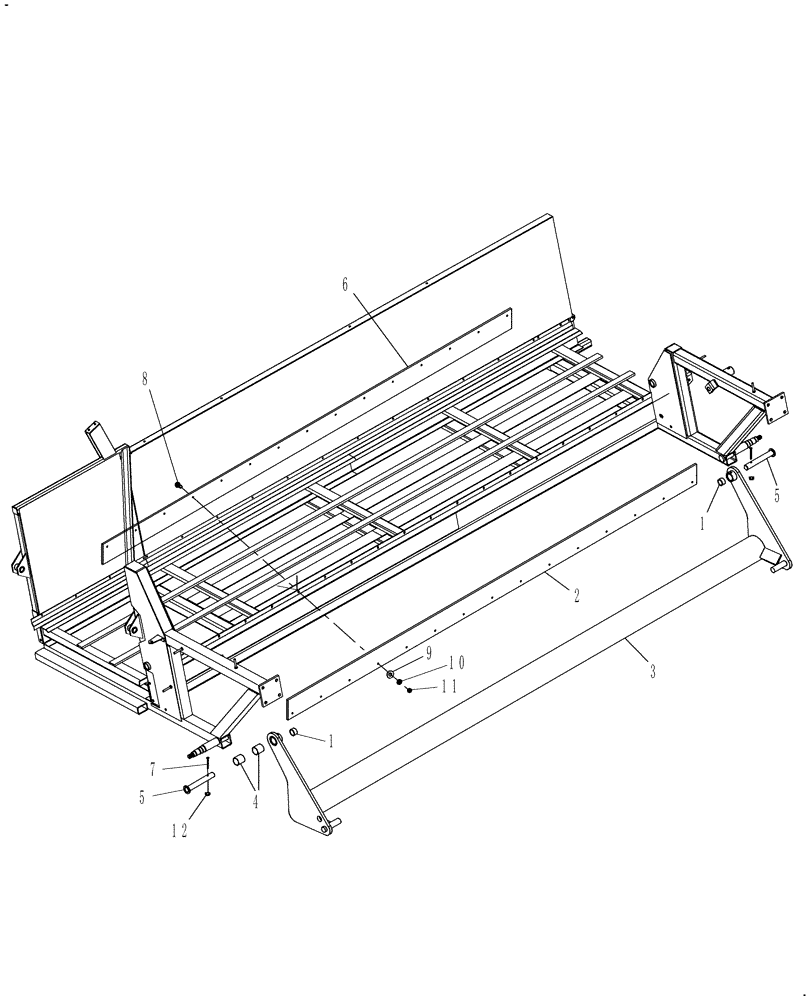

Запчасти Case IH CM212 (60.220.01[02]) - CURTAIN, 12 FT PICKUP LIFTER ASSY (60) - PRODUCT FEEDING

1

84230713

SPACER

2шт.

2

84233583

BELT

1шт.

3

84233581

PICK-UP

Lifter, 12FT

1шт.

4

84230892

BUSHING

1-1/4" x 2"

4шт.

5

84230893

PIN

2шт.

6

84233584

SKIRT

Curtain, 12FT

1шт.

7

2485

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1/4"-20 x 3"

2шт.

8

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

19шт.

9

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

19шт.

10

80682

LOCK WASHER,1/4"

19шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

19шт.

12

280129

NUT,1/4"-20

2шт.
