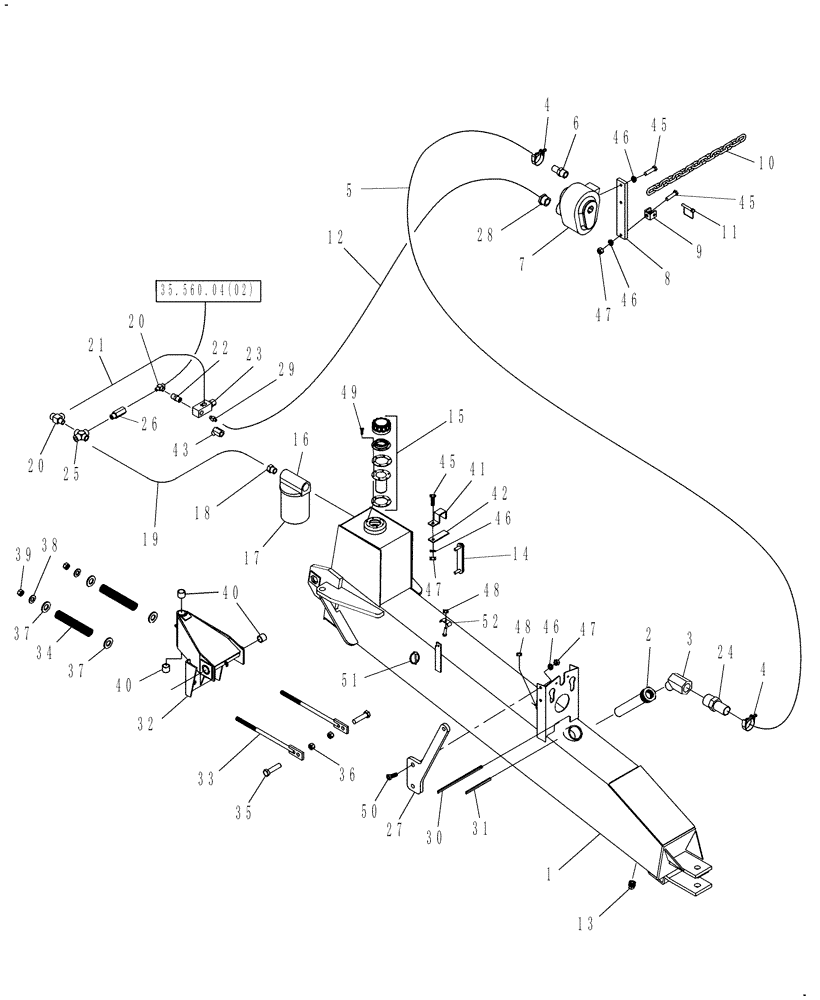

Запчасти Case IH CM212 (35.560.04[01]) - HYDRAULIC DRIVE GROUP, PTO (35) - HYDRAULIC SYSTEMS

2

84243302

SUCTION PIPE

1шт.

3

86595504

ELBOW

45 Deg. 20MP-20

1шт.

4

86634186

HOSE CLAMP,32mm - 54mm

2шт.

5

84243305

HOSE,46.00 mm

1шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

7

84243307

HYDRAULIC PUMP

PTO

1шт.

8

84243308

ARM

Torque

1шт.

9

84243309

YOKE

1шт.

10

196348

CHAIN,823.91mm L

1шт.

11

283978

PIN,9.53mm OD

1шт.

12

84243311

HYDRAULIC HOSE,0.74" ID x 122.00"

3/4" SAE x 1/2" MP

1шт.

13

80788

MAGNETIC PLUG

3/4"

1шт.

14

BN322594

GAUGE

Sight With Temperature

1шт.

15

614162

BREATHER

1шт.

16

84243315

BASE

1шт.

17

70203C2

HYDRAULIC OIL FILTER

1шт.

18

217-1031

REDUCER,3/4" - 14 NPT x 1/2" - 14 NPT

1шт.

19

84213326

HYDRAULIC HOSE

1/2" x 19", 1/2MP x 1/2MPX

1шт.

20

617267

TEE,1/2"-14 Female x 1/2"-14 Male Run

2шт.

21

84243318

HYDRAULIC HOSE,0.50" ID x 10.50"

1/2MP x 1/2MPX - 90 deg.

1шт.

22

86637713

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

1шт.

23

84243319

VALVE PRESSURE RELIE

1шт.

24

86643479

HYD CONNECTOR

Beaded to 1-1/4" NPTF

1шт.

25

217-1203

4 WAY CONNECTION,Female, 1/2"-14

1шт.

26

84231020

CHECK VALVE

1/2"

1шт.

27

84243322

HOLDER

Pump

1шт.

28

86550731

REDUCER

1шт.

29

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

Oil Return

1шт.

30

84243324

GROMMET

Hole

1шт.

31

84243325

GROMMET

Slot

1шт.

32

84243326

PIVOT

Spring Assist

1шт.

33

84243327

ADJUSTMENT ROD

Spring

2шт.

34

84243328

SPRING

2шт.

35

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

36

85700693

NUT,5/8" - 11, Gr C

2шт.

37

84243332

RETAINER

4шт.

38

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

39

86639566

NUT,5/8"-11, GB

2шт.

40

84233574

BUSHING

1" x 1-1/4" x 2"

4шт.

41

84243335

CLAMP

1шт.

42

84243336

BASE

1шт.

43

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

1шт.

45

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

46

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

47

9628503

NUT,3/8"-16, G5

4шт.

48

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

49

87826

SCREW,Slotted Truss Hd, #10 - 32 x 1"

6шт.

50

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

51

270184

LINCH PIN,6.35mm OD

1шт.

52

84218946

BRACKET

Hose

1шт.
