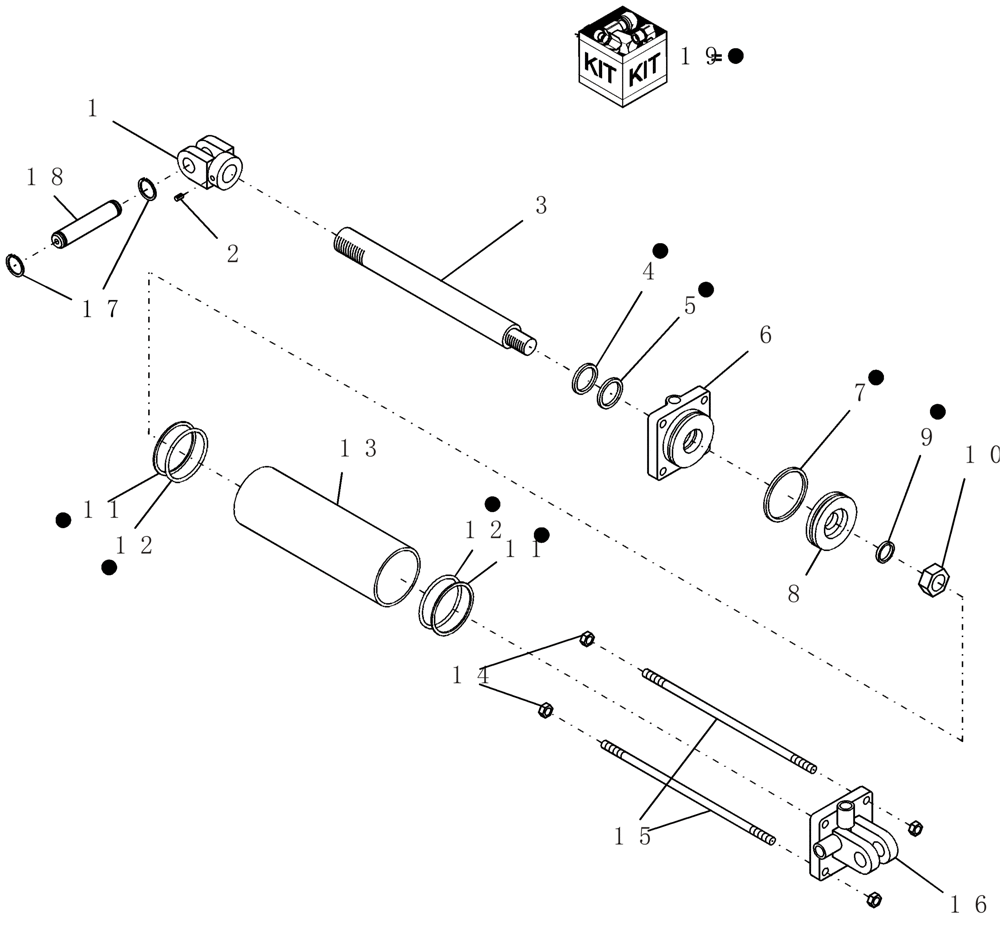

Запчасти Case IH CM212 (35.560.02[01]) - HYDRAULIC LIFT CYLINDER 2 X 8 (35) - HYDRAULIC SYSTEMS

8176

HYDRAULIC CYLINDER,28.57mm Rod, 203.2mm Stroke

2" x 8" Monarch, 2500 psi, with pins

1шт.

1

7997

CLEVIS

1" pin, 1 1/8"-12 Rod

1шт.

2

86624120

SET SCREW,3/8" - 16 x 3/8"

1шт.

3

7999

SHAFT

1 1/8"-12

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER

1шт.

5

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

6

8178

CAP

Cylinder Rod End 2" Dia x 1 1/8" Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING PISTON

1шт.

8

3977

PISTON

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING ROD

1шт.

10

425038A1

NUT

3/4"-16

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING BACKUP

2шт.

C: To Case Drain, see Fig. 35.560.04(02)

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

2шт.

13

3981

HYD TUBE

Cylinder 2" x 8" Monarch

1шт.

14

9628503

NUT,3/8"-16, G5

8шт.

15

87409488

THREADED TIE-ROD

3/8"-16

4шт.

16

8177

CLEVIS

Cylinder End 2" Dia

1шт.

17

136-62

HAIR PIN COTTER

Hairpin External 3/4" ID x 2"

4шт.

18

1945

PIN

Cylinder, 1 x 3 Snap Ring Groove

2шт.

19

8179

SEAL KIT

1шт.
