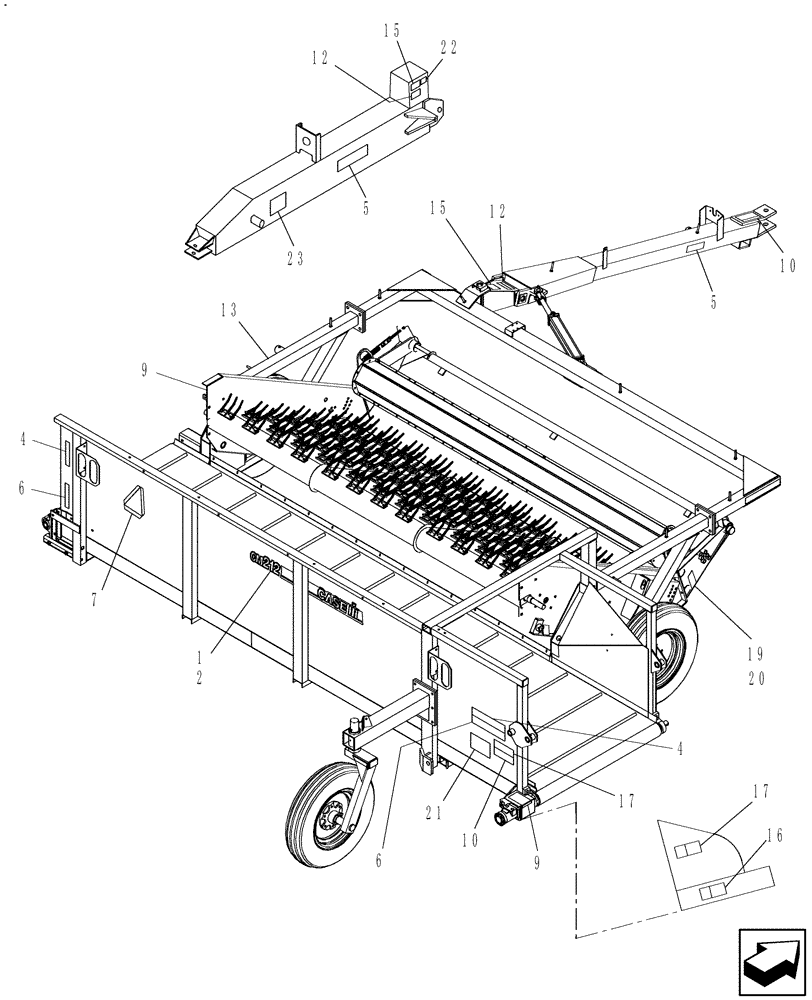

Запчасти Case IH CM209 (90.108.01[01]) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

84247460

DECAL KIT

CM209-CM212, Contains Ref. 1 thru 21 except 14

1шт.

On This Figure 90.108.01(01) & (02)

1шт.

1

84241000

DECAL

CM212 REAR CIH

1шт.

2

84240997

DECAL

CM209 REAR CIH

1шт.

4

86547781

REFLECTOR,RED

Tape, Red Retroreflective

1шт.

5

86547782

REFLECTOR,YELLOW

Tape, Yellow Retro Reflective

2шт.

6

86547783

REFLECTOR,Tape, Red Orange

Tape, Red-Orange Fluorescent

2шт.

7

86547711

DECAL,SMV

SMV Emblem

1шт.

9

84253208

WARNING DECAL

Do Not Remove Shields

2шт.

9

84253380

WARNING DECAL

Do Not Remove Shields

2шт.

French

1шт.

10

84253202

WARNING DECAL

Do Not Go Near Leaks

3шт.

10

84253390

WARNING DECAL

Do Not Go Near Leaks

3шт.

French

1шт.

12

84253222

DANGER DECAL

Shut Engine Completely Off Before Adjusting

2шт.

12

84253394

DANGER DECAL

Shut Engine Completely Off Before Adjusting

2шт.

French

1шт.

13

84253233

DECAL

Jack Storage Position

1шт.

15

86624301

WARNING DECAL

Before Operating Machine, Read Operator's Manual

1шт.

15

86624302

WARNING DECAL

Before Operating Machine, Read Operator's Manual

1шт.

French

1шт.

16

84253223

DANGER DECAL

Stay Clear of Extension when Raising or Lowering #12502A

2шт.

16

84253393

DANGER DECAL

Stay Clear of Extension when Raising or Lowering #12502A

2шт.

French

1шт.

17

84253224

WARNING DECAL

Stay Clear of Extension when Raising or Lowering #12502B

2шт.

17

84253395

WARNING DECAL

Stay Clear of Extension when Raising or Lowering #12502B

2шт.

French

1шт.

18

84217938

DECAL

Control Box, Pickup, Pole, 5amp fuse

1шт.

Not Illustrated

1шт.

19

84253228

DECAL

RH, Crop Roller Adjustment

1шт.

20

84253230

DECAL

LH, Crop Roller Adjustment

1шт.

21

84281149

DECAL

Hydraulic Connection

1шт.

22

87041060

WARNING DECAL

Properly Prepare Machine For Transport

1шт.

22

87042011

WARNING DECAL

Properly Prepare Machine For Transport

1шт.

French

1шт.

23

84253204

WARNING DECAL

Crushing Hazzard

1шт.

23

84253382

DANGER DECAL

Crushing Hazzard

1шт.

French

1шт.
