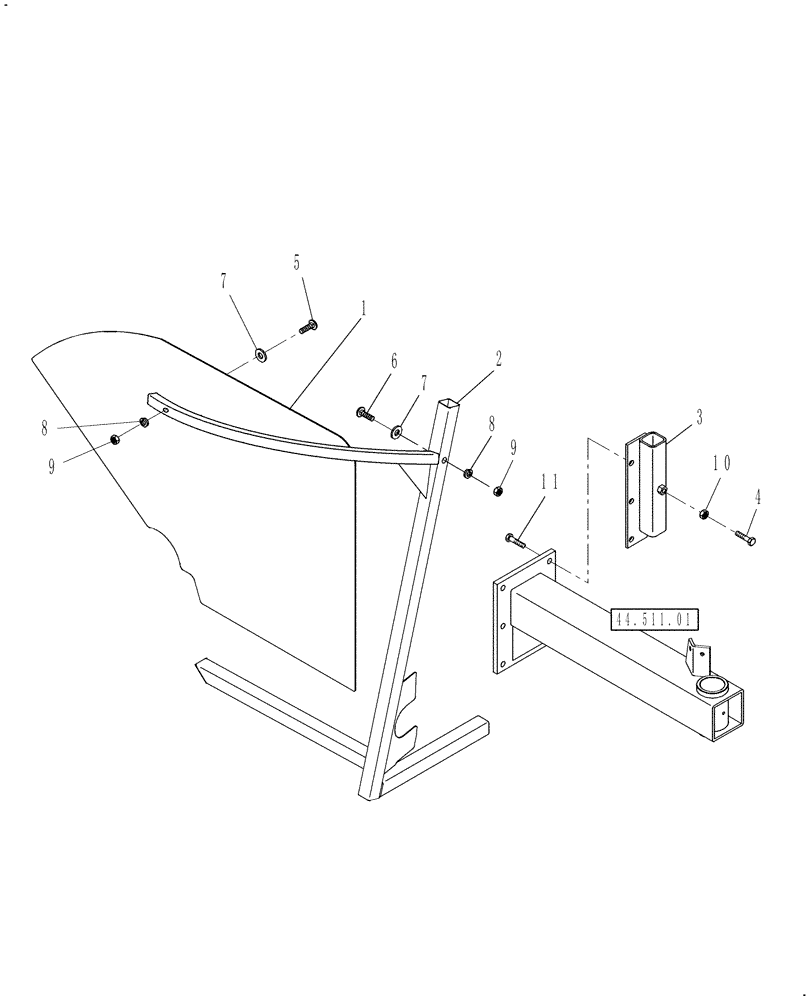

Запчасти Case IH CM209 (88.100.02) - WINDROW INVERTER ATTACHMENT, LH DISCHARGE (88) - ACCESSORIES

1

84236989

PANEL

Inverter, Poly

1шт.

2

84236990

FRAME

Windrow Interter

1шт.

3

84236991

MOUNT

Storage

1шт.

4

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

5

280687

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1 1/4", Gr 5

3шт.

6

433-432

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2", Gr 5

5шт.

7

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

8

80682

LOCK WASHER,1/4"

8шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

10

280431

NUT,1/2"-13, G5

1шт.

11

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.
