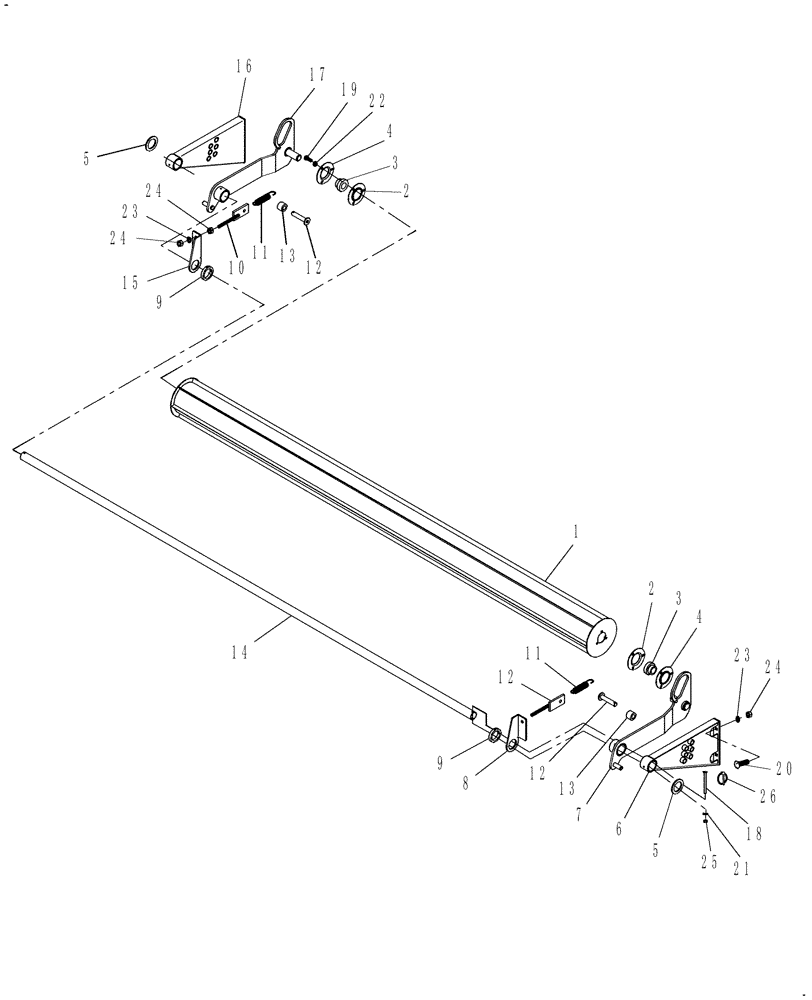

Запчасти Case IH CM209 (88.100.01) - ATTACHMENT, 9FT ROLLER WINDGUARD (88) - ACCESSORIES

1

84243280

ROLLER

Crop

1шт.

2

84230905

FLANGE

Heavy Duty

2шт.

3

134686

BALL BEARING,31.8 mm ID x 62 mm OD x 23.8 mm

2шт.

4

84230907

FLANGE

With 45 deg zerk

2шт.

5

84236584

WASHER

Windguard

2шт.

6

84230957

BRACKET

LH

1шт.

7

84236570

ARM

LH

1шт.

8

84243282

BRACKET

LH, Spring Tightener

1шт.

9

84236591

COLLAR

2шт.

10

84236588

BRACKET

Tightener

2шт.

11

84236579

SPRING

Extension

2шт.

12

84236587

PIN

Adjustment

2шт.

13

84236586

BUMPER

Poly

2шт.

14

84243279

SUPPORT

Front

1шт.

15

84243281

BRACKET

Rh, Spring Tightener

1шт.

16

84230956

BRACKET

RH

1шт.

17

84236572

ARM

RH

1шт.

18

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

19

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

20

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

21

80682

LOCK WASHER,1/4"

2шт.

22

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

24

280431

NUT,1/2"-13, G5

8шт.

25

280129

NUT,1/4"-20

2шт.

26

270184

LINCH PIN,6.35mm OD

2шт.
