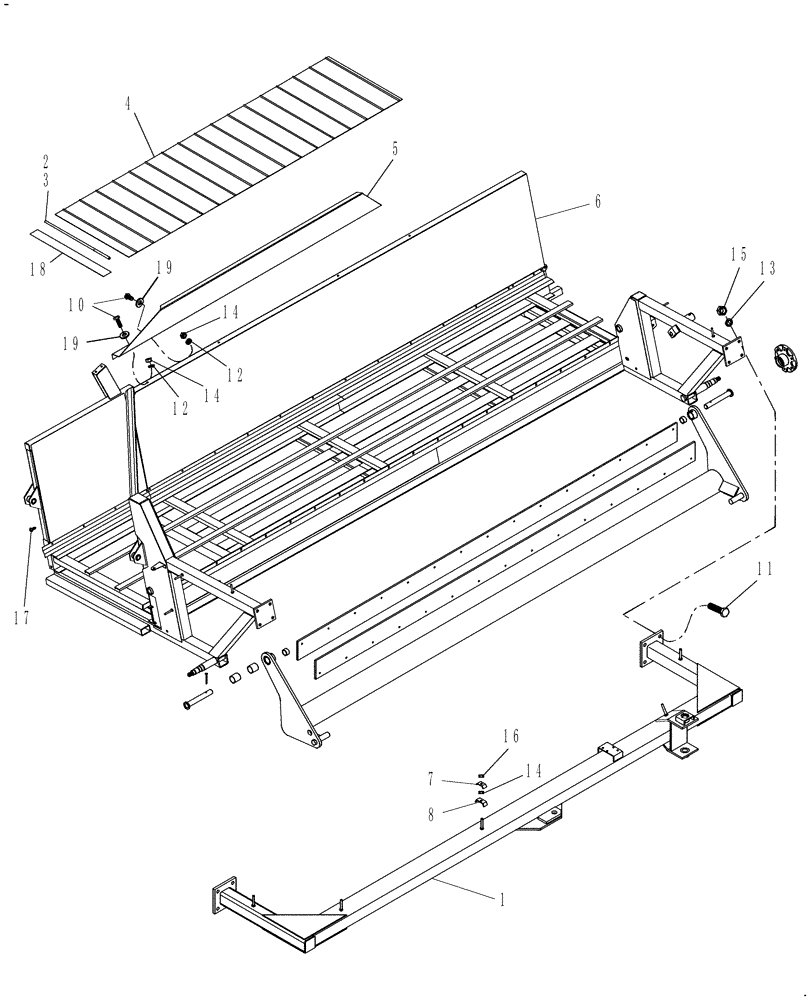

Запчасти Case IH CM209 (39.100.01) - MAIN FRAME, 9 FT (39) - FRAMES AND BALLASTING

1

84233579

CROSS

Tongue

1шт.

2

84230718

PIN

1шт.

3

84230719

CLIP

Conveyor Belt Lacing

1шт.

4

84230717

CONVEYOR BELT

9 ft

1шт.

5

84233610

DEFLECTOR

1шт.

6

84233600

FRAME

Main,9 FT

1шт.

7

84218946

BRACKET

8шт.

8

84230756

HOLDER

8шт.

10

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

11

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

13

86729275

LOCK WASHER,5/8 0.634 CST ZND

8шт.

14

9628503

NUT,3/8"-16, G5

16шт.

15

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

16

88902

NUT,3/8"-16

8шт.

17

280-13720

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/4"

11шт.

18

84292739

KIT

Mainframe Conveyor Belt Repair

1шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.
