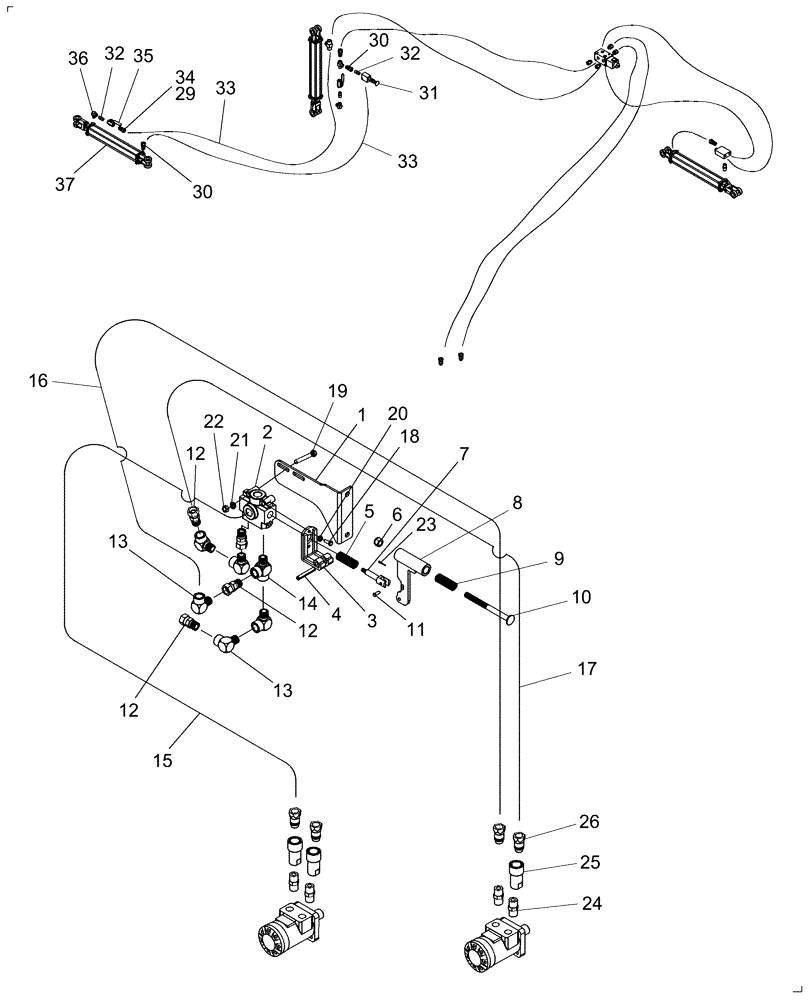

Запчасти Case IH CM209 (35.560.06) - HYDRAULICS, EXTENSION - (35) - HYDRAULIC SYSTEMS

W0

ORDER WHOLEGOODS

see notes tab

1шт.

Field Installed Option

1шт.

1

84243455

BRACKET

Shut-Off

1шт.

2

84243456

VALVE

Directional Control

1шт.

3

84243457

BRACKET

Shut-Off

1шт.

4

87577

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

1шт.

5

84243459

SPRING

Compression

1шт.

6

87530607

NUT

1/2-13

1шт.

7

84243461

PIN

1шт.

8

84243462

LEVER GUIDE

1шт.

9

84221589

SPRING

Compression

1шт.

10

84243463

BOLT

Guide Spring

1шт.

11

516389

CLEVIS PIN,6.35mm OD x 27.78mm L

1шт.

12

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

Adapter, Union, Oil Return

4шт.

13

283354

90 ELBOW,90 Degree, 1/2"-14 Female x 1/2"-14 Male

3шт.

14

617267

TEE,1/2"-14 Female x 1/2"-14 Male Run

1шт.

15

84243110

HYDRAULIC HOSE,0.50" ID x 24.00"

1шт.

16

84243111

HOSE,0.50" ID x 40.00"

1шт.

17

84241435

HYDRAULIC HOSE

1/2" x 49"

1шт.

18

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

2шт.

19

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

2шт.

20

80682

LOCK WASHER,1/4"

2шт.

21

80681

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

280236

COTTER PIN,1/16" x 1/2"

1шт.

24

86637713

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

2шт.

25

256231

COUPLING, QUICK, FEM

2шт.

26

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

30

84231025

ORIFICE

.042

1шт.

30

84173776

UNION

3/8" Male NPTF x FEMALE

2шт.

31

84236988

VALVE

Control, Sequence

1шт.

32

87041527

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

3/8" NPTF

2шт.

33

84242650

HOSE,0.25" ID x 140.00"

2шт.

34

84231027

UNION

3/8" Male x 3/8" Fem w/.042 orifice

1шт.

35

87712321

VALVE

Hydraulic

1шт.

36

86521965

ELBOW,90 Degree, 3/8"-18 Female x 3/8"-18 Male

1шт.

37

84236987

CYLINDER,Double Acting, 28.57mm Rod

Hydraulic, 2" x 16"

1шт.
