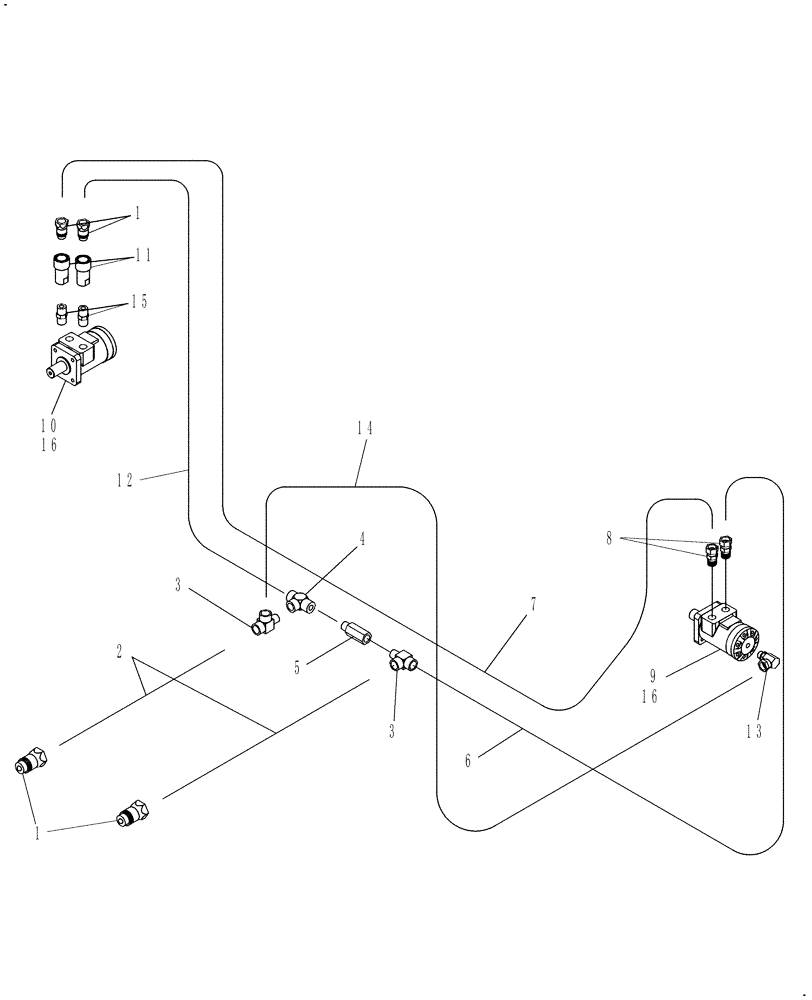

Запчасти Case IH CM209 (35.560.04[02]) - HYDRAULIC DRIVE MOTOR CIRCUIT (35) - HYDRAULIC SYSTEMS

1

9801618

QUICK MALE COUPLING,1/2" - 14

4шт.

2

84242654

HOSE,0.50" ID x 164.00"

2шт.

3

617267

TEE,1/2"-14 Female x 1/2"-14 Male Run

2шт.

4

217-1163

TEE,1/2"-14 Female

1шт.

5

84231020

CHECK VALVE

1/2"

1шт.

6

84242644

HOSE

1/2" x 84", Pressure Line to Hydraulic Motor

1шт.

7

84242645

HOSE

1/2" x 358"

1шт.

8

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

2шт.

9

84231013

HYDRAULIC MOTOR

Pickup

1шт.

10

84230702

HYDRAULIC MOTOR

1шт.

11

256231

COUPLING, QUICK, FEM

2шт.

12

84242648

HOSE,0.50" ID x 266.00"

Return Line from Hydraulic Motor

1шт.

13

84241436

ELBOW

90 Deg. 1/4" O-ring to 3/8" NPTF

1шт.

14

84242659

HOSE,0.25" ID x 102.00"

1шт.

15

86637713

HYD CONNECTOR,1/2" - 14 NPT x 1/2" - 14 NPT

2шт.

16

84230703

HYD PUMP REPAIR KIT

Services Ref 10 and Ref 9

2шт.
