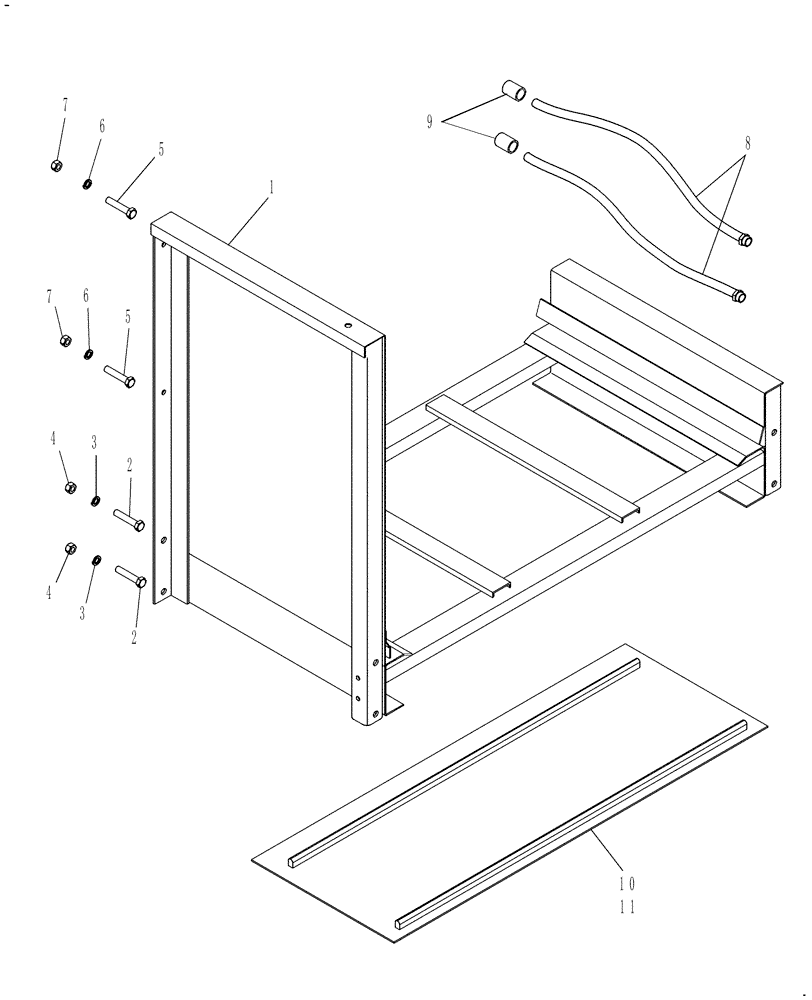

Запчасти Case IH CM109 (60.220.51) - EXTENSION, 2 FT - RH SIDE (60) - PRODUCT FEEDING

1

84231268

EXTENSION

2 FT

1шт.

2

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

280431

NUT,1/2"-13, G5

4шт.

5

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

7

9628503

NUT,3/8"-16, G5

2шт.

8

84231277

HYDRAULIC HOSE

1/2" x 24"

2шт.

9

88837

COUPLING

2шт.

10

84231279

EXTENSION

1шт.

11

84231280

PIN

1шт.

PL

PROCURE LOCALLY

30" of 16 Guage Wire Used To Extend Tail Light, 3 Butt Splices and 1 Ring Terminal

1шт.

Not Serviced Separately, Contained in Kit

1шт.
