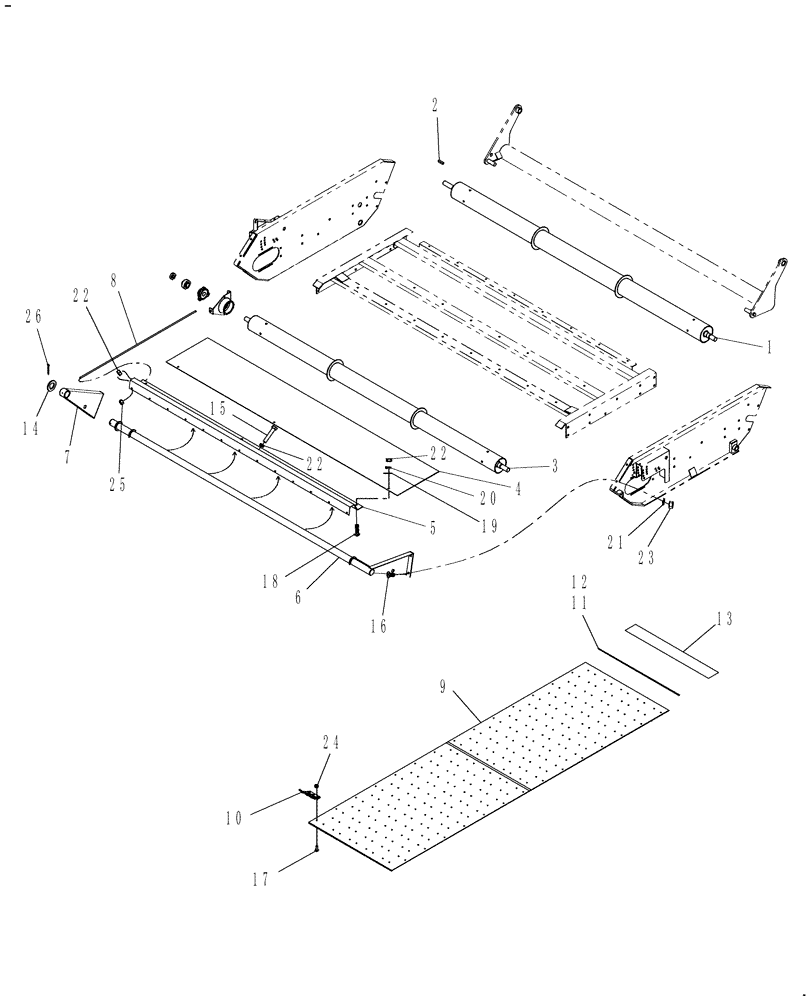

Запчасти Case IH CM109 (60.220.03) - WINDGUARD / PICKUP BELTING (60) - PRODUCT FEEDING

1

84230895

ROLLER

Back

1шт.

2

Q42

KEY,5/16" Sq x 1 3/8", Par

1шт.

3

84230922

ROLLER

Front

1шт.

4

84230924

WINDGUARD

Poly

1шт.

5

84230925

HOLDER

Windguard

1шт.

6

84230926

WINDGUARD

1шт.

7

84230927

WINDGUARD

Right

1шт.

8

84230928

ROD

13шт.

9

84230929

CONVEYOR BELT

Pickup

3шт.

10

84230933

TOOTH

260шт.

11

84230936

PIN

Lacing

3шт.

12

84230937

CLIP

Alligator Lacing

3шт.

13

84230932

KIT

Dutchman Repair, Services Ref. 9

1шт.

14

84236584

WASHER

1шт.

15

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

16

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

17

84230934

BOLT

520шт.

18

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

3шт.

19

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

20

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

22

9628503

NUT,3/8"-16, G5

19шт.

23

280431

NUT,1/2"-13, G5

4шт.

24

86562216

NUT,Keps, w/LW,1/4"-20

520шт.

25

88902

NUT,3/8"-16

13шт.

26

80752

COTTER PIN,1/4" x 2 1/2"

1шт.
