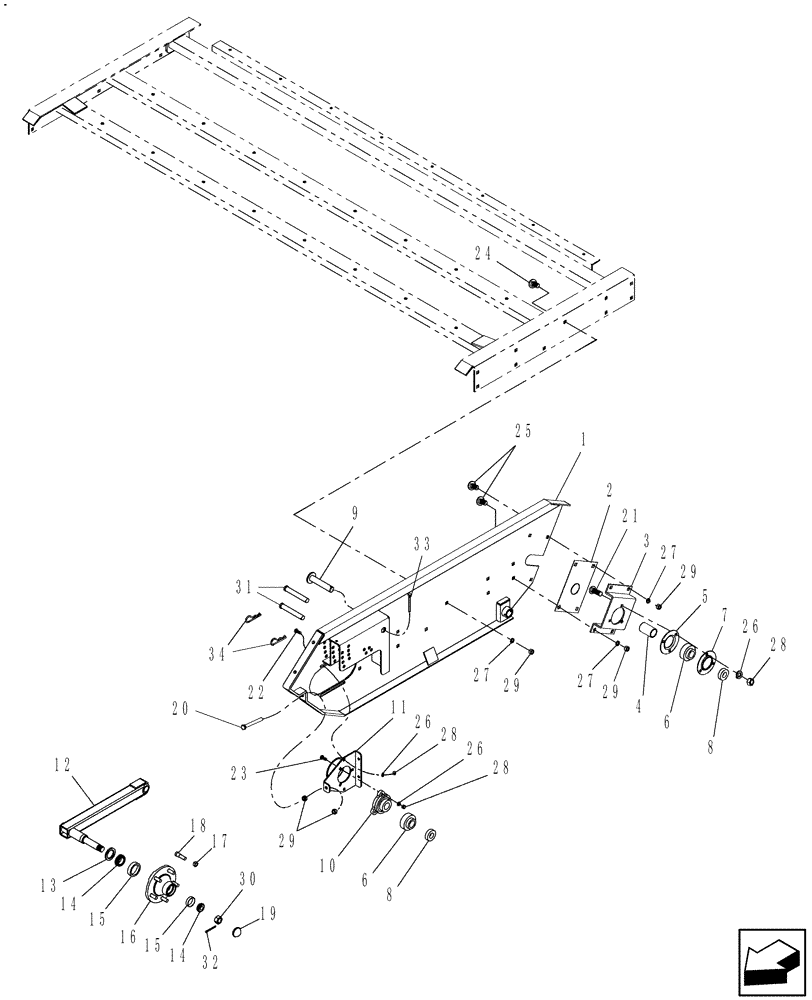

Запчасти Case IH CM109 (60.220.02[02]) - PICKUP FRAME, LH AND GAUGE WHEEL ARM (60) - PRODUCT FEEDING

1

84230898

PANEL

Left Hand

1шт.

2

84230900

PANEL

1шт.

3

84230903

BRACKET

Left Hand Bearing Bracket

1шт.

4

84230904

SPACER

1шт.

5

84230905

FLANGE

1шт.

6

84230906

BALL BEARING

1шт.

7

84244063

FLANGE

With 45 Deg. Zerk

1шт.

8

84230908

COLLAR

2шт.

9

84230909

PIVOT PIN

1шт.

10

84230913

BEARING HOUSING

1шт.

11

84230923

BRACKET

Left Hand, Front Roller

1шт.

12

84230938

ARM

Gauge Wheel

2шт.

13

97859C1

SEAL

2шт.

14

536264

BEARING CONE,26.98mm ID x 14.73mm W

4шт.

15

132709

BEARING CUP,50.29mm OD x 10.67mm W

4шт.

16

84230942

HUB

2шт.

17

29790

NUT,1/2" - 20

10шт.

18

109087A1

WHEEL BOLT

Wheel

10шт.

19

74771C1

CAP

2шт.

20

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

21

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

3шт.

22

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

2шт.

23

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

3шт.

24

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

9шт.

25

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

4шт.

26

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

13шт.

28

9628503

NUT,3/8"-16, G5

8шт.

29

280431

NUT,1/2"-13, G5

15шт.

30

427652

SLOTTED NUT,1"-14, G5

2шт.

31

56764

GUIDE PIN

2шт.

32

88350

COTTER PIN,5/32" x 1-1/2"

2шт.

33

87400

COTTER PIN,3/16" x 2"

1шт.

34

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.
