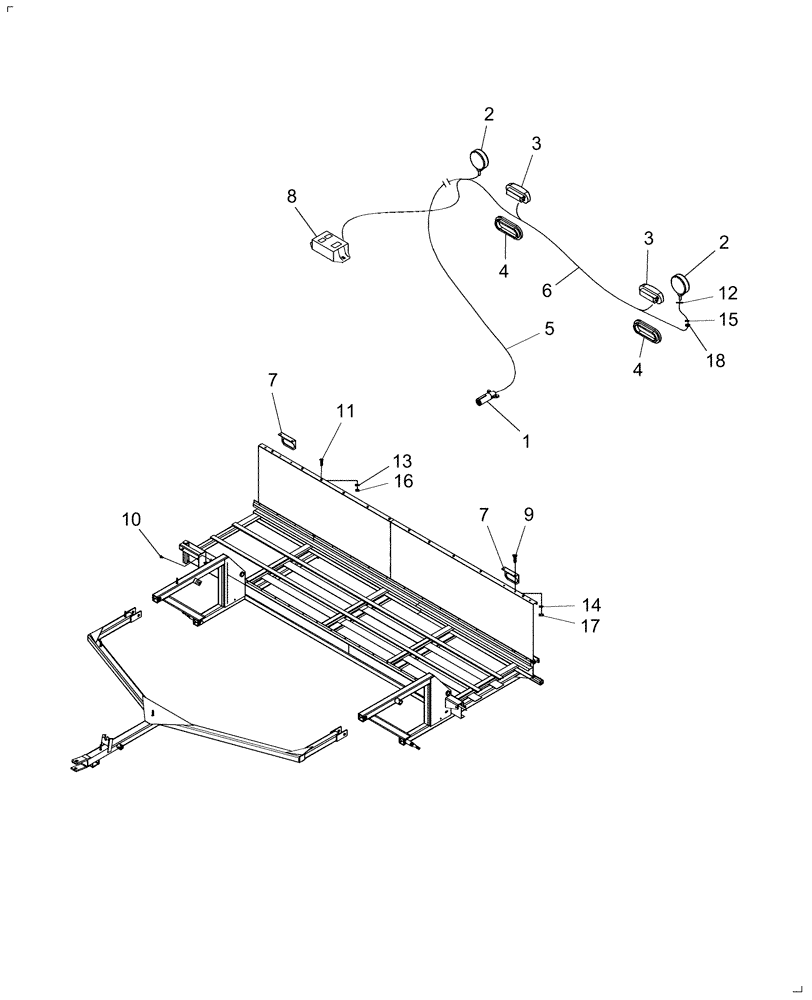

Запчасти Case IH CM109 (55.404.01) - EXTERNAL LIGHTING (55) - ELECTRICAL SYSTEMS

1

84137504

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

2

84236986

FLASHER LAMP

Flasher, Yellow Hazard

2шт.

3

84222073

FLASHER LAMP

Flasher, Red Tail

2шт.

4

84222074

GROMMET

2шт.

5

84262007

HARNESS

Front

1шт.

6

84262008

HARNESS

Rear

1шт.

7

84230691

BRACKET

2шт.

8

87537164

WIRE HARNESS

Light Harness Jumper

1шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

10

280-13720

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/4"

3шт.

11

87253

SCREW,Slotted Truss Hd, 1/4" - 20 x 1 1/4"

11шт.

12

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

13

80682

LOCK WASHER,1/4"

11шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

11шт.

17

9628503

NUT,3/8"-16, G5

4шт.

18

280431

NUT,1/2"-13, G5

2шт.
