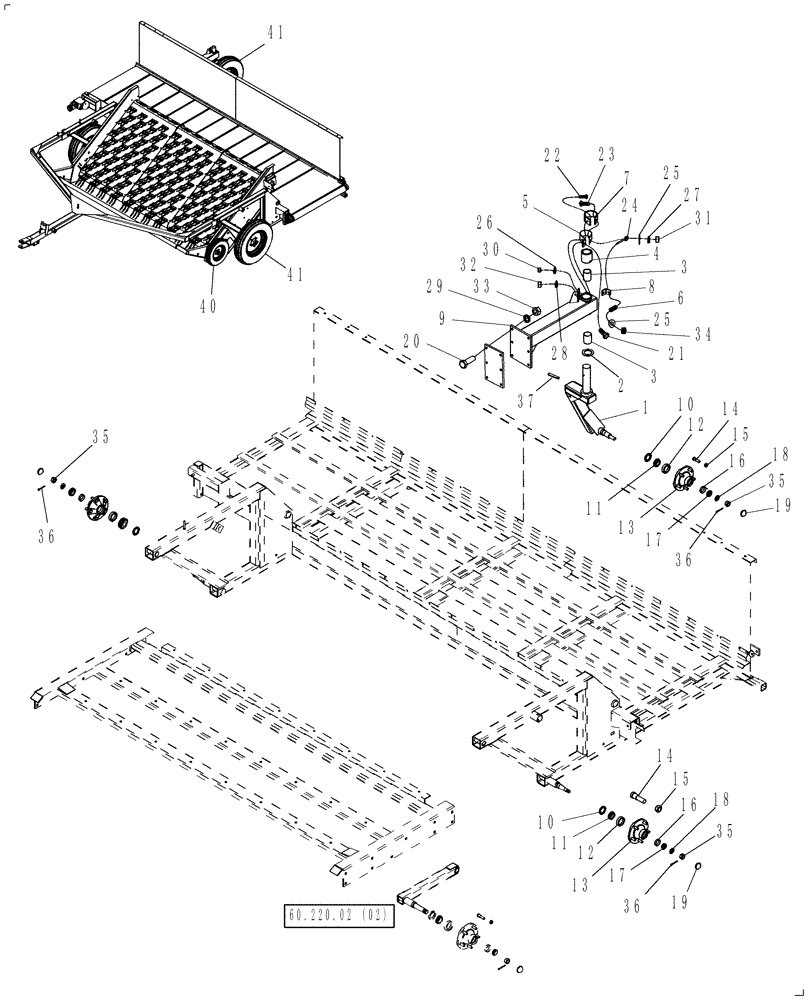

Запчасти Case IH CM109 (44.511.01) - WHEELS (44) - WHEELS

1

84230721

SPINDLE

Caster Arm

1шт.

2

84230723

BRONZE WASHER

1шт.

3

84230724

BRONZE BUSHING

2шт.

4

84230725

BUSHING

1шт.

5

84230726

BRAKE BAND

1шт.

6

84230727

SPRING

1шт.

7

84230728

BRAKE PAD

1шт.

8

84230729

ANGLE

1шт.

9

84230730

CASTER

1шт.

10

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

3шт.

11

36726

BEARING CONE,31.75mm ID x 16.76mm W

3шт.

12

36723

BEARING CUP,59.16mm OD x 11.81mm W

3шт.

13

84230735

HUB

3шт.

14

E16592

WHEEL BOLT

15шт.

15

453770R1

WHEEL NUT

15шт.

16

36725

BEARING CUP,45.26mm OD x 12.06mm W

3шт.

17

36724

BEARING CONE,19.07mm ID x 16.64mm W

3шт.

18

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

3шт.

19

651194R1

CAP

3шт.

20

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

6шт.

21

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

22

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

1шт.

23

280507

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

1шт.

24

226223

EYEBOLT

1шт.

25

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

26

80682

LOCK WASHER,1/4"

1шт.

27

80681

LOCK WASHER,5/16"

1шт.

28

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

31

9635082

NUT,5/16" - 18, Gr 5

1шт.

32

9628503

NUT,3/8"-16, G5

1шт.

33

280431

NUT,1/2"-13, G5

6шт.

34

86050277

NUT,5/16"-18, GB

1шт.

35

88886

SLOTTED NUT,3/4"-16

3шт.

36

88350

COTTER PIN,5/32" x 1-1/2"

3шт.

37

38-12044

LOCK PIN,5/16" x 2 3/4", Slotted

1шт.

40

1256673C1

WHEEL

3.75" x 8", Gauge Wheel

2шт.

41

84230737

WHEEL

5" x 15", Silver

3шт.
