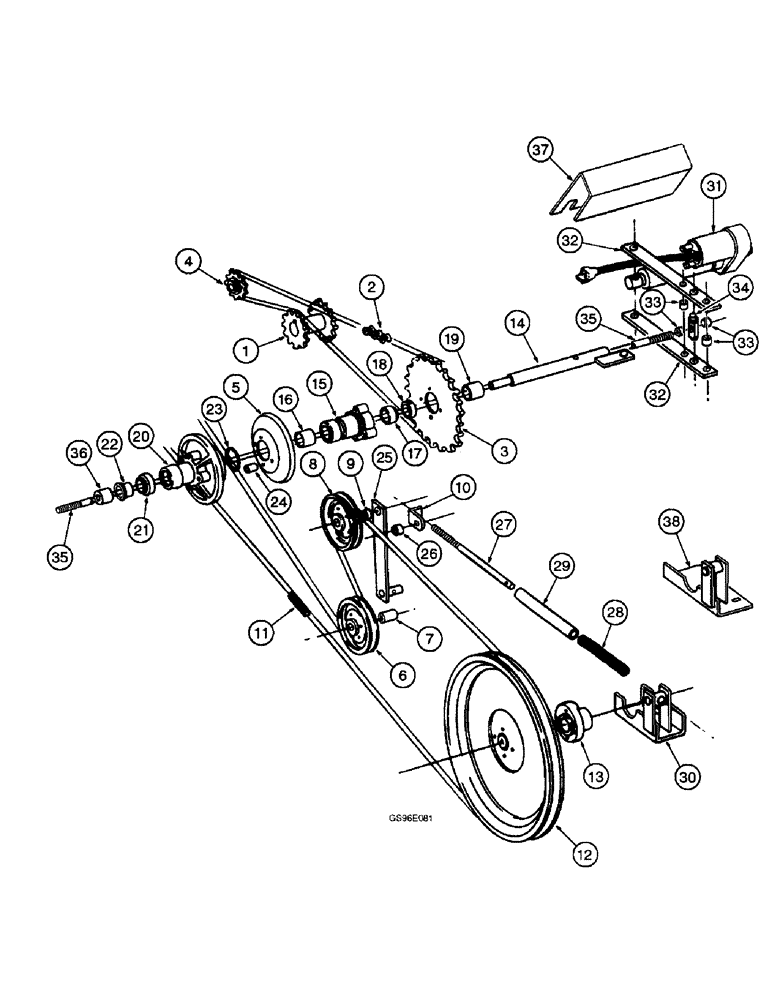

Запчасти Case IH INTERNATIONAL (4-28) - REEL DRIVE, ELECTRIC ACTUATED VARIABLE SPEED (13) - REEL

1

831883C1

SPROCKET ASSY.

SPROCKET - auger and reel drive, for connecting parts see pages 4-5 and 4-5B

1шт.

Q3936

KEY,Gib, 5/16" Sq x 2 1/2"

- gib, 5/16 x 2-1/2 inch

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - reel drive, use 101 links of 5/8 inch single pitch roller chain from 10 foot roll 1791D

1шт.

241-1315

LINK, CONNECTING

LINK - connecting, single pitch, No. 50, 5/8 inch pitch

1шт.

3

831123C1

SPROCKET ASSY.

SPROCKET - reel driven, 70 tooth

1шт.

3

591910R1

SPROCKET ASSY.

SPROCKET - reel driven, special, 56 tooth

1шт.

4

565442R91

SPROCKET

- tightener, 17 tooth

1шт.

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch (Replaces bolt 466971R1)

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

5

609727R3

PULLEY

- reel drive half inner

1шт.

6

607443R91

PULLEY

- drive belt idler

1шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

(Replaces bolt 180190) Hex, 1/2"-13 x 3", G5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

7

450492R1

SPACER,1/2" Pipe x 1"

- pipe, idler pulley

1шт.

8

154742C91

PULLEY

- drive belt tightener (Replaces pulley 574051R91)

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Replaces bolt 271725) Hex, 5/8"-11 x 2 1/2", G5

1шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

9

M42297

SPACER

- tightener sprocket, pulley

1шт.

10

824861C1

ANGLE

- tight rod support

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 550796R1) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

11

832044C2

BELT,156.00" L

Reel Drive 156.00" L

1шт.

12

1281470C1

PULLEY

- reel driven (Replaces pulley 597985R2)

1шт.

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8 (Replaces bolt 454869)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

597986R1

HUB

- driven pulley

1шт.

240

KEY,Gib, 3/8" Sq x 2 1/2"

- gib, 3/8 x 2-1/2 inch

1шт.

14

831623C1

SHAFT

- reel arm, right-hand

1шт.

485-13820

SET SCREW,Sq Hd, 3/8"-16 x 1 1/4"

SCREW - set, square head, 3/8 NC x 1-1/4 inch (Replaces screw 21407R1)

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch (Replaces washer 608700R1)

2шт.

15

831493C1

HUB

- reel drive

1шт.

16

K69054

BEARING - hub needle (Replaces bearing 102613R91)

1шт.

17

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

- ball, hub ball

1шт.

18

455104R11

COLLAR

- locking, bearing

1шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch (Replaces screw 102592)

1шт.

19

850081C1

SPACER

- bearing

1шт.

20

831494C1

PULLEY

- variable speed reel drive half outer

1шт.

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Replaces bolt 191163) Hex, 3/8"-16 x 4", G5

4шт.

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

21

618210R92

BALL BEARING,28.57mm ID x 62mm OD x 18mm W

BEARING - pulley outer half

1шт.

22

831592C1

BUSHING

- pulley half

1шт.

23

238-5331

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

- 3/16 ID x 2-1/4 inch (Replaces O-ring 21597R1)

1шт.

24

831679C2

SPACER

- pulley slide

4шт.

25

831673C1

ARM

- tightener pulley

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

26

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch, spring rod support angle (Replaces spacer 27251K)

1шт.

27

831522C1

ROD

- tightener spring

1шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

4шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

138-2053

PIN,1/4" x 1 1/4", Coiled

(Replaces pin 19689R1) 1/4" x 1 1/4", Coiled

1шт.

28

202192C1

SPRING

- control rod, adjusting

1шт.

29

832385C1

PIPE

- adjusting spring compression

1шт.

30

831519C2

BRACKET

- spring rod front, used with regular pick-up reel, used with twelve foot heavy duty pea pick-up reel, built, Serial Range: 1979-1981

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

31

REF

INSTRUCTION

ACTUATOR ASSEMBLY - spout, variable reel, parts list page 4-55

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN - headed, 1/2 x 2 inch, grade 1

1шт.

439-5840

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch (Replaces pin 22804R1)

1шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), (Replaces pin 103407) 3/16" x 1"

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

32

831624C1

BAR

- control lever

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Replaces bolt 180128) Hex, 3/8"-16 x 1 3/4", G5

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

6шт.

33

595366R1

BUSHING

- lever bar and rod spacer

4шт.

34

595241R2

TRUNNION

- control rod

1шт.

35

831621C1

ROD

- control

1шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

36

831622C1

BUSHING

- control rod acutator

1шт.

37

832273C2

GUARD

- control motor (Replaces guard 832273C1)

1шт.

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

SCREW - hex, 5/16 NC x 5/8 inch (Replaces screw 850678C1)

2шт.

38

823970C1

BRACKET

- spring rod front, right-hand, used with twelve and fourteen foot heavy duty pick-up reel, for all crops, built 1981 and after

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - bulk, 10 foot (3480 mm) roll

1шт.
