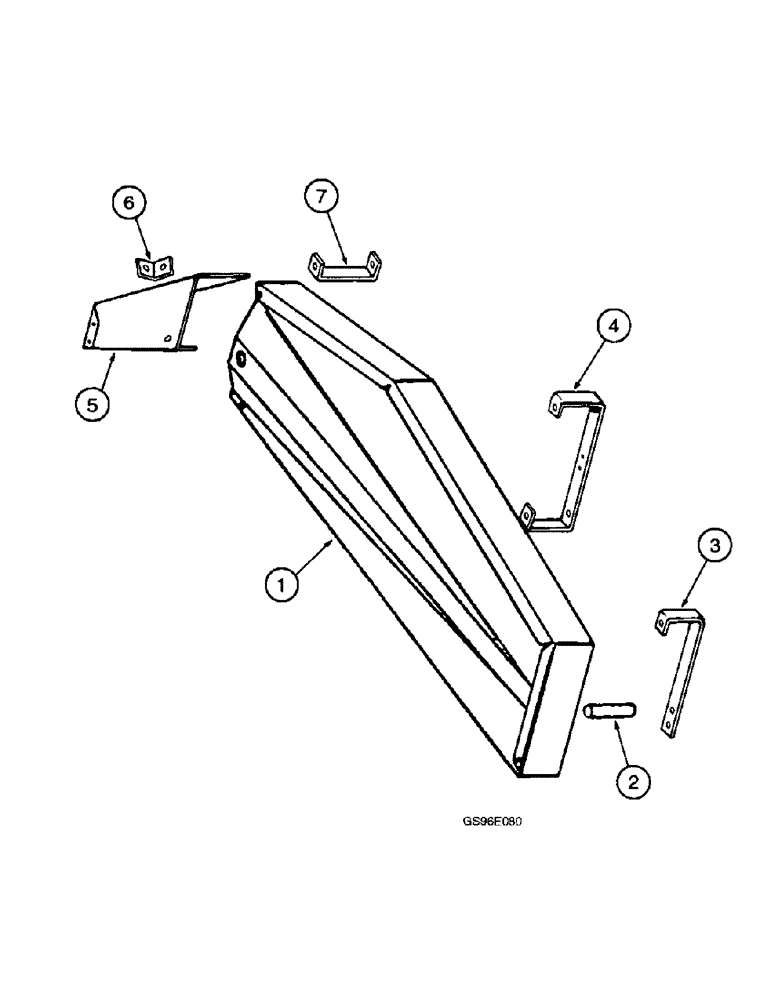

Запчасти Case IH INTERNATIONAL (4-26) - REEL DRIVE SHIELD (13) - REEL

1

830916C1

SHIELD

- reel drive front

1шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

5шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

2

28182R1

SPACER,3/4" X-Strng Pipe x 5 1/4"

- shield front mounting

1шт.

113-448

BOLT,Hex, 1/2" - 13 x 7", Gr 5

(Replaces bolt 19952R1) Hex, 1/2"-13 x 7", G5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

3

831983C1

SUPPORT

- reel drive shield front

1шт.

4

831650C1

SUPPORT

- reel drive shield rear

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

5

824062C91

SHIELD

- reel drive rear, prior to serial no. 793, order shield 823859C1 and support 823818C1

1шт.

5

823859C1

SHIELD

- reel drive rear, serial no. 793 and after (Replaces shield 823797C91)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

3шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

6

832225C1

ANGLE

- reel drive rear shield mounting

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

831159C1

SUPPORT

- reel drive rear shield, prior to serial no. 793, order shield 823859C1, support 823818C1, and two 2825058C1 rings

1шт.

7

823818C1

SUPPORT

- reel drive rear shield, serial no. 793 and after

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.
