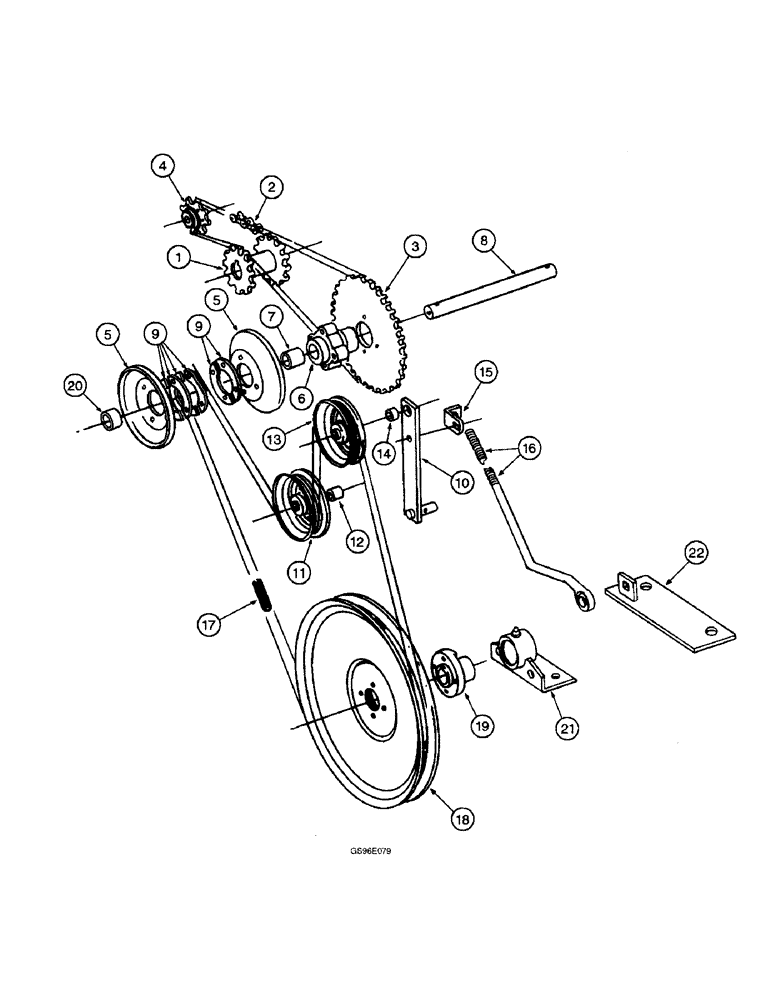

Запчасти Case IH INTERNATIONAL (4-24) - REEL DRIVE, MANUAL VARIABLE SPEED (13) - REEL

1

831883C1

SPROCKET ASSY.

SPROCKET - auger driven, right-hand, for connecting parts see pages 4-5 and 4-5B

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - reel drive, used 101 links of 5/8 inch single pitch roller chain from a 10 foot roll 1791D

1шт.

241-1315

LINK, CONNECTING

LINK - connecting, single pitch, No. 50, 5/8 inch pitch

1шт.

3

831123C1

SPROCKET ASSY.

SPROCKET - reel driven, 70 tooth

1шт.

3

591910R1

SPROCKET ASSY.

SPROCKET - reel driven, special, 56 tooth

1шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Replaces bolt 180138) Hex, 3/8"-16 x 3", G5

4шт.

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

4

565442R91

SPROCKET

- tightener, 17 tooth

1шт.

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch (Replaces bolt 466971R1)

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

5

609727R3

PULLEY

- reel drive half

2шт.

6

824534C11

HUB

- reel drive

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

7

102613R91

NEEDLE BEARING

BUSHING - hub (Replaces bushing 597980C1)

2шт.

8

832373C1

SHAFT

- reel arm, right-hand, for connecting parts see page 4-31

1шт.

9

609726R1

RETAINER

SPACER - reel drive pulley

16шт.

10

831139C1

ARM

- tightener pulley

1шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), (Replaces pin 103420) 1/4" x 1 1/2"

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

11

607443R91

PULLEY

- drive belt idler

1шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

(Replaces bolt 180190) Hex, 1/2"-13 x 3", G5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

12

450492R1

SPACER,1/2" Pipe x 1"

- pipe, idler pulley

1шт.

13

574051R91

PULLEY

- drive belt tightener

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Replaces bolt 271725) Hex, 5/8"-11 x 2 1/2", G5

1шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

14

M42297

SPACER

- tightener sprocket, pulley

1шт.

15

824861C1

ANGLE

- tight rod support

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 550796R1) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

16

832384C1

ROD

- tightener

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4" (Replaces pin 103386)

1шт.

17

832044C2

BELT,156.00" L

Reel Drive 156.00" L

1шт.

18

1281470C1

PULLEY

- reel driven (Replaces pulley 597985R2)

1шт.

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8 (Replaces bolt 454869)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

597986R1

HUB

- driven pulley

1шт.

240-1

KEY - gib, 3/8 x 2-1/2 inch (Replaces key 240)

1шт.

20

824529C1

BUSHING

- reel arm locking

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch (Replaces washer 608700R1)

1шт.

21

598215R21

BEARING ASSY,1.575" ID

- spring rod front, right-hand, used with regular pick-up reel, used with 12 foot heavy duty pea pick-up reel 1979 to 1981

1шт.

22

827008C1

BRACKET

- spring rod front, right-hand, fused with 12 and 14 foot heavy duty pick-up reel for all crops 1981 and after

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - bulk, 10 foot (3480) roll

1шт.
