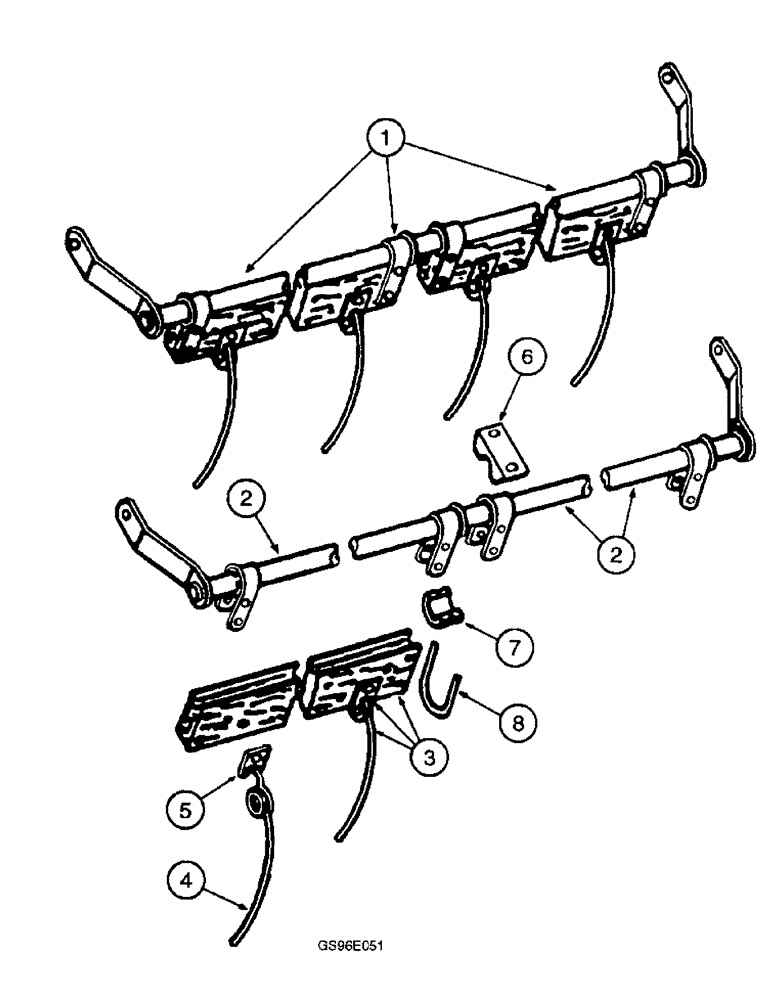

Запчасти Case IH INTERNATIONAL (3-46) - PICK-UP REEL, BATSHAFT AND BAT, 10.5, 12.5, 14.5 AND 16.5 FOOT HEADERS (13) - REEL

1

598221R91

BAT

ASSEMBLY - header reel, 10-1/2 foot, no longer available as a unit, order components

5шт.

1

598224R91

BAT

ASSEMBLY - header reel, 12-1/2 foot, no longer available as a unit, order components

5шт.

1

598227R91

BAT

ASSEMBLY - header reel, 14-1/2 foot, no longer available as a unit, order components

5шт.

1

598230R91

BAT

ASSEMBLY - header reel, 16-1/2 foot, no longer available as a unit, order components

5шт.

2

598222R1

SHAFT

BATSHAFT - header reel, 10-1/2 foot, used with bat assembly 598221R91

1шт.

2

598225R1

SHAFT

BATSHAFT - header reel, 12-1/2 foot, used with bat assembly 598224R91

1шт.

2

598228R1

SHAFT

BATSHAFT - header reel, 14-1/2 foot, used with bat assembly 598227R91

1шт.

2

598231R1

SHAFT

BATSHAFT - header reel, 16-1/2 foot, used with bat assembly 598230R91

1шт.

111-114

CARRIAGE BOLT,Short NK, 1/4"-20 x 1 1/2", G2

BOLT - carriage, 1/4 NC x 1-1/2 inch, sixteen used with bat assemblies 598221R91 and 598224R91, twenty-four used with bat assemblies 598227R91 and 598230R91 (Replaces bolt 18629R1)

1шт.

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC, 1 per bolt 111-114 (Replaces nut 378531R1)

1шт.

3

598223R91

BAT

ASSEMBLY - header reel batshaft, used with bat assembly 598221R91

2шт.

3

598226R91

BAT

ASSEMBLY - header reel batshaft, used with bat assembly 598224R91

2шт.

3

598229R91

BAT

ASSEMBLY - header reel batshaft inner, used with bat assembly 598227R91

1шт.

3

598189R91

BAT

ASSEMBLY - header reel batshaft outer, used with bat assembly 598227R91

2шт.

3

598232R91

BAT

ASSEMBLY - header reel batshaft inner, used with bat assembly 598230R91

1шт.

3

598233R91

BAT

ASSEMBLY - header reel batshaft outer, used with bat assembly 598230R91

2шт.

4

598171R1

TINE,Coiled, 1 Prong, 283mm L

- steel, bat, twelve used with bat assemblies 598223R91, 598229R91 and 598232R91; fourteen used with bat assembly 598226R91; eleven used with bat assembly 598189R91; thirteen used with bat assembly 598233R91

1шт.

5

592616R1

CLIP

- bat tine, one per tine

1шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

- semi-tubular oval head, 3/16 x 1 inch, one per clip (Replaces rivet 20901R1)

1шт.

6

598234R1

BASE

- bearing, reel bat inner half, fifteen used with bat assemblies 598221R91 and 598224R91, twenty used with bat assemblies 598227R91 and 598230R91

1шт.

7

598235R1

BEARING CAP,1.025"

- bearing, reel bat outer half, fifteen used with bat assemblies 598221R91 and 598224R91, twenty used with bat assemblies 598227R91 and 598230R91

1шт.

8

598236R1

U-BOLT,U, 1/4" - 20

- bearing clamping, fifteen used with bat assemblies 598221R91 and 598224R91, twenty used with bat assemblies 598227R91 and 598230R91

1шт.
