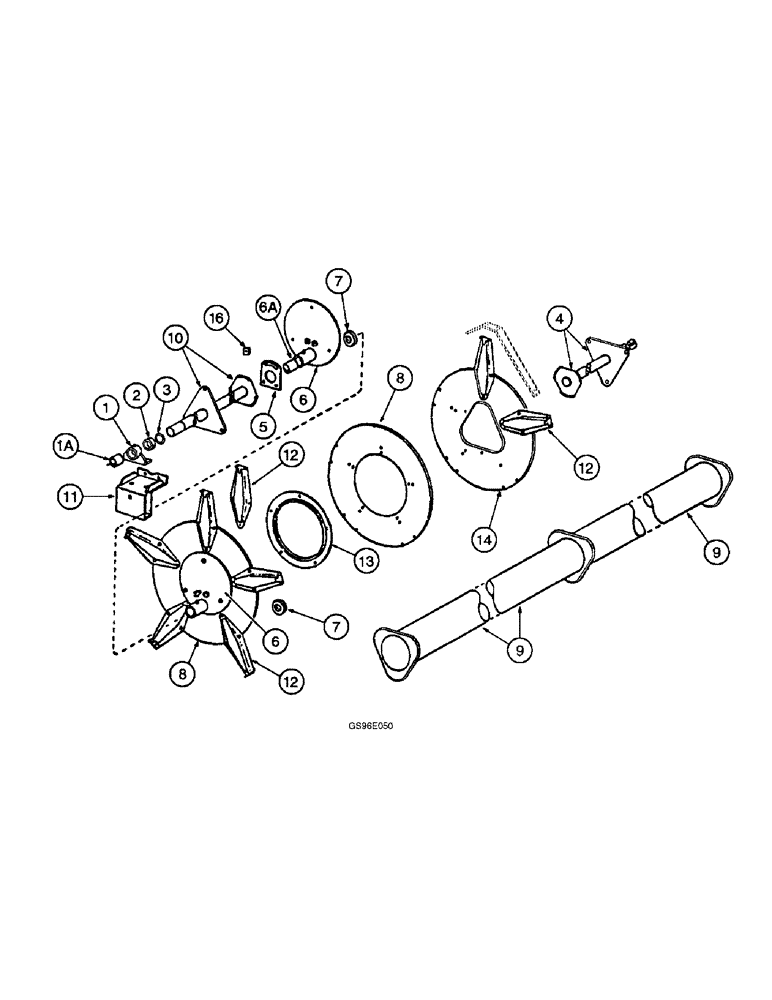

Запчасти Case IH INTERNATIONAL (3-44) - PICK-UP REEL CENTER SHAFT, 10.5, 12.5, 14.5 AND 16.5 FOOT HEADERS (13) - REEL

1

598215R21

BEARING ASSY,1.575" ID

ASSEMBLY - reel end shaft support

2шт.

1a

167666C1

BUSHING

- reel end shaft support

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

2

180400C91

COLLAR

- locking

2шт.

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

SCREW - set, hex socket headless, 3/8 NF x 5/16 inch (Replaces screw 139074)

4шт.

3

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch (Replaces washer 47411H)

4шт.

4

598213R2

SHAFT

- reel end drive, left-hand

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

3шт.

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

3шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

3шт.

5

827703C1

BAR

- eccentric adjustment

2шт.

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

(Replaces bolt 180147) Hex, 7/16"-14 x 1 1/4", G5

4шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

4шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 120383) 7/16"

4шт.

6

180507C1

HUB ASSY.

HUB ASSEMBLY - eccentric roller

2шт.

6a

167666C1

BUSHING

- roller

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch (Replaces bolt 466972R1)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

7

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING - eccentric roller frame

6шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Replaces bolt 180128) Hex, 3/8"-16 x 1 3/4", G5

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

6шт.

8

598238R1

RETAINER

PLATE - eccentric roller frame

2шт.

9

598209R1

TUBE

SHAFT - reel center, 10-1/2 foot

1шт.

9

598210R1

TUBE

SHAFT - reel center, 12-1/2 foot

1шт.

9

598211R1

TUBE

SHAFT - reel center, 14-1/2 foot

1шт.

9

598212R1

TUBE

SHAFT - reel center, 16-1/2 foot

1шт.

10

598214R2

SHAFT

- reel end driven, right-hand

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

3шт.

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

3шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

3шт.

11

598216R2

BRACKET

- eccentric adjusting

2шт.

439-5840

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch (Replaces pin 22804R1)

2шт.

1978738C1

HAIR PIN COTTER

quick-attach (Replaces pin 599744R1)

2шт.

12

167654C1

ARM

- reel bat and finger support, twenty-five used with 10-1/2 and 12-1/2 foot; thirty used with 14-1/2 and 16-1/2 foot (Replaces arm 167657C1)

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

10шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Sixty-five used with 10-1/2 and 12-1/2 foot; eighty used with 14-1/2 and 16-1/2 foot (Replaces bolt 180073) Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, 1 per bolt

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , one per bolt 5/16"

1шт.

13

598240R1

RETAINER

RING - eccentric control

2шт.

14

598219R1

SHIELD

PLATE - spider, three used with 10-1/2 and 12-1/2 foot, four used with 14-1/2 and 16-1/2 foot

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

6шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

6шт.

15

167666C1

BUSHING

- roller frame, bearing and eccentric frame

2шт.

16

378792C1

BAR

- eccentric slot adjustable spacer

2шт.
