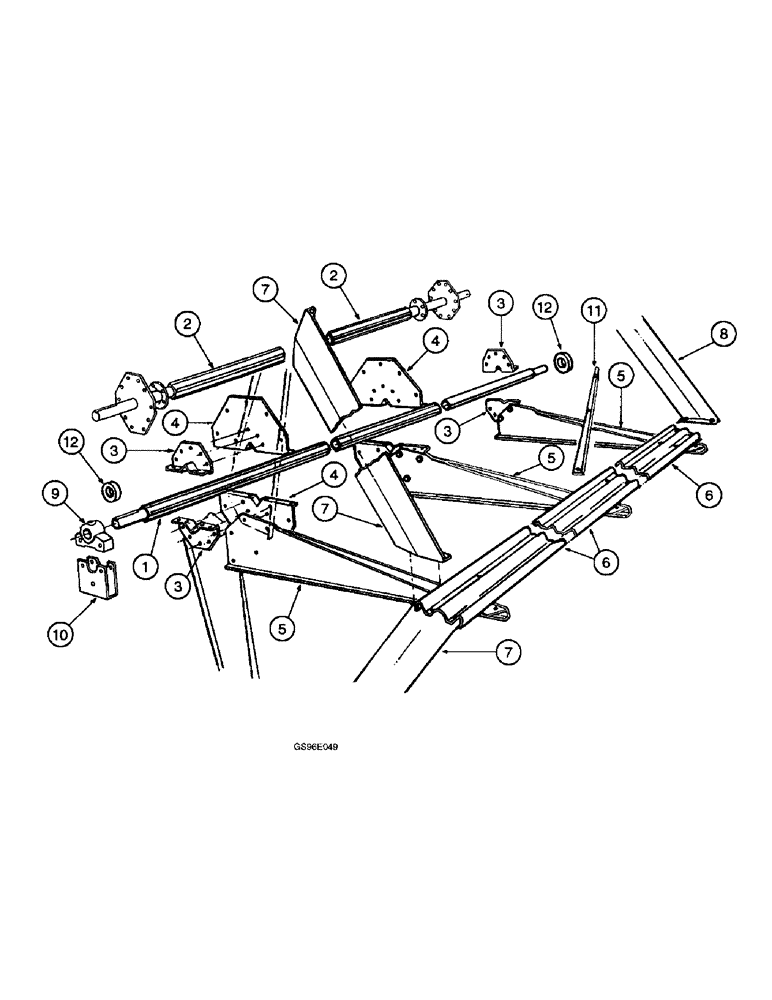

Запчасти Case IH INTERNATIONAL (3-42) - BAT REEL (13) - REEL

1

824847C1

REEL,129.7" Length

TUBE - reel center, 10-1/2 foot

1шт.

1

824848C1

REEL

TUBE - reel center, 12-1/2 foot

1шт.

1

824849C1

REEL

TUBE - reel center, 14-1/2 foot

1шт.

2

824850C3

REEL

TUBE - reel center, 16-1/2 foot

1шт.

2

824851C3

REEL

TUBE - reel center, 19-1/2 foot

1шт.

2

830111C3

REEL

TUBE - reel center, 24-1/2 foot

1шт.

495-81220

WASHER,1 15/32" x 2" x .060"

- flat, 1-15/32 x 2 x 1/16 inch (Replaces washer 22812R1)

12шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), (Replaces pin 103424) 1/4" x 2 1/2"

1шт.

3

825762C1

SUPPORT

- reel bat clamping end

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

8шт.

4

824839C1

SUPPORT

- reel bat clamping center, four used with 10-1/2 foot; six used with 12-1/2, 14-1/2 and 16-1/2 foot; eight used with 19-1/2 foot; ten used with 24-1/2 foot

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

16 used with 10-1/2 foot; 12 used with 16-1/2 foot; 16 used with 19-1/2 foot; 20 used with 24-1/2 foot; 20 used with 12-1/2 and 14-1/2 foot (Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

One per bolt 3/8"-16, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 1 per bolt (Replaces washer 120382) 3/8"

1шт.

5

824838C2

SUPPORT

- reel bat, fifteen used with 10-1/2 foot; twenty used with 12-1/2, 14-1/2 and 16-1/2 foot; twenty-five used with 19-1/2 foot; thirty used with 24-1/2 foot

1шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, forty used with 10-1/2 foot; fifty-five used with 12-1/2, 14-1/2 and 16-1/2 foot; seventy used with 19-1/2 foot; ninety used with 24-1/2 foot

1шт.

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

Five used with 19-1/2 foot Hex Flg, 5/16"-18 x 1", Serr

1шт.

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT - hex 5/16 inch NC, one per bolt

1шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch, five used with 19-1/2 foot (Replaces washer 20803R1)

1шт.

6

823136C1

BAR

BAT - reel, 10-1/2 foot

5шт.

6

823137C1

BAR

BAT - reel, 12-1/2 foot

5шт.

6

823139C1

BAR

BAT - reel, 14-1/2 foot

5шт.

6

823140C1

BAT

- reel, 16-1/2 foot

5шт.

6

823141C2

BAR

BAT - reel, 19-1/2 foot

5шт.

6

830080C1

BAT

- reel, 24-1/2 foot

5шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, thirty used with 10-1/2 foot; forty used with 12-1/2 and 14-1/2 foot; thirty used with 16-1/2 foot; forty used with 19-1/2 foot; fifty used with 24-1/2 foot

1шт.

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT - hex, 5/16 inch NC, one per bolt

1шт.

7

827553C1

GUARD

- reel end, left-hand

5шт.

8

827554C1

GUARD

- reel end, round hole, right-hand

5шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Replaces bolt 180020) Hex, 1/4"-20 x 3/4", G5, Full Thd

20шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5 (Replaces nut 120375)

20шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 1/16 inch (Replaces washer 21801R1)

40шт.

9

824537C1

BEARING CARRIER,1.46" ID x 2"

- reel support

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

10

824538C1

SUPPORT

- reel support bearing

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(Replaces bolt 180134) Hex, 3/8"-16 x 2 1/2", G5

3шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

LH (Replaces bolt 180138) Hex, 3/8"-16 x 3", G5

1шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

11

831245C1

ROD

- truss 16-1/2 foot, 7/16 inch thread, order rod assembly 823447C1 and two 129-105 nuts

10шт.

11

823447C1

ROD

- truss 16-1/2 foot, 1/2 inch thread

10шт.

11

830323C1

ROD

- truss 19-1/2 foot, 7/16 inch thread, order rod assembly 823448C1 and two 129-105 nuts

10шт.

11

823448C1

ROD

- truss 19-1/2 foot, 1/2 inch thread

10шт.

11

830179C2

ROD

- truss 24-1/2 foot, 7/16 inch thread, order rod assembly 823449C1 and two 129-105 nuts

1шт.

11

823449C1

ROD

- truss 24-1/2 foot 1/2 inch thread

10шт.

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, ten used with 16-1/2 foot, twenty used with 24-1/2 foot

1шт.

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

Ten used with 19-1/2 foot Hex Flg, 5/16"-18 x 1", Serr

1шт.

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT - hex, 5/16 inch NC, one per bolt

1шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch, thirty used with 16-1/2 and 24-1/2 foot, twenty used with 19-1/2 foot (Replaces washer 20803R1)

1шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

20шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

20шт.

12

557113R11

COLLAR

ASSEMBLY - shaft locking

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point (Replaces screw 102592)

2шт.
