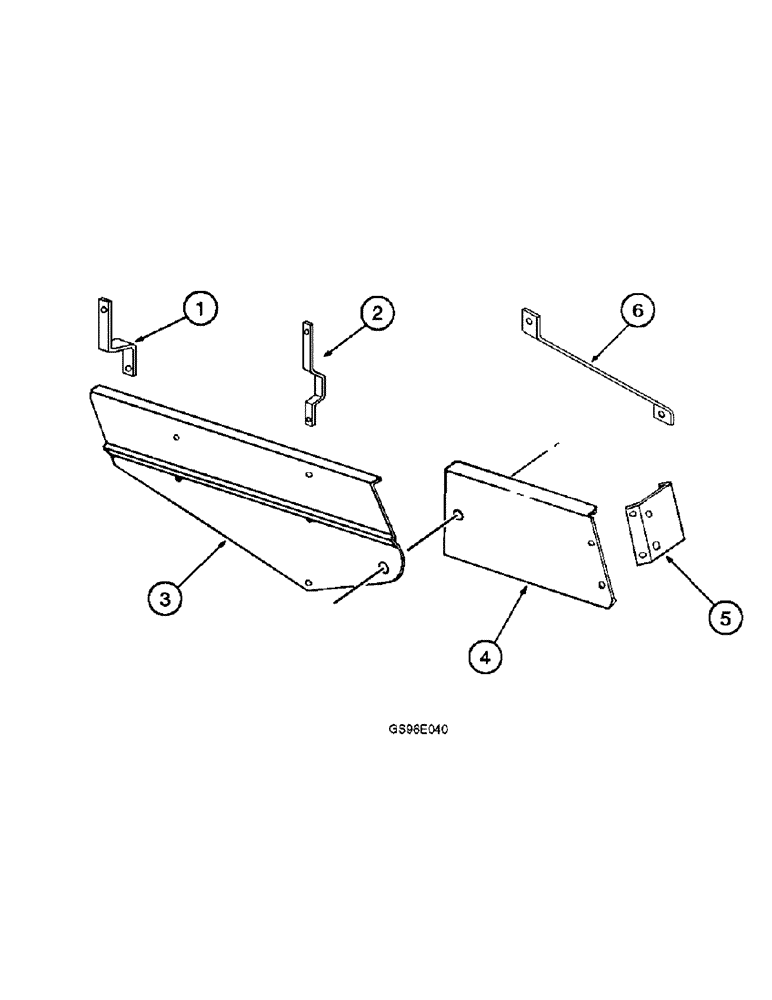

Запчасти Case IH INTERNATIONAL (3-23A) - REEL DRIVE SHIELDS, LEFT HAND (13) - REEL

1

824520C1

SUPPORT

- reel drive shield, front

1шт.

2

825728C1

SUPPORT

- reel drive shield

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

3

824519C2

SHIELD

- reel drive

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

5шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

5шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 20803R1)

5шт.

4

824159C91

SHIELD

ASSEMBLY - reel drive rear

1шт.

176977C1

PRODUCT GRAPHIC

DECAL - danger

1шт.

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

(Replaces bolt 180116) Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 20803R1)

1шт.

5

829394C2

CHANNEL

- rear shield support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 20803R1)

2шт.

6

831817C1

SUPPORT

- reel drive rear shield

1шт.

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (Replaces bolt 180075)

2шт.

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT - hex lock, 5/16 NC inch

2шт.
