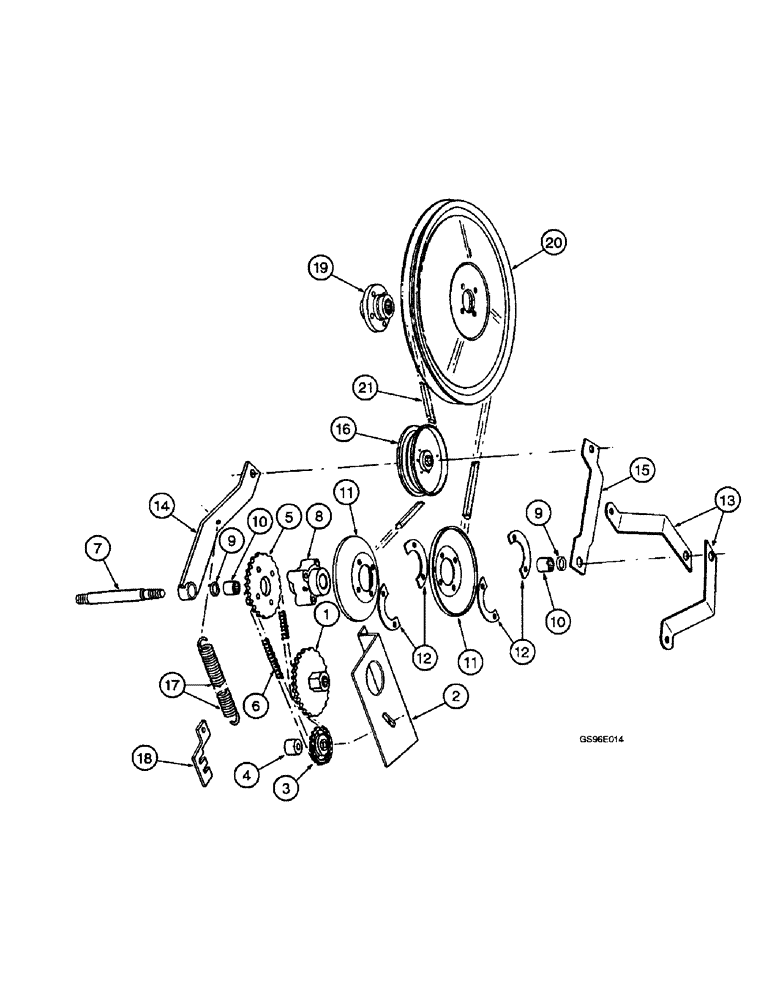

Запчасти Case IH INTERNATIONAL (2-28) - REEL DRIVE (13) - REEL

1

828667C1

SPROCKET ASSY.

SPROCKET - reel driveshaft drive, 20 tooth, for connecting parts see page 2-27

1шт.

2

828677C1

SUPPORT

- tightener sprocket

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

3

565442R91

SPROCKET

- tightener, 17 tooth

1шт.

433-856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

BOLT - carriage, 1/2 NC x 3-1/2 inch (Replaces bolt 26877R1)

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

- square hole, 17/32 x 1-1/4 x 1/8 inch (Replaces washer 607896R1)

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

3шт.

4

828676C1

SPACER

- sprocket

1шт.

5

609742R1

SPROCKET ASSY.

SPROCKET - reel driveshaft driven, 30 tooth

1шт.

6

REF

INSTRUCTION

CHAIN ASSEMBLY - reel driveshaft drive, use 69 links of 5/8 inch standard pitch roller chain from 10 ft roll 1791D

1шт.

241-1315

LINK, CONNECTING

LINK - connecting, single pitch, No. 50, 5/8 inch pitch

1шт.

7

828670C1

SHAFT

- reel drive

1шт.

129-128

NUT,3/4"-16, G5

- hex, 3/4 inch NC (Replaces nut 426099)

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

2шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64" (Replaces washer 614451R1)

1шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch (Replaces washer 609836R1)

1шт.

8

824057C2

HUB

- reel drive pulley

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

9

697494R91

OIL SEAL

SEAL - 1 inch ID, hub oil

2шт.

10

G10420

NEEDLE BEARING

BEARING - hub (Replaces bearing 252049C91)

2шт.

11

609727R3

PULLEY

- reel drive half

2шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Replaces bolt 180138) Hex, 3/8"-16 x 3", G5

4шт.

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.

12

609726R1

RETAINER

SPACER - pulley half

12шт.

13

828671C2

SUPPORT

- reel driveshaft

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt 180179) Hex, 1/2"-13 x 1 3/4", G5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

14

828845C1

ARM

- belt tightener pulley

1шт.

15

828824C1

SUPPORT

- belt tightener pulley

1шт.

16

564745R91

PULLEY

- idler, 5-1/2 inch OD, belt tightener

1шт.

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch (Replaces bolt 271724)

1шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

17

23488S

SPRING

- arm

1шт.

18

828846C1

SUPPORT

- spring anchor

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 1/8 inch (Replaces washer 20803R1)

1шт.

19

828678C1

HUB

- reel driven pulley

1шт.

20

1281470C1

PULLEY

- reel driven (Replaces pulley 597985R2)

1шт.

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8 (Replaces bolt 454869)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

599428R1

V-BELT,0.88" W

Reel drive 0.88" W

1шт.

21

153301C1

V-BELT,0.88" W x 115.87" L

Reel Drive, Used When Reel is Located at Forward End of Adjustment Range 0.88" W x 115.87" L

1шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - bulk, 10 foot (3480 mm) roll

1шт.
