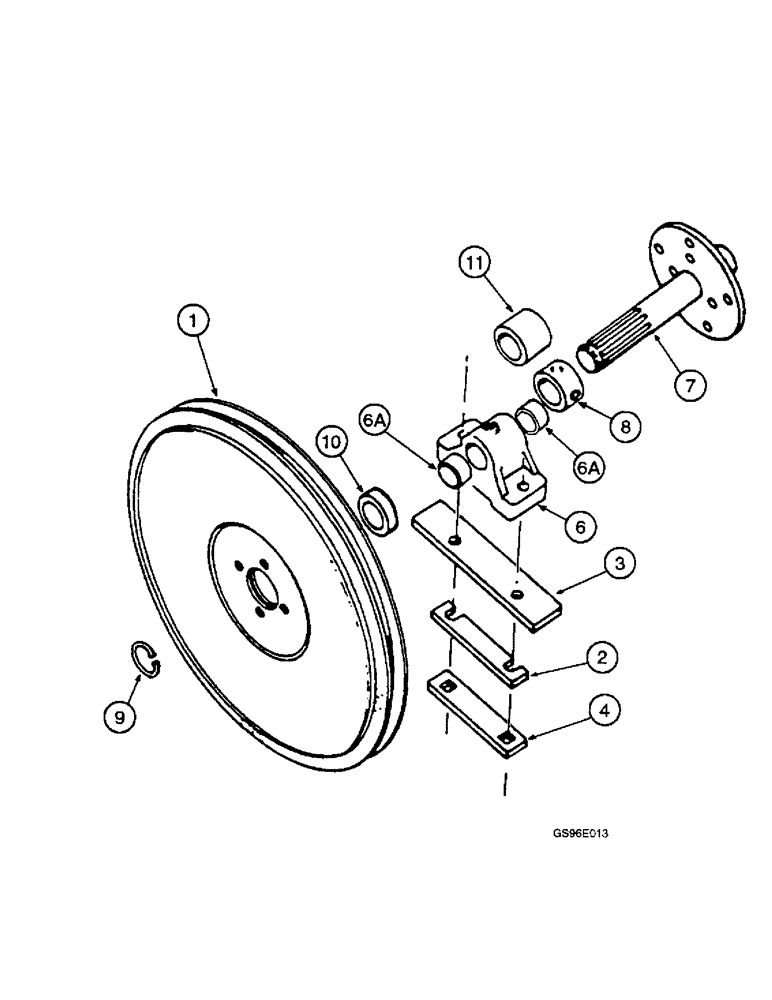

Запчасти Case IH INTERNATIONAL (2-26) - REEL DRIVE SHAFT AND SUPPORTS, RIGHT HAND (13) - REEL

1

1281470C1

PULLEY

- reel driven, for connecting parts see pages 2-29 and 2-29B (Replaces pulley 597985R2)

1шт.

2

828185C1

BAR

- reel support shim

3шт.

3

829098C1

BAR

- reel height adjuster, right-hand (Replaces 829097C1 adjuster with welded nuts)

1шт.

4

829096C1

BAR

- adjuster backing

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

6

828186C1

BEARING

- reel driven shaft support, no longer used, order bearing assembly 823183C91 below

1шт.

6

823183C91

BEARING ASSY

ASSEMBLY - reel driven shaft support

1шт.

6a

823184C1

BUSHING

- reel driven shaft support

2шт.

433-852

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5

BOLT - carriage, 1/2 NC x 3-1/4 inch (Replaces bolt 27461R1)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

7

828815C2

SHAFT

- reel driven

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

5шт.

231-5146

FLANGE NUT,3/8"-16

5шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch (Replaces washer 608085R1)

3шт.

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

8

829250C1

SPACER

- reel support bearing locking, also order spacer 831312C2, item 11, and washer 495-81213 as required

1шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

2шт.

9

103-16137

SNAP RING,#137. Ext

Ring, Snap, #137, Ext, Reel driven hub

1шт.

10

28164R1

SPACER

- bearing

1шт.

11

831312C2

SPACER

- reel support bearing

1шт.
