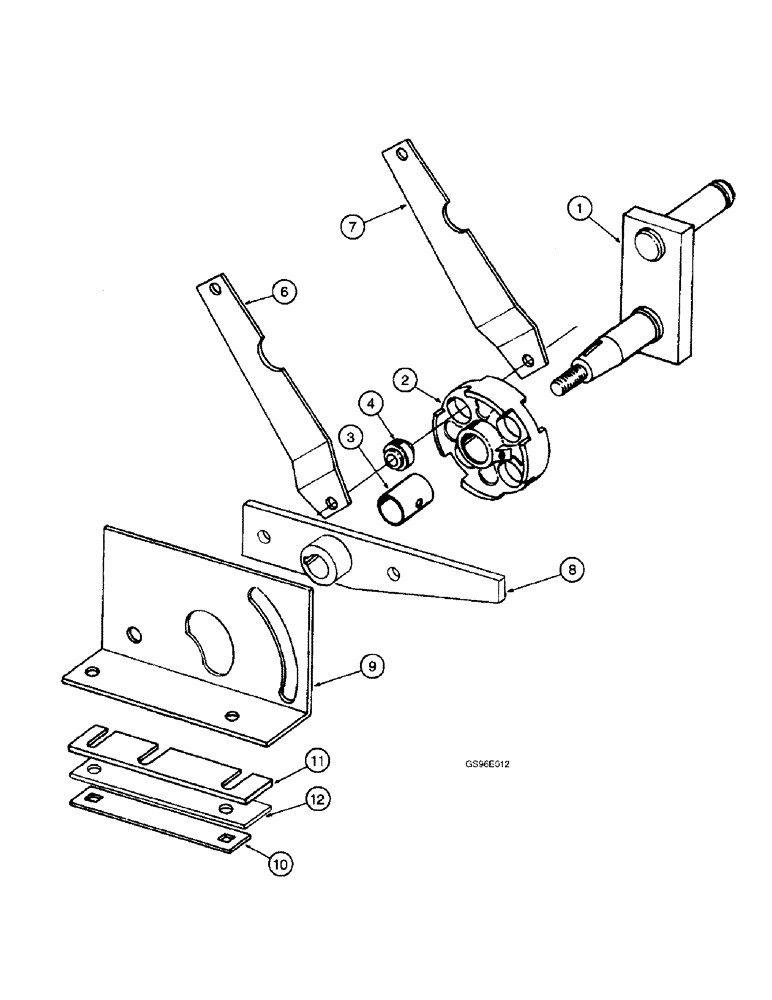

Запчасти Case IH INTERNATIONAL (2-24) - REEL CRANKSHAFT AND SUPPORTS, LEFT HAND (13) - REEL

1

828839C1

CRANK

- reel support, left-hand, for connecting parts see pages 2-23 and 2-23B

1шт.

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch (Replaces washer 22051R1)

4шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 11/64 inch (Replaces washer 26512R1)

2шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

1шт.

829469C92

HUB

ASSEMBLY - crank

1шт.

2

NSS

NOT SOLD SEPARAT

HUB - crank, order hub assembly 829469C92

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

3

829455C1

BUSHING

- crank hub

1шт.

4

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

- crank arm

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

3шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

6

830124C1

SUPPORT

- reel crank, left-hand

4шт.

7

829457C1

SUPPORT

- reel crank, right-hand

4шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt 180179) Hex, 1/2"-13 x 1 3/4", G5

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

8шт.

8

829561C1

HUB

- crank

1шт.

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

(Replaces key 117991) #D, 5/16" x 1 1/4", HT

1шт.

9

827615C3

SUPPORT

- reel, left-hand (Replaces bracket 829095C2)

1шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

WASHER - square hole, 1/2 x 2-3/4 inch

2шт.

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

(Replaces bolt 271548) Hex, 5/8"-11 x 1 3/4", G5

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

10

829105C1

BAR

- reel support backing, left-hand

1шт.

11

827616C1

BAR

- reel support shim, left-hand

3шт.

12

831767C1

BAR

- reel support

1шт.
