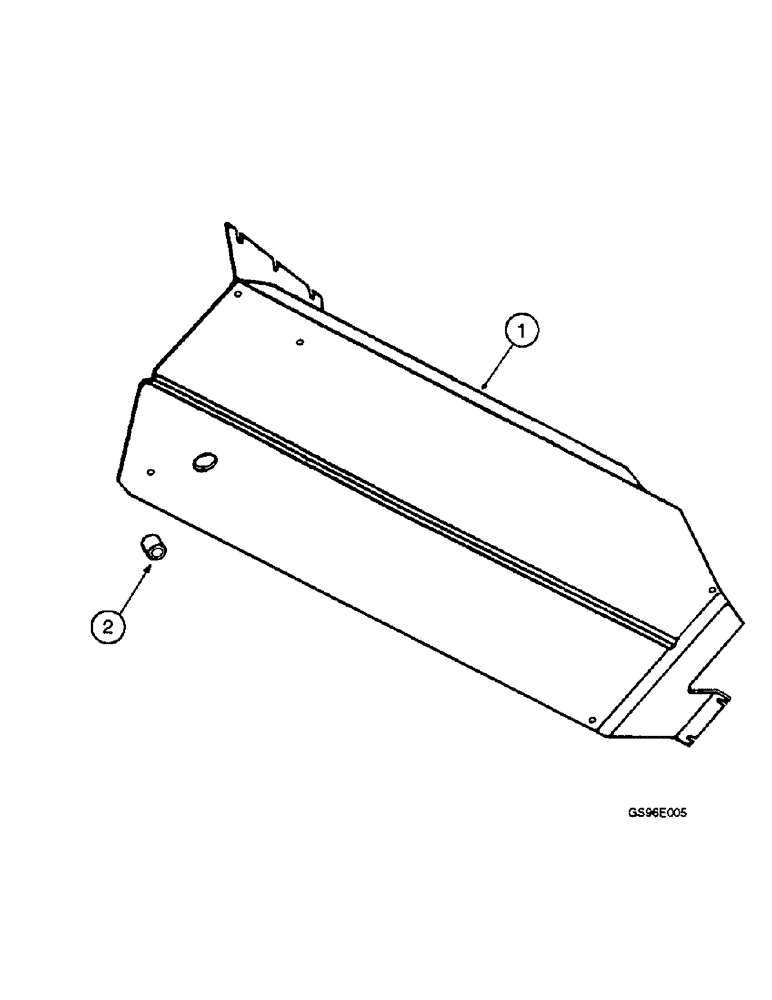

Запчасти Case IH INTERNATIONAL (2-10) - REEL DRIVE SHIELD, RIGHT HAND (13) - REEL

1

828772C3

GUARD

SHIELD - reel drive (Replaces shield 828772C2)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

4шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

(Replaces bolt 180081) Hex, 5/16"-18 x 1 1/4", G5

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

5шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Replaces washer 619855R1)

4шт.

2

700121908

SPACER

- pipe, 1/4 x 3/8 inch (Replaces spacer 86224H)

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Replaces washer 619855R1)

2шт.
