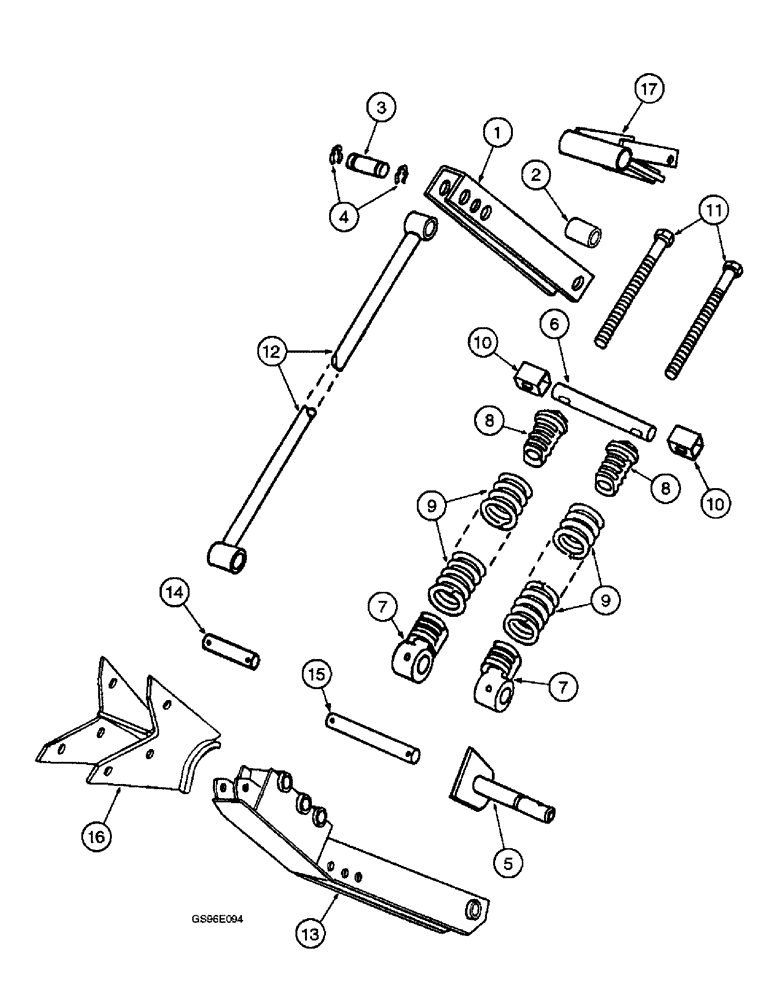

Запчасти Case IH INTERNATIONAL (4-56) - HEADER FLOTATION AND ARM (12) - MAIN FRAME

1

828371C2

CHANNEL

- lift upper

2шт.

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(Replaces bolt 271777) Hex, 3/4"-10 x 3 1/2", G5

2шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

2шт.

2

828443C1

SPACER

- upper lift channel pivot

2шт.

3

828150C1

PIN,25.4mm OD x 71.88mm L

- lift rod upper

4шт.

4

827695C1

CIRCLIP

RING - retaining

8шт.

5

831175C1

PIN

- lower lift arm pivot

2шт.

38-32432

PIN,3/8" x 2", Coiled

2шт.

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/8 inch (Replaces washer 21226R1)

6шт.

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, straight, 1/4 PT x 7/8 inch (Replaces fitting 273349)

2шт.

6

831855C1

PIN

- spring anchor upper

2шт.

7

596398R1

PLUG

- spring lower

4шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Replaces fitting 109462) 90º, 1/8" NPT x .84" lg

4шт.

8

826734C1

LUG

PLUG - spring upper

4шт.

9

827694C1

SPRING

- float

4шт.

10

831827C1

SPACER

- spring anchor pin

4шт.

11

828145C1

BOLT,Hex, 3/4" - 10 x 11", Gr 8

- float spring tension

4шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

4шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

12

828369C1

ROD

- lift

2шт.

13

832263C1

ARM

- lift lower

2шт.

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Replaces bolt 271775) Hex, 3/4"-10 x 3", G5

2шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

2шт.

14

831017C1

PIN

- lift rod lower anchor, 5-29/32 inch

2шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), (Replaces pin 103420) 1/4" x 1 1/2"

4шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch (Replaces washer 609836R1)

8шт.

15

828444C1

PIN

- lift rod and spring anchor lower, 9-13/16 inch

2шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), (Replaces pin 103420) 1/4" x 1 1/2"

4шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch (Replaces washer 6-9836R1)

8шт.

16

831895C1

PIVOT

- lower lift arm front

2шт.

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

(Replaces bolt 24860R1) Hex, 1/2"-13 x 1", G8, Full Thd

12шт.

329-108

NUT,1/2"-13, G8

(Replaces nut 25526R1) 1/2"-13, G8

12шт.

17

832426C1

PIVOT

- float spring upper, for either or both floats

1шт.

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Replaces bolt 191163) Hex, 3/8"-16 x 4", G5

1шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch (Replaces bolt 180185)

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.
