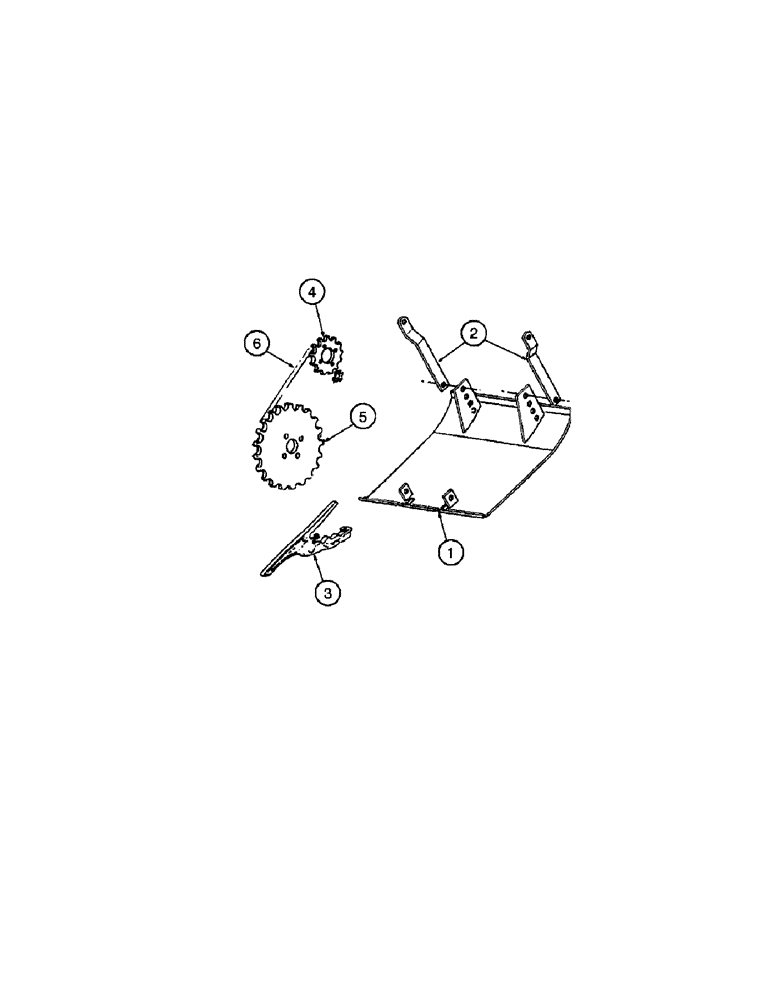

Запчасти Case IH INTERNATIONAL (4-44[A]) - SKID SOLE AND PEA CUTTING PARTS, FOR USE WITH PEA PICK-UP (12) - MAIN FRAME

1

832078C1

SOLE

- skid

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

2

596283R2

BRACE

- skid sole adjusting

4шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

8шт.

3

596280R92

TAPPET

LIFTER - pea, no longer available

15шт.

4

592960R1

SPROCKET ASSY.

SPROCKET - countershaft drive, slow speed, 20 tooth

1шт.

5

595968R1

SPROCKET ASSY.

SPROCKET - countershaft driven, slow speed, 52 tooth

1шт.

6

REF

INSTRUCTION

CHAIN ASSEMBLY - countershaft drive, use 67 links of 5/8 inch single pitch roller chain from 10 foot roll 1791D

1шт.

241-1315

LINK, CONNECTING

LINK - connecting, single pitch, No. 50, 5/8 inch pitch

1шт.

241-1715

LINK,15.88mm Pitch

LINK - offset, single pitch, No. 50, 5/8 inch pitch

2шт.

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - bulk, 10 foot (3480 mm) roll

1шт.
