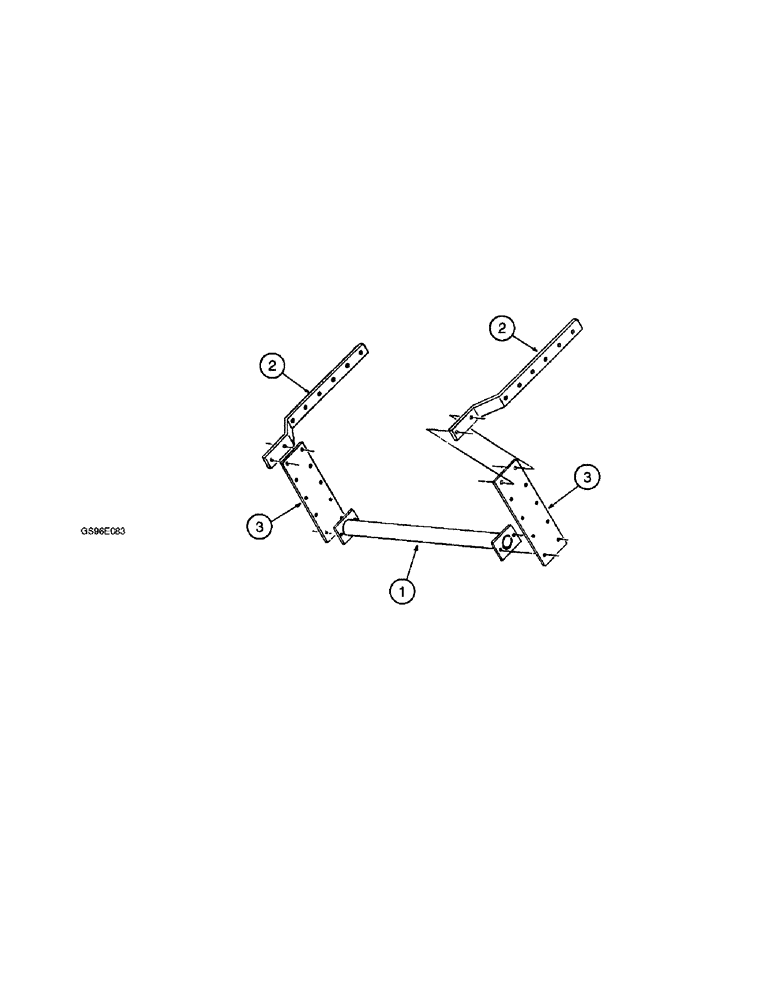

Запчасти Case IH INTERNATIONAL (4-32[B]) - BREAKOVER BAR (12) - MAIN FRAME

1

823571C2

BAR ASSY.

BAR - breakover, 12 foot header (Replaces bar 824053C1)

1шт.

1

823572C2

BAR

- breakover, 14 foot header (Replaces bar 826283C1)

1шт.

1

823573C2

BAR ASSY.

BAR - breakover, 16 foot header

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

For mounting C1 breakover bars (Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , for mounting C1 breakover bars (Replaces washer 120382) 3/8"

4шт.

2

832096C2

SUPPORT

- breakover bar

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

3

823288C3

CHANNEL

BAR - breakover bar adjusting

2шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

For mounting C2 breakover bars (Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , for mounting C2 breakover bars (Replaces washer 120382) 3/8"

4шт.

425-106

NUT,3/8"-16, Cl 5

For mounting C2 breakover bars 3/8"-16, G5

4шт.
