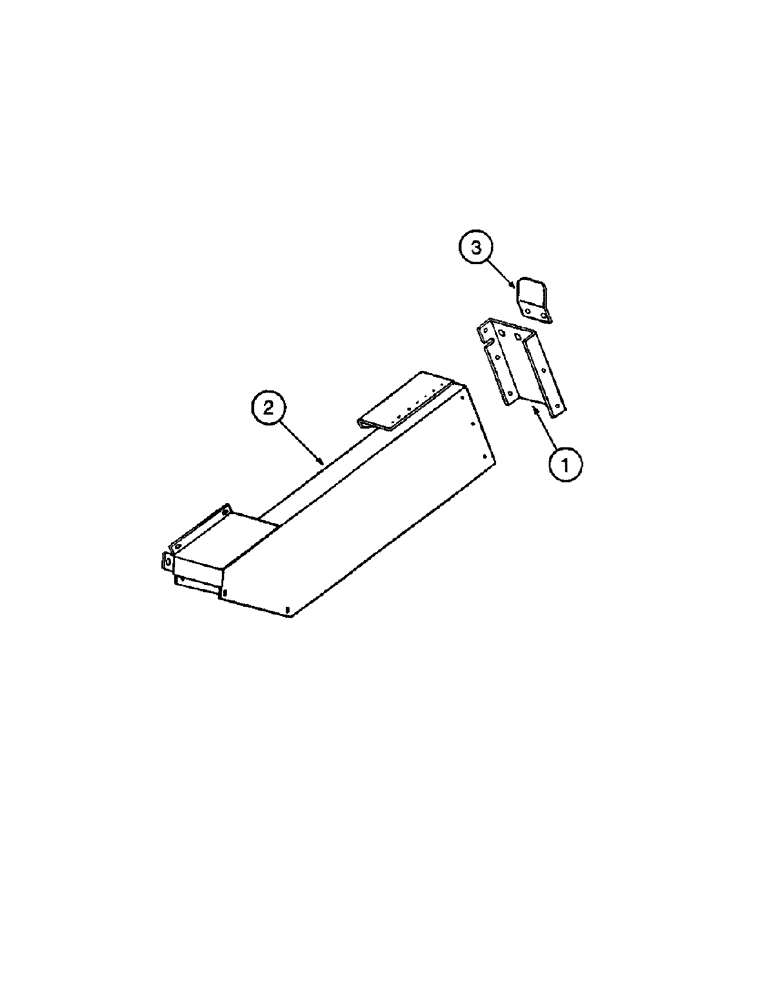

Запчасти Case IH INTERNATIONAL (4-22) - DRIVE SHIELDS, KNIFE (12) - MAIN FRAME

1

832020C1

CHANNEL

- knife drive shield

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

2

823230C91

SHIELD

- knife drive, prior to serial no. 902, order shield assembly 823951C91 and support 832008C2

1шт.

2

823951C91

SHIELD

ASSEMBLY - knife drive

1шт.

176977C1

PRODUCT GRAPHIC

DECAL - danger

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

6шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

231-5146

FLANGE NUT,3/8"-16

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

3шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

3

831826C1

SUPPORT

- reflector

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.
