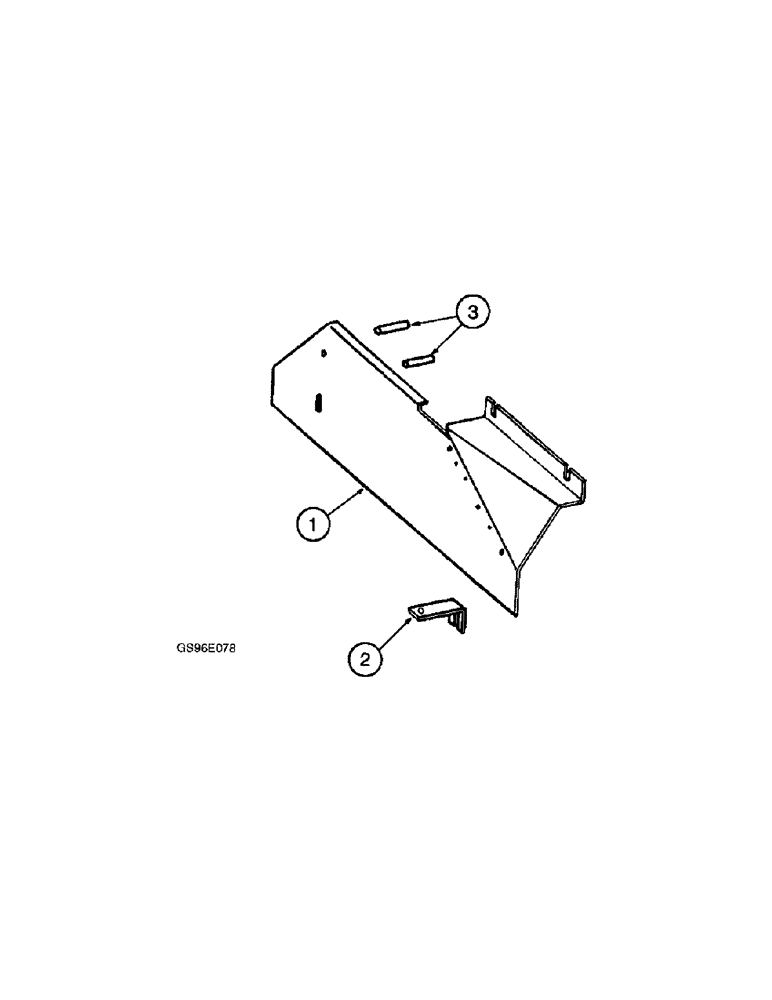

Запчасти Case IH INTERNATIONAL (4-22[A]) - DRIVE SHIELDS, AUGER (12) - MAIN FRAME

1

832144C1

SHIELD

- auger drive, right-hand

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

2

832188C1

SUPPORT

- shield front

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

1шт.

3

468752R1

BUSHING,1/2" X-Strng Pipe x 1 5/8"

SPACER - shield rear mounting

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

6шт.

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
