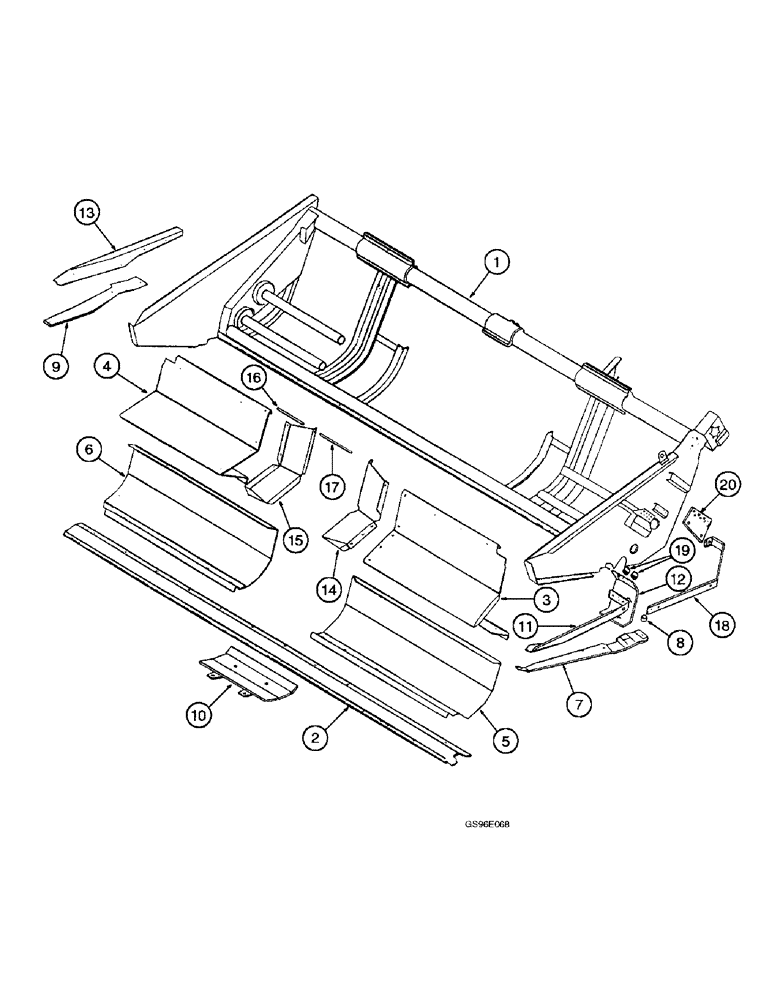

Запчасти Case IH INTERNATIONAL (4-02) - HEADER MAIN FRAME (12) - MAIN FRAME

1

825086C3

FRAME

- 12 foot header (Replaces frame 831922C3 by ordering two each of housing 825090C91 and 825091C91, four 641207R1 rings and two 826058C1 rings, also replaces frame 825086C2)

1шт.

1

825087C2

FRAME

- 14 foot header (Replaces frame 831923C3 by ordering two each of housing 825090C91 and 825091C91, four 641207R1 rings and two 826058C1 rings)

1шт.

1

823518C3

FRAME - 16 foot header (Replaces frame 823518C2)

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

6шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

7шт.

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch (Replaces washer 460908R1)

1шт.

2

830449C1

GUARD

- lower stone, 12 foot header

1шт.

2

830450C1

GUARD

- lower stone, 14 foot header

1шт.

2

823520C1

GUARD

- lower stone, 16 foot header

1шт.

412-716

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT - carriage, 7/16 NC x 1 inch, grade 2, ten used with 12 foot, twelve used with 14 foot, fourteen used with 16 foot (Replaces bolt 18421R1)

1шт.

271501

SOCKET

NUT - hex, 7/16 inch NC, one per bolt 18421R1

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , 1 per bolt 18421R1 7/16"

1шт.

495-81011

WASHER,0.47" ID x 1.25" OD x 0.12" Thk

- flat, 15/32 x 1-1/4 x 1/8 inch, one per bolt 18421R1 (Replaces washer 893862R1)

1шт.

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16 inch NC, one per bolt 18421R1 (Replaces nut 9413947)

1шт.

3

832092C1

ASSEMBLY

SECTION - back, left-hand side, 12 foot header

1шт.

3

831981C1

ASSEMBLY

SECTION - back, left-hand side, 14 foot header

1шт.

3

823548C1

ASSEMBLY

SECTION - back, left-hand side, 16 foot header

1шт.

4

832093C1

ASSEMBLY

SECTION - back, right-hand side, 12 foot header

1шт.

4

831982C1

ASSEMBLY

SECTION - back, right-hand side, 14 foot header

1шт.

4

823549C1

ASSEMBLY

SECTION - back, right-hand side, 16 foot header

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch (Replaces bolt 598803R1)

6шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

5

832094C1

ASSEMBLY

SECTION - bottom, left-hand side, 12 foot header

1шт.

5

831977C1

ASSEMBLY

SECTION - bottom, left-hand side, 14 foot header

1шт.

5

823550C1

ASSEMBLY

SECTION - bottom, left-hand side, 16 foot header

1шт.

6

832095C1

ASSEMBLY

SECTION - bottom, right-hand side, 12 foot header

1шт.

6

831978C1

ASSEMBLY

SECTION - bottom, right-hand side, 14 foot header

1шт.

6

823551C1

BOTTOM

SECTION - bottom, right-hand side, 16 foot header

1шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, (Replaces bolt 598801R1) Short NK, 5/16"-18 x 1/2", G5, Full Thd

10шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

26шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch (Replaces bolt 598803R1)

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

38шт.

7

831926C1

SOLE

- header left-hand side

1шт.

19058R1

BOLT - plow, 1/2 NC x 1 inch, no longer available, purchase locally 1/2"-13 x 1", G2, Full Thd

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces nut 121582) 1/2"-13, G5

1шт.

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC (Replaces nut 120238)

1шт.

8

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 ID x 7/16 inch, left-hand sole (Replaces spacer 622535R1)

1шт.

9

831534C1

SOLE

- header right-hand side

1шт.

418-2716

BOLT - plow, 7/16 NC x 1 inch (Replaces bolt 19040R1)

1шт.

434-718

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/8", Gr 5

BOLT - carriage, 7/16 NC x 1-1/8 inch (Replaces bolt 609120R1)

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

1шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

2шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 120383) 7/16"

2шт.

10

831584C1

SHOE

- skid, five used on 12 foot header, six used on 14 foot header, and seven used on 16 foot header

1шт.

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - carriage, 7/16 NC x 1-1/2 inch (Replaces bolts 18696R1 and 168930C1)

4шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

4шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 120383) 7/16"

4шт.

495-81011

WASHER,0.47" ID x 1.25" OD x 0.12" Thk

- flat, 15/32 x 1-1/4 x 1/8 inch (Replaces washer 893862R1)

4шт.

11

830683C1

SUPPORT

- header left-hand side, sole front

1шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch (Replaces bolt 466972R1)

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

12

823185C1

SUPPORT

- header left-hand side, sole rear

1шт.

19059R1

PLOW BOLT,#3, 1/2" - 13 x 1 1/4", Gr 2

BOLT - flat head square neck, 1/2 NC x 1-1/4 inch

2шт.

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

13

829025C2

SUPPORT

- stiffener, right-hand side

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Replaces bolt 180122) Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch (Replaces bolt 598809R1)

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

1шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

5шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

14

832060C1

DEFLECTOR

- crop, left-hand

1шт.

15

832061C1

DEFLECTOR

- crop, right-hand

1шт.

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, (Replaces bolt 598801R1) Short NK, 5/16"-18 x 1/2", G5, Full Thd

12шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

498-81001

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 3/64 inch, hardened (Replaces washer 23050R1)

12шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

14шт.

16

832338C1

PIPE

- crop deflector stiffener

2шт.

17

832334C1

STUD

- stiffener pipe mounting

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

18

832008C2

SUPPORT

- knife drive shield

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(Replaces bolt 180179) Hex, 1/2"-13 x 1 3/4", G5

3шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

19

55754D

SPACER,1/2" X-Strng Pipe x 5/8"

- support, used with headers built prior to serial no. 902

2шт.

19

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 ID x 1/2 inch, support, used with headers having serial no. 902 and after

2шт.

20

823796C1

BAR

- reel lift cylinder anchor

4шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces bolt 180173) Hex, 1/2"-13 x 1", G5, Full Thd

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

8шт.
