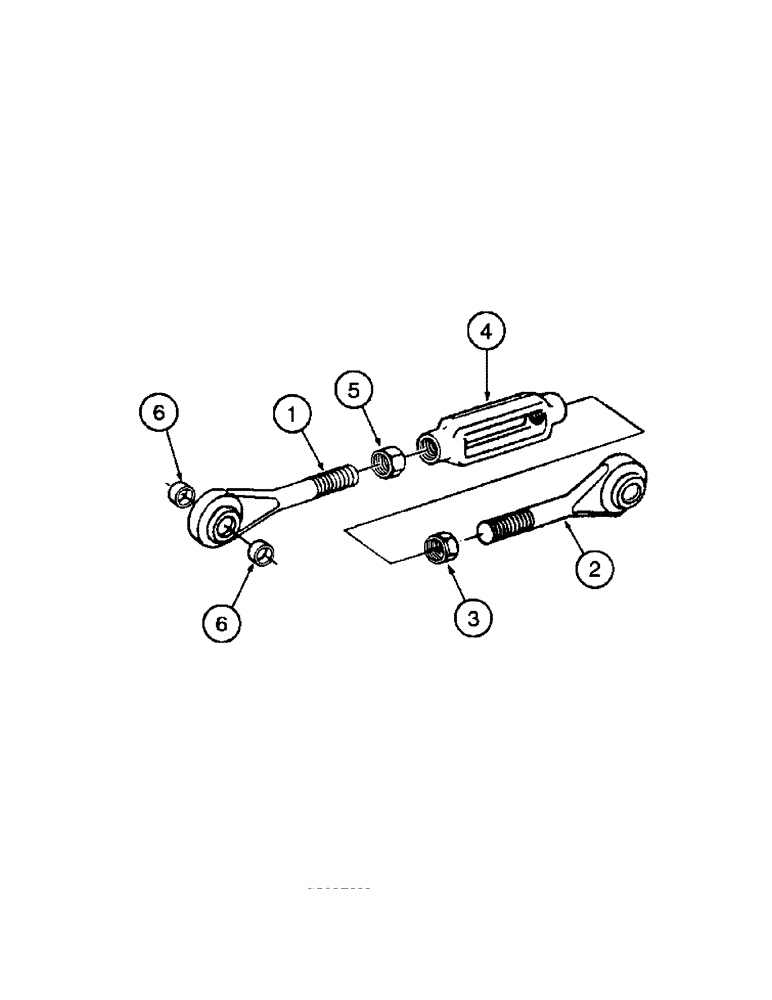

Запчасти Case IH INTERNATIONAL (3-72) - HEADER CENTER LINK (12) - MAIN FRAME

1

829524C1

LINK

- header center rear, 3-5/16 inch, left-hand thread, prior to serial no. 3101

1шт.

1

832463C1

LINK

- header center rear, 15-3/4 inch, left-hand thread, serial no. 3101 and after

1шт.

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

Headers built 1980 and later (Replaces bolt 24895R1) Hex, 3/4"-10 x 4 1/2", G8

1шт.

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Headers built 1976 to 1980 (Replaces bolt 271777) Hex, 3/4"-10 x 3 1/2", G5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

1шт.

2

829525C1

LINK

- header center front, 13-5/16 inch, right-hand thread, prior to serial no. 3101

1шт.

2

832328C1

LINK

- header center front, 11-1/2 inch, right-hand thread, serial no. 3101 and after

1шт.

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

(Replaces bolt 271777) Hex, 3/4"-10 x 3 1/2", G5

1шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

1шт.

3

425-1414

JAM NUT,Jam, 7/8"-9, G5

RH thread (Replaces nut 426898) Jam, 7/8"-9, G5

1шт.

4

595992R1

TURNBUCKLE

- connecting eye-bolt

1шт.

5

129-387

NUT,Jam, 7/8"-9, G5, LH

- hex lock, 7/8 inch NC, left-hand thread (Replaces nut 22852R1)

1шт.

6

825019C1

BUSHING

- support, link spacer, headers built 1980 and after

2шт.
