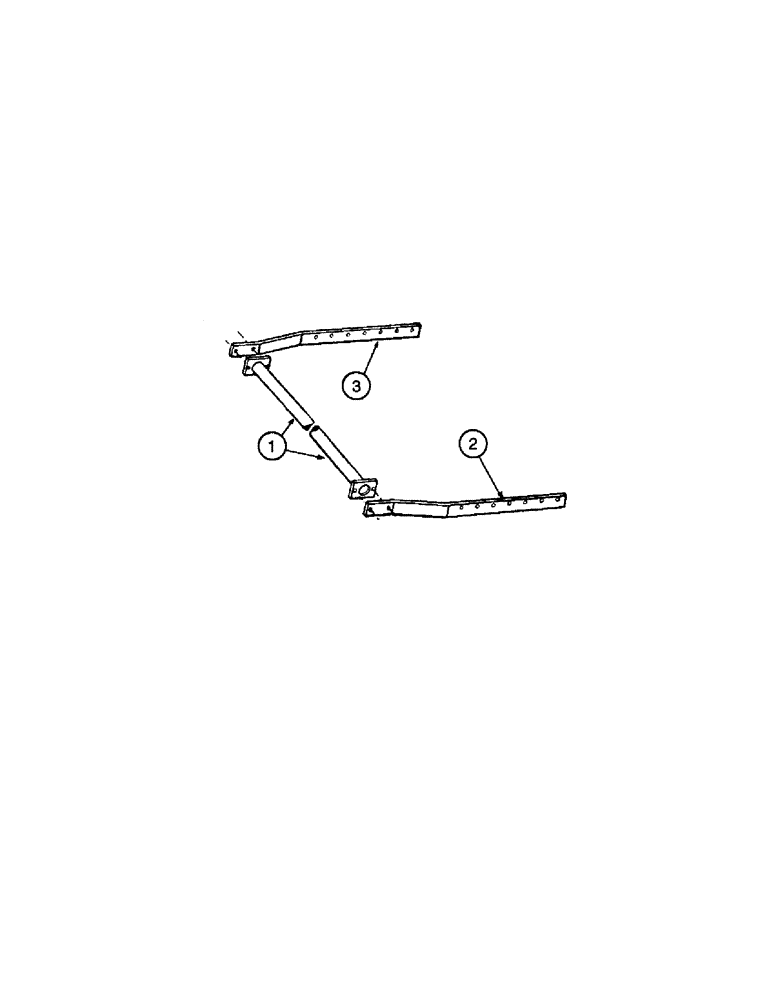

Запчасти Case IH INTERNATIONAL (3-64) - LEAN BAR (12) - MAIN FRAME

1

599425R1

BAR

- lean, 10-1/2 foot header

1шт.

1

824053C1

BAR

- lean, 12-1/2 foot header

1шт.

1

826283C1

BAR

- lean, 14-1/2 foot header

1шт.

1

826284C1

BAR

- platform lean, 16-1/2 foot header

1шт.

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Replaces bolt 180126) Hex, 3/8"-16 x 1 1/2", G5

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

4шт.

2

826279C1

BAR

- lean bar support, left-hand

1шт.

3

826280C1

BAR

- lean bar support, right-hand

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Replaces bolt 180177) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

4шт.
