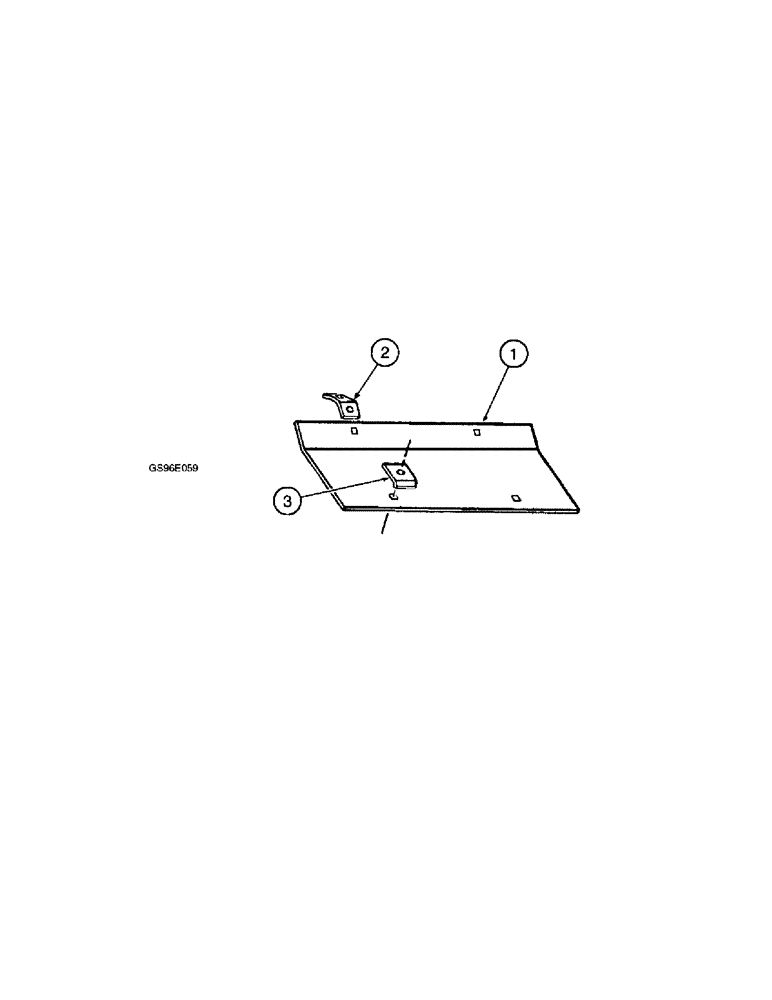

Запчасти Case IH INTERNATIONAL (3-64[B]) - SKID SOLE (12) - MAIN FRAME

1

824783C1

SOLE

- skid shoe

1шт.

2

824784C1

SUPPORT

- skid shoe

2шт.

111-422

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G2

BOLT, CARRIAGE, (Replaces bolt 18698R1) Short NK, 7/16"-14 x 2", G2

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

129-104

NUT,7/16"-14, G5

(Replaces nut 271501) 7/16"-14, G5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

2шт.

3

824785C1

CLAMP

- sole support

2шт.

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch (Replaces bolt 466971R1)

2шт.

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch (Replaces washer 21375R1)

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.
