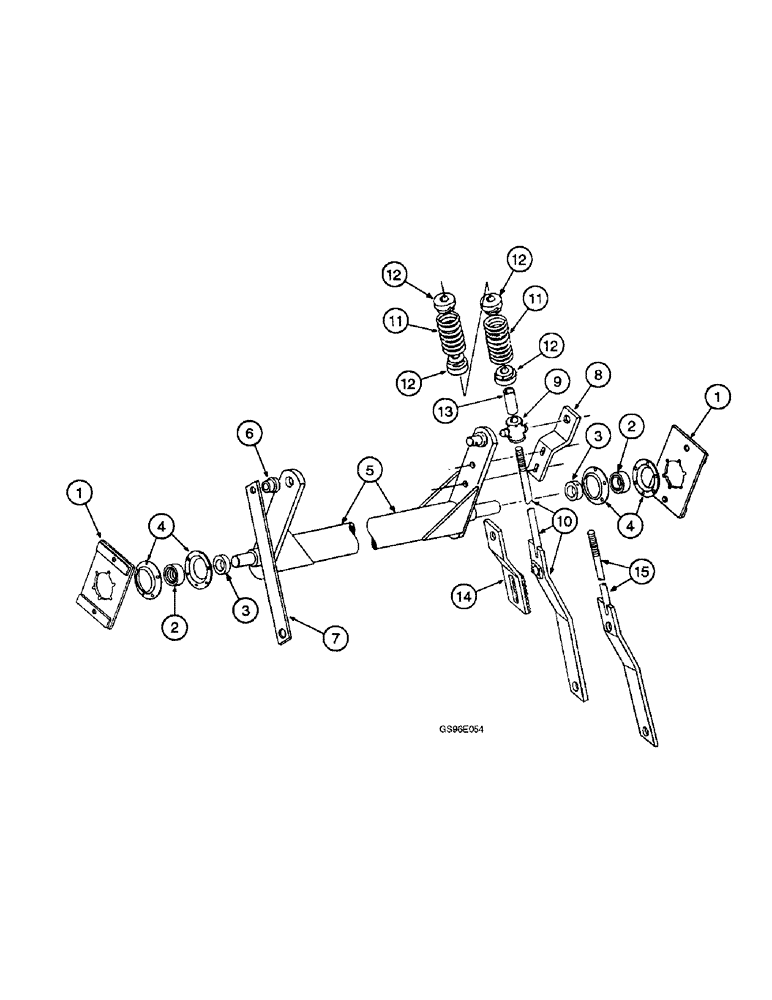

Запчасти Case IH INTERNATIONAL (3-52) - FLOAT TRANSFER AND LOCKOUT ATTACHMENT, SERIAL NUMBER 2501 THUR 3100 (12) - MAIN FRAME

1

831803C1

SUPPORT

- float pivot

2шт.

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

329-108

NUT,1/2"-13, G8

(Replaces nut 25526R1) 1/2"-13, G8

4шт.

828388C1

BELLEVILLE WASHER

- Belleville, 1/2 inch

4шт.

2

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

- auger, float pivot

2шт.

3

517645R11

COLLAR

ASSEMBLY - locking

2шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - hex socket headless, 3/8 NC x 3/8 inch, cup point (Replaces screw 102592)

2шт.

4

825620C1

RETAINER

FLANGE - bearing

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

12шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

12шт.

5

831806C1

PIVOT

- float

1шт.

6

595978R1

BUSHING

- connecting bar pivot

1шт.

7

831843C1

BAR

- connecting

1шт.

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch (Replaces bolt 271724)

1шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

8

831716C1

SUPPORT

- transfer and lockout

1шт.

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch (Replaces bolt 466972R1)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces nut 120378) 1/2"-13, G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (Replaces washer 120384) 1/2"

2шт.

9

831717C1

TRUNNION

- transfer and lockout

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

10

831758C1

ROD

- float transfer, used with hay and grain

1шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

2шт.

11

608347R1

SPRING

- float transfer, used with hay and grain

2шт.

12

608348R1

RETAINER

- spring, used with hay and grain

1шт.

13

828443C1

SPACER

- float transfer rod, used with hay and grain

1шт.

14

831851C1

LOCK

- float, used with hay and grain

1шт.

1978738C1

HAIR PIN COTTER

quick-attach (Replaces pin 599744R1)

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex, 3/4 NC x 2-1/2 inch, used when cutting grain only (Replaces bolt 271773)

1шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (Replaces washer 131046) 3/4"

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

1шт.

15

831848C1

ROD

- float lockout, grain only

1шт.

129-108

NUT,3/4"-10, G5

(Replaces nut 220086) 3/4"-10, G5

1шт.
