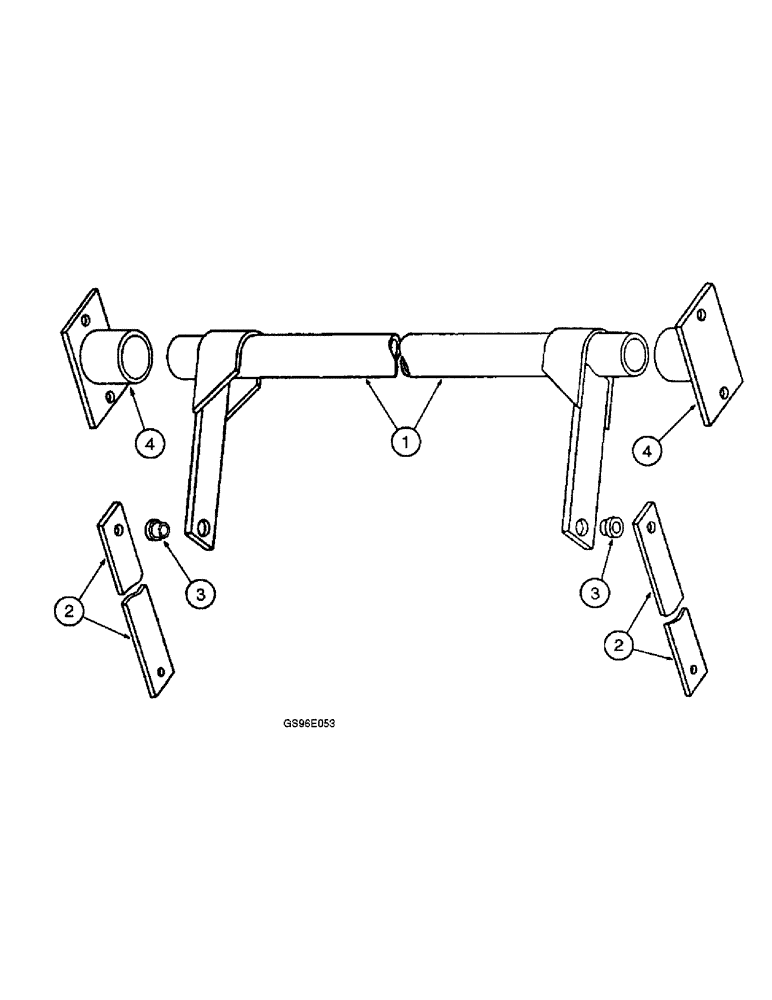

Запчасти Case IH INTERNATIONAL (3-50) - FLOAT LOCKOUT ATTACHMENT, PRIOR TO SERIAL NUMBER 2501 (12) - MAIN FRAME

1

830135C1

PIVOT

- float lock

1шт.

2

830139C1

BAR

- connecting

2шт.

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch (Replaces bolt 271724)

2шт.

129-107

NUT,5/8"-11, G5

(Replaces nut 124589) 5/8"-11, G5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Replaces washer 121574) 5/8"

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

3

595978R1

BUSHING

- pivot

2шт.

4

830132C1

SUPPORT

- float pivot

2шт.

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

(Replaces bolt 24860R1) Hex, 1/2"-13 x 1", G8, Full Thd

4шт.

329-108

NUT,1/2"-13, G8

(Replaces nut 25526R1) 1/2"-13, G8

4шт.

828388C1

BELLEVILLE WASHER

- Belleville, 1/2 inch

4шт.
