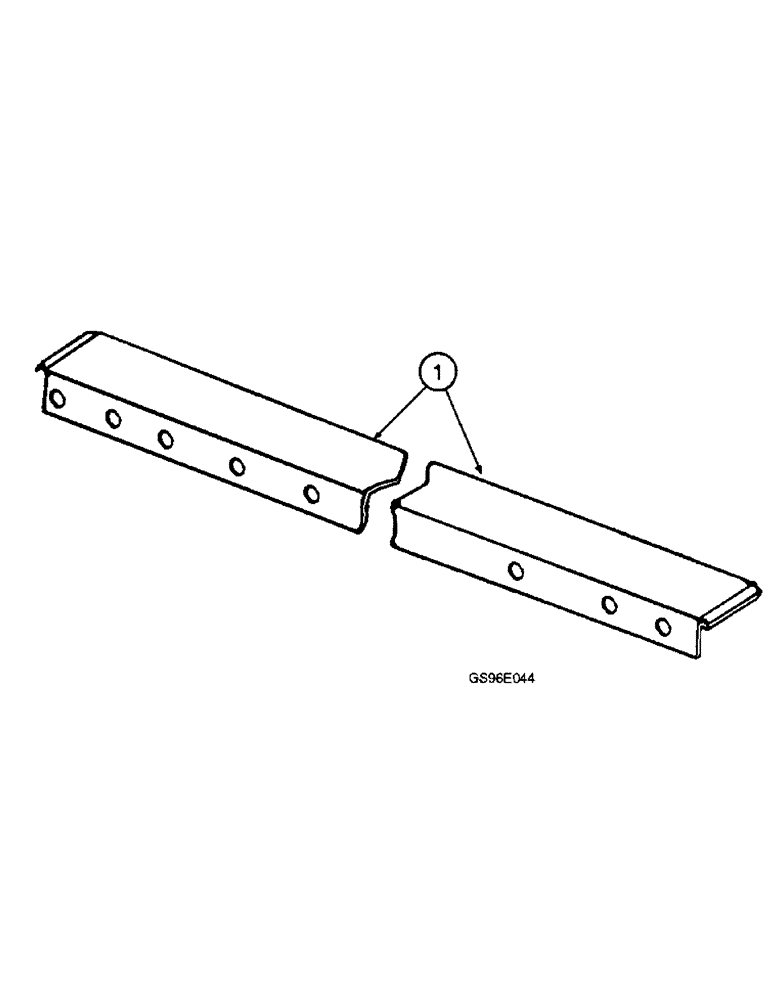

Запчасти Case IH INTERNATIONAL (3-32) - APRON SUPPORT, 24.5 FOOT HEADERS (12) - MAIN FRAME

1

830076C1

ANGLE

- apron front support, left-hand, 24-1/2 foot header, 93-5/16 inch long, used with headers prior to serial no. 3101

1шт.

1

830077C1

ANGLE

- apron front support, right-hand, 24-1/2 foot headers, 129-5/16 inch long, used with headers prior to serial no. 3101

1шт.

1

830740C1

ANGLE

- apron front support, left-hand, 24-1/2 foot headers, serial no. 3101 and after

1шт.

1

830741C1

ANGLE

- apron front support, right-hand, 24-1/2 foot headers, serial no. 3101 and after

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

14шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 120382) 3/8"

14шт.
