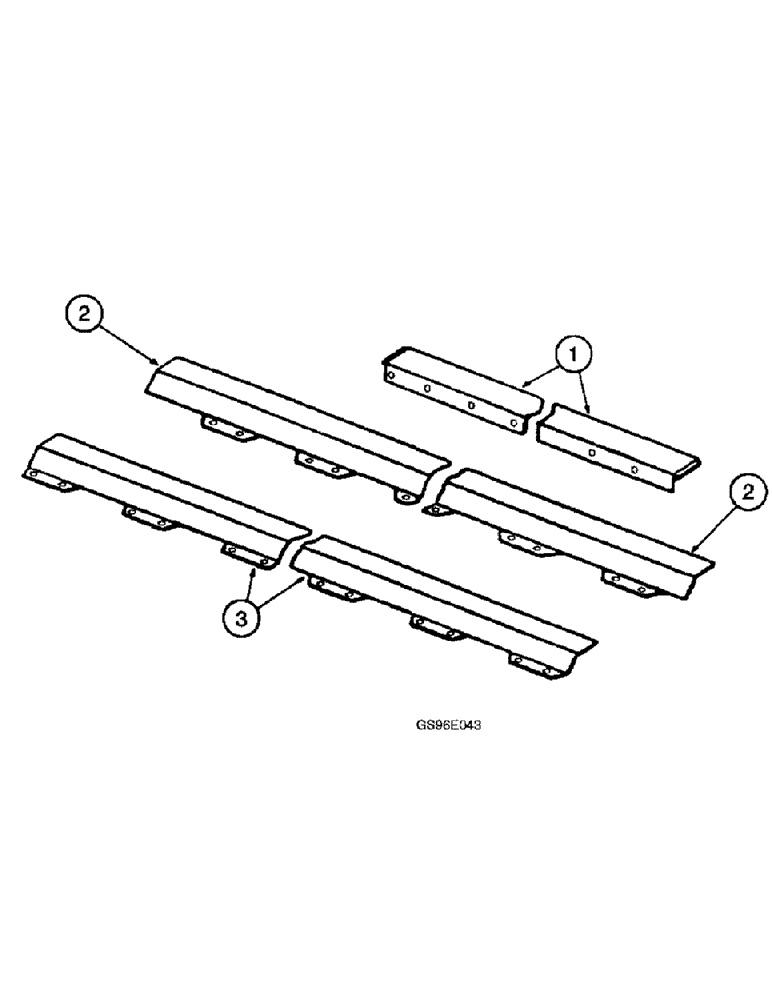

Запчасти Case IH INTERNATIONAL (3-30) - APRON SUPPORTS & SHIELDS, 10.5 FOOT HEADERS BUILT PRIOR TO 1979, 12.5, 14.5, 16.5 & 19.5 FOOT HEADER (12) - MAIN FRAME

1

824657C1

ANGLE

- apron front support, left-hand, 10-1/2 foot, 30-5/16 inch long (Shown)

1шт.

1

824658C1

ANGLE

- apron front support, right-hand, 10-1/2 foot, 30-5/16 inch long

1шт.

1

824657C1

ANGLE

- apron front support, left-hand,12-1/2 foot, 30-5/16 inch long

1шт.

1

824660C1

ANGLE

- apron front support, right-hand, 12-1/2 foot, 54-5/16 inch long

1шт.

1

824569C1

ANGLE

- apron front support, left-hand, 14-1/2 foot, 42-5/16 inch long

1шт.

1

824572C1

ANGLE

- apron front support, right-hand, 14-1/2 foot, 66-5/16 inch long (Shown)

1шт.

1

824659C1

ANGLE

- apron front support, left-hand, 16-1/2 foot, 54-5/16 inch long

1шт.

1

829312C1

ANGLE - apron front support, right-hand, 16-1/2 foot, 78-5/16 inch long

1шт.

1

824571C1

ANGLE

- apron front support, left-hand, 19-1/2 foot, 66-5/16 inch long

1шт.

1

829313C1

ANGLE

- apron front support, right-hand, 19-1/2 foot, 102-5/16 inch long

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4 used with 10-1/2 foot, 6 used with 12-1/2 foot, 8 used with 14-1/2 foot, 10 used with 16-1/2 foot and 13 used with 19-1/2 foot (Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 1 per bolt (Replaces washer 120382) 3/8"

1шт.

2

829551C1

SHIELD

- apron, left-hand, 10-1/2 and 12-1/2 foot headers

1шт.

2

829553C1

SHIELD

- apron, left-hand, 14-1/2 foot headers

1шт.

2

829556C1

SHIELD

- apron, left-hand, 16-1/2 foot headers

1шт.

3

829552C1

SHIELD

- apron, right-hand, 10-1/2 foot headers

1шт.

3

829554C1

SHIELD

- apron, right-hand, 12-1/2 foot headers

1шт.

3

829555C1

SHIELD

- apron, right-hand, 14-1/2 foot headers

1шт.

3

829557C1

SHIELD

- apron, right-hand, 16-1/2 foot headers

1шт.

1

824569C1

ANGLE

- apron front support, left-hand, 12-1/2 foot (Shown)

1шт.

1

824570C1

ANGLE

- apron front support, right-hand, 12-1/2 foot

1шт.

1

824659C1

ANGLE

- apron front support, left-hand, 14-1/2 foot

1шт.

1

824660C1

ANGLE

- apron front support, right-hand, 14-1/2 foot

1шт.

1

824571C1

ANGLE

- apron front support, left-hand, 16-1/2 foot

1шт.

1

824572C1

ANGLE

- apron front support, right-hand, 16-1/2 foot

1шт.

1

824661C1

ANGLE

- apron front support, left-hand, 19-1/2 foot

1шт.

1

824662C1

ANGLE

- apron front support, right-hand, 19-1/2 foot

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4 used with 10-1/2 foot, 6 used with 12-1/2 foot, 8 used with 14-1/2 foot, 10 used with 16-1/2 foot, 13 used with 19-1/2 foot (Replaces bolt 180120) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 1 per bolt (Replaces washer 120382) 3/8"

1шт.

2

829553C1

SHIELD

- apron, left-hand, 12-1/2 foot headers

1шт.

2

829556C1

SHIELD

- apron, left-hand, 14-1/2 foot headers

1шт.

2

823161C1

SHIELD

- apron, left-hand, 16-1/2 foot headers

1шт.

3

823160C1

SHIELD

- apron, right-hand, 12-1/2 foot headers

1шт.

3

829554C1

SHIELD

- apron, right-hand, 14-1/2 foot headers

1шт.

3

829555C1

SHIELD

- apron, right-hand, 16-1/2 foot headers

1шт.
