Заказать запчасти

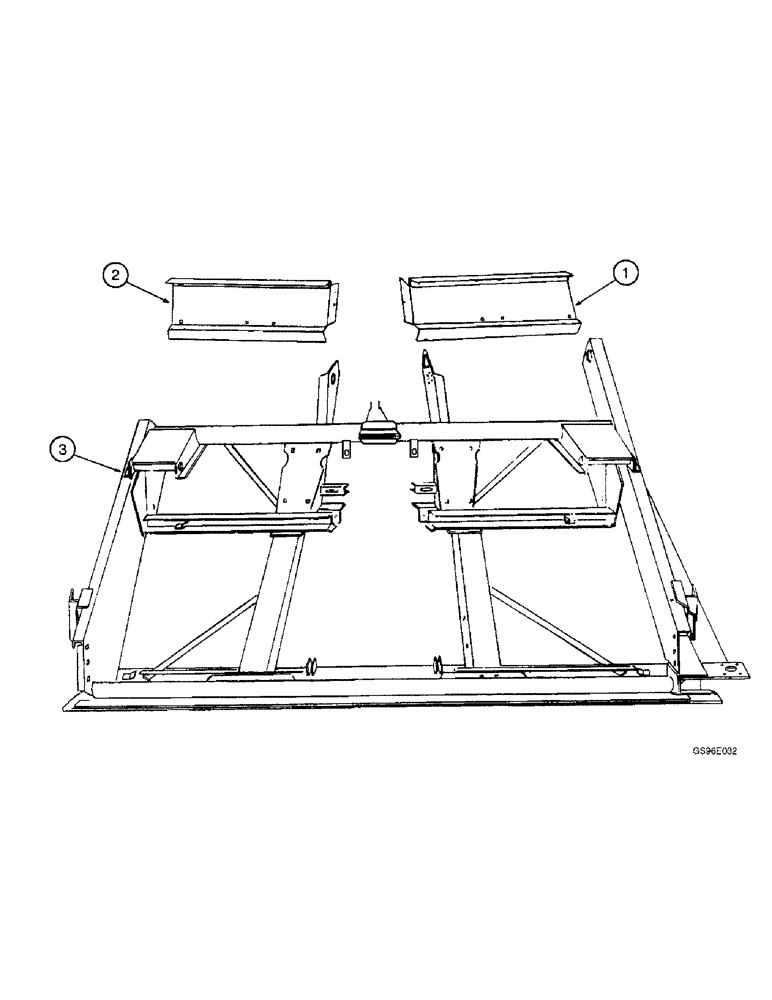

Запчасти Case IH INTERNATIONAL (3-06) - HEADER MAIN FRAME 12.5, 14.5, 16.5, 19.5 AND 24.5 FOOT HEADERS, SERIAL NUMBERS 3101 AND AFTER (12) - MAIN FRAME
№
Артикул
Название
Примечание
Количество
1
829306C1
SIDE - header, left-hand, 12-1/2 foot, no longer available
1шт.
1
829308C1
SIDE ASSY.
SIDE - header, left-hand, 14-1/2 foot
1шт.
1
829310C1
SIDE ASSY.
SIDE - header, left-hand, 16-1/2 foot
1шт.
1
831290C1
SIDE ASSY.
SIDE - header, left-hand, 19-1/2 foot
1шт.
1
830743C1
SIDE ASSY.
SIDE - header, left-hand, 24-1/2 foot
1шт.
2
823171C1
SIDE ASSY.
SIDE - header, right-hand, 12-1/2 foot
1шт.
2
829305C1
SIDE - header, right-hand, 14-1/2 foot, no longer available
1шт.
2
829307C1
SIDE ASSY.
SIDE - header, right-hand, 16-1/2 foot
1шт.
2
831291C1
SIDE ASSY.
SIDE - header, right-hand, 19-1/2 foot
1шт.
2
830744C1
SIDE ASSY.
SIDE - header, right-hand, 24-1/2 foot
1шт.
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
BOLT - carriage, 5/16 NC x 3/4 inch, Fourteen used with 12-1/2; 14-1/2 and 16-1/2 foot; Sixteen used with 19-1/2 foot; Twenty-six used with 24-1/2 foot (Replaces bolt 598802R1)
1шт.
434-58
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
BOLT CARRIAGE, , four used with 12-1/2 foot; six used with 14-1/2 foot; eight used with 16-1/2 foot; ten used with 19-1/2 foot; fourteen used with 24-1/2 foot (Replaces bolt 598801R1) Short NK, 5/16"-18 x 1/2", G5, Full Thd
1шт.
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC, use one per bolt
1шт.
495-81119
WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk
- flat, 11/32 x 1-1/4 x 1/16 inch, one per bolt 434-58
1шт.
3
823193C94
FRAME
ASSEMBLY - header, 12-1/2 foot (Replaces frame assembly 823193C93)
1шт.
3
823194C94
FRAME
ASSEMBLY - header, 14-1/2 foot (Replaces frame assembly 823194C93)
1шт.
3
823195C95
FRAME
ASSEMBLY - header, 16-1/2 foot (Replaces frame assembly 823195C94)
1шт.
3
823196C95
FRAME
ASSEMBLY - header, 19-1/2 foot (Replaces frame assembly 823196C94)
1шт.
3
823197C94
FRAME
ASSEMBLY - header, 24-1/2 foot, 1979 season and prior, also order 829300C3 support (Replaces frame assembly 823197C93)
1шт.
830235C1
PRODUCT GRAPHIC
DECAL - Caution, apron tightener
1шт.
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
(Replaces bolt 180175) Hex, 1/2"-13 x 1 1/4", G5, Full Thd
3шт.
129-105
NUT,Hex, 1/2" - 13, Gr 5
(Replaces nut 120378) 1/2"-13, G5
3шт.
192-23
LOCK WASHER,1/2"
WASHER, LOCK, (Replaces washer 120384) 1/2"
3шт.
Выбрано товаров: 23
